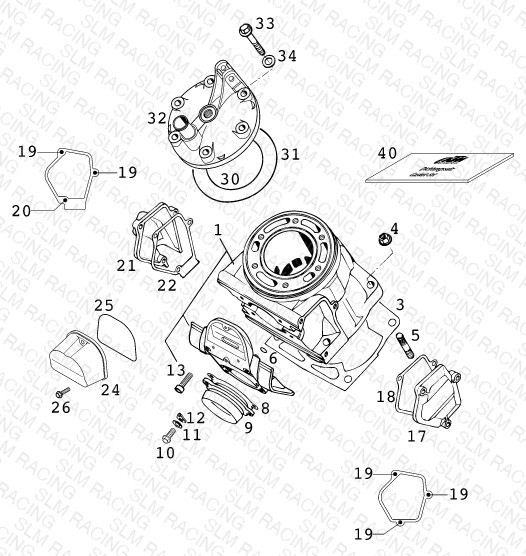

CYLINDER
Parts (33)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 54630405144 CYLINDER CPL.W.FLANGE 300'98 | CYLINDER CPL.W.FLANGE 300'98 | 1 | — | Obsolete | View Details |
| 1 | 54730005244 CYLINDER CPL.W.FLANGE 380'98 | CYLINDER CPL.W.FLANGE 380'98 | 1 | — | Obsolete | View Details |
| 3 | 54630030102 CYLINDER BASE GASKET 0,20MM'96 | CYLINDER BASE GASKET 0,20MM'96 | — | $6.92 | Available | 1 |
| 3 | 54630030104 CYLINDER BASE GASKET 0,40MM'98 | CYLINDER BASE GASKET 0,40MM'98 | — | $6.92 | Available | 1 |
| 3 | 54630030105 CYLINDER BASE GASKET 0,50MM'96 | CYLINDER BASE GASKET 0,50MM'96 | — | $7.14 | Available | 1 |
| 3 | 54630030107 CYLINDER BASE GASKET 0,75MM'96 | CYLINDER BASE GASKET 0,75MM'96 | — | $9.56 | Available | 1 |
| 4 | 54630044000 COLLAR NUT M10 WS=13 | COLLAR NUT M10 WS=13 | 1 | $1.99 | Available | 1 |
| 5 | 0835100351 STUD DIN0835-M10X35 | STUD DIN0835-M10X35 | 4 | $6.15 | Available | 4 |
| 5 | 0835100403 STUD DIN0835-M10X40 | STUD DIN0835-M10X40 | 4 | — | Obsolete | View Details |
| 6 | 0770116241 O-RING 11,3 X2,4 SILICON | O-RING 11,3 X2,4 SILICON | 4 | $3.99 | Available | 4 |
| 8 | 54630046000 EXHAUST FLANGE GASKET | EXHAUST FLANGE GASKET | 1 | $11.87 | Available | 1 |
| 9 | 54605073000 EXHAUST FLANGE | EXHAUST FLANGE | 1 | — | Obsolete | View Details |
| 10 | 0015060163 HH COLLAR SCREW M 6X16 WS=8 | HH COLLAR SCREW M 6X16 WS=8 | 3 | $3.99 | Available | 3 |
| 11 | 0137060000 SPRING WASHER DIN0137-B 6 | SPRING WASHER DIN0137-B 6 | 6 | — | Obsolete | View Details |
| 12 | 51005074000 RETAINING PLATE | RETAINING PLATE | 2 | $3.99 | Available | 2 |
| 13 | 0912060303 AH SCREW DIN0912-M 6X30 | AH SCREW DIN0912-M 6X30 | 4 | $2.99 | Available | 4 |
| 17 | 54637105000 CONTROL COVER L/S | CONTROL COVER L/S | 1 | — | Obsolete | View Details |
| 18 | 54637106000 GASKET FOR SIDE COVER | GASKET FOR SIDE COVER | 1 | $6.15 | Available | 1 |
| 19 | 0912050123 AH SCREW DIN0912-M 5X12 | AH SCREW DIN0912-M 5X12 | 1 | $2.99 | Available | 1 |
| 20 | 0912050303 AH SCREW DIN0912-M 5X30 | AH SCREW DIN0912-M 5X30 | 1 | $1.99 | Available | 1 |
| 21 | 54637005000 CONTROL COVER R/S | CONTROL COVER R/S | 1 | — | Obsolete | View Details |
| 22 | 54637006100 GASKET FOR CONTROL COVER | GASKET FOR CONTROL COVER | 1 | $8.57 | Available | 1 |
| 24 | 54737010000 FLANGE COVER KTC '98 | FLANGE COVER KTC '98 | 1 | — | Obsolete | View Details |
| 25 | 0770690020 O-RING 69,00X2,00 NBR 70 | O-RING 69,00X2,00 NBR 70 | 1 | $6.15 | Available | 1 |
| 26 | 0015050203 HH COLLAR SCREW M 5X20 WS=8 | HH COLLAR SCREW M 5X20 WS=8 | 1 | $2.99 | Available | 1 |
| 30 | 0770780021 0-RING 78,00X2,00 SILICON | 0-RING 78,00X2,00 SILICON | 1 | — | Obsolete | View Details |
| 30 | 0770840021 0-RING 84,00X2,00 SILICON | 0-RING 84,00X2,00 SILICON | 1 | $6.15 | Available | 1 |
| 31 | 0770114020 O-RING 114,00X2,00 SILICONE | O-RING 114,00X2,00 SILICONE | 1 | $8.90 | Available | 1 |
| 32 | 54630306600 CYLINDER HEAD "3001" 300'96 | CYLINDER HEAD "3001" 300'96 | 1 | — | Obsolete | View Details |
| 32 | 54730006100 *CYLIND. HEAD "3602"360/380'97 | *CYLIND. HEAD "3602"360/380'97 | 1 | — | Obsolete | View Details |
| 33 | 56530079000 HH COLLAR SCREW M 8X44 WS13 | HH COLLAR SCREW M 8X44 WS13 | 3 | $3.99 | Available | 3 |
| 34 | 56530080000 CU-SEAL RING 8 X 16 X 1 | CU-SEAL RING 8 X 16 X 1 | 6 | $2.99 | Available | 6 |
| 40 | 54630097000 GASKET SET CYLINDER '96-'01 | GASKET SET CYLINDER '96-'01 | 1 | $105.92 | Obsolete | View Details |
