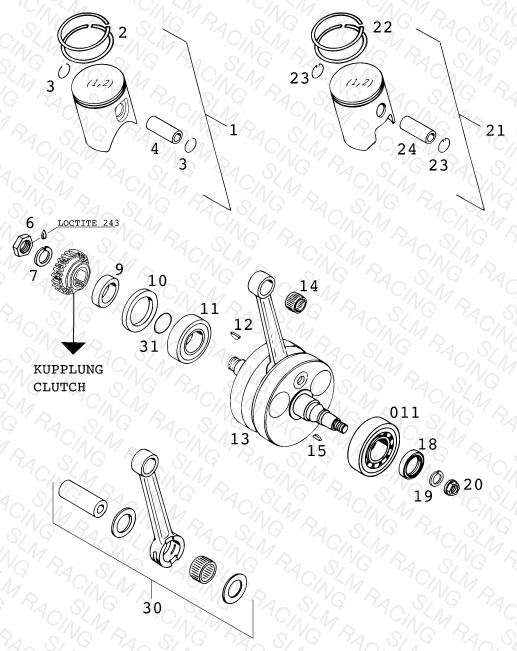

CRANKSHAFT, PISTON
Parts (36)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 54630207000 I PISTON I CPL 66,4MM 250 2000 | PISTON I CPL 66,4MM 250 2000 | 1 | $152.69 | Obsolete | View Details |
| 1 | 54630207000 II PISTON II CPL. 66,4MM 250 2000 | PISTON II CPL. 66,4MM 250 2000 | 1 | $184.14 | Obsolete | View Details |
| 1 | 54630207100 I PISTON I CPL. 66,4MM 250 2000 | PISTON I CPL. 66,4MM 250 2000 | 1 | $231.22 | Obsolete | View Details |
| 1 | 54630207100 II PISTON II CPL. 66,4MM 250 2000 | PISTON II CPL. 66,4MM 250 2000 | 1 | $228.63 | Obsolete | View Details |
| 1 | 54730007300 I PISTON I CPL. 78,0MM 380'99 | PISTON I CPL. 78,0MM 380'99 | 1 | $344.99 | Obsolete | View Details |
| 1 | 54730007300 II PISTON II CPL. 78,0MM 380'99 | PISTON II CPL. 78,0MM 380'99 | 1 | $377.99 | Obsolete | View Details |
| 2 | 54630232000 SQUARE RING 66,4MM 250 2000 | SQUARE RING 66,4MM 250 2000 | 1 | $46.41 | Available | 1 |
| 2 | 54730032000 SQUARE R. 78,0X1,25 360/380 CC | SQUARE R. 78,0X1,25 360/380 CC | 2 | $51.96 | Obsolete | View Details |
| 3 | 54030074000 WIRE LOCK RING C18X1,5 | WIRE LOCK RING C18X1,5 | 2 | $3.99 | Available | 2 |
| 4 | 54630233000 PISTON PIN 18X55,8 250 2000 | PISTON PIN 18X55,8 250 2000 | 1 | $20.69 | Obsolete | View Details |
| 4 | 54730033000 PISTON PIN 18 X 48 | PISTON PIN 18 X 48 | 1 | $55.89 | Obsolete | View Details |
| 6 | 54630029000 HEX.NUT L/SH M18X1,5 | HEX.NUT L/SH M18X1,5 | 1 | $12.53 | Available | 1 |
| 7 | 58132072000 LOCK WASHER VSK 18 | LOCK WASHER VSK 18 | 1 | $2.99 | Available | 1 |
| 9 | 54630016400 SPACER SLEEVE 28X38X11,5 | SPACER SLEEVE 28X38X11,5 | 1 | $21.79 | Obsolete | View Details |
| 10 | 0760385273 SHAFT SEAL RING 38X52X7BTSL | SHAFT SEAL RING 38X52X7BTSL | 1 | $25.95 | Available | 1 |
| 11 | 0625622064 BALL BEARING 62206.803107 | BALL BEARING 62206.803107 | 1 | $51.79 | Obsolete | View Details |
| 11 | 56530123100 CYLIND.ROLL.BEARING | CYLIND.ROLL.BEARING | 1 | $94.38 | Obsolete | View Details |
| 12 | 6946005 WOODRUFF KEY 5X6,5 HARDED | WOODRUFF KEY 5X6,5 HARDED | 1 | $2.99 | Available | 1 |
| 13 | 54630218000 CRANKSHAFT STROKE72 250SX '00 | CRANKSHAFT STROKE72 250SX '00 | 1 | $511.16 | Obsolete | View Details |
| 13 | 54630218100 CRANKSHAFT STR.72 ''250'' '20 | CRANKSHAFT STR.72 ''250'' '20 | 1 | $498.19 | Obsolete | View Details |
| 13 | 54630318400 CRANKSHAFT STROKE 73 ''300'' | CRANKSHAFT STROKE 73 ''300'' | 1 | $748.89 | Obsolete | View Details |
| 13 | 54730018500 CRANKSHAFT STROKE 77 ''380'' | CRANKSHAFT STROKE 77 ''380'' | 1 | $1056.74 | Obsolete | View Details |
| 14 | 54430034000 NEEDLE BEARING KBK 18X22X20 | NEEDLE BEARING KBK 18X22X20 | 1 | $24.63 | Available | 1 |
| 15 | 0888030050 WOODRUFF KEY DIN6888-3X5X13 | WOODRUFF KEY DIN6888-3X5X13 | 1 | $2.99 | Available | 1 |
| 18 | 0760253570 SHAFT SEAL RING 25X35X7 BTSL | SHAFT SEAL RING 25X35X7 BTSL | 1 | $20.23 | Available | 1 |
| 19 | 50230029012 LOCKING RING VSK 12 | LOCKING RING VSK 12 | 1 | $2.99 | Available | 1 |
| 20 | 49030021000 COLLAR NUT M12X1 R/S | COLLAR NUT M12X1 R/S | 1 | $10.07 | Obsolete | View Details |
| 21 | 54630307400 I PISTON I CPL. 72,0MM 300'96 | PISTON I CPL. 72,0MM 300'96 | 1 | $404.79 | Obsolete | View Details |
| 21 | 54630307400 II PISTON II CPL. 72,0MM 300'96 | PISTON II CPL. 72,0MM 300'96 | 1 | $404.79 | Obsolete | View Details |
| 22 | 54630332000 SQUARE RING 72,0X1,25 300 CC | SQUARE RING 72,0X1,25 300 CC | 2 | $41.39 | Obsolete | View Details |
| 23 | 54330074000 WIRE LOCK RING SKA 18 | WIRE LOCK RING SKA 18 | 2 | $11.43 | Available | 2 |
| 24 | 54630033000 PISTON PIN 18 X 44 | PISTON PIN 18 X 44 | 1 | $37.09 | Obsolete | View Details |
| 30 | 54630015044 CONR.REP.KIT 250/300 132MM '96 | CONR.REP.KIT 250/300 132MM '96 | 1 | $307.79 | Obsolete | View Details |
| 30 | 54630215000 CONROD REP.KIT 250 L=129MM '00 | CONROD REP.KIT 250 L=129MM '00 | 1 | $247.59 | Obsolete | View Details |
| 30 | 54730015000 CONR.REP.KIT 360/380 135MM '97 | CONR.REP.KIT 360/380 135MM '97 | 1 | $363.79 | Obsolete | View Details |
| 31 | 0770250015 O-RING 25,00X1,50 NBR 70 | O-RING 25,00X1,50 NBR 70 | 1 | $1.99 | Available | 1 |
