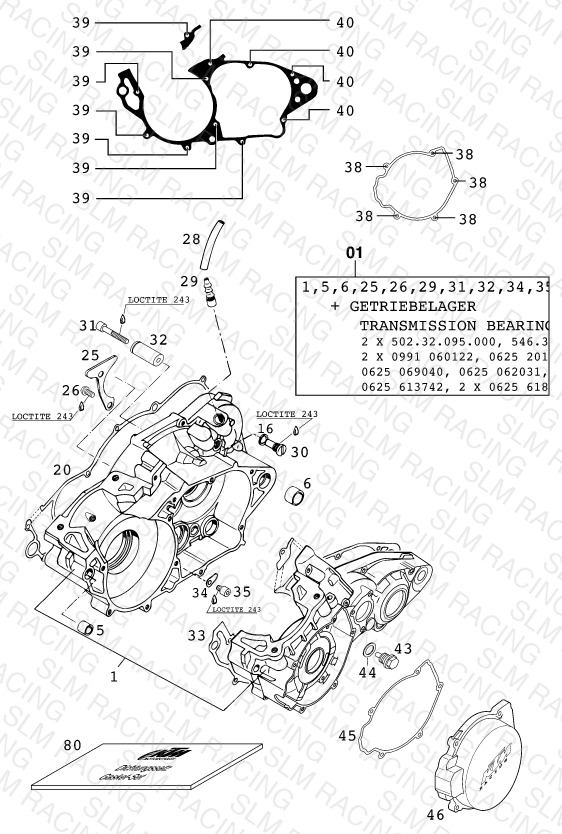

ENGINE CASE
Parts (22)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 5 | 54630027000 DOWEL BUSHING 13,8X11X12 | DOWEL BUSHING 13,8X11X12 | 1 | $8.13 | Available | 1 |
| 6 | 50130027000 DOWEL 19 X15,1X12 | DOWEL 19 X15,1X12 | 1 | — | Obsolete | View Details |
| 16 | 58038032110 CU-SEAL RING 9 X 13 X1 | CU-SEAL RING 9 X 13 X1 | 1 | — | Obsolete | View Details |
| 20 | 54630025100 CLUTCH COVER GASKET 0,5MM | CLUTCH COVER GASKET 0,5MM | 1 | $21.88 | Available | 1 |
| 25 | 54630017000 RETAINING PLATE | RETAINING PLATE | 1 | — | Obsolete | View Details |
| 26 | 0015060123 HH COLLAR SCREW M 6X12 WS=8 | HH COLLAR SCREW M 6X12 WS=8 | 3 | $3.99 | Available | 3 |
| 28 | 55007016001 PVC-HOSE 7X10 PER METER | PVC-HOSE 7X10 PER METER | — | $7.14 | Available | 1 |
| 29 | 54630022000 BLEEDER FLANGE '94 | BLEEDER FLANGE '94 | 1 | — | Obsolete | View Details |
| 30 | 54530001150 FLAT HEAD SCREW WITH PIN | FLAT HEAD SCREW WITH PIN | 1 | — | Obsolete | View Details |
| 31 | 0912060404 AH SCREW DIN0912-M 6X40 A2 | AH SCREW DIN0912-M 6X40 A2 | 1 | $2.99 | Available | 1 |
| 32 | 59033018000 BUSHING PIN 2000 | BUSHING PIN 2000 | 1 | $14.84 | Available | 1 |
| 33 | 54630039200 CASE GASKET 0,5MM 250-380'98 | CASE GASKET 0,5MM 250-380'98 | 1 | $27.71 | Available | 1 |
| 34 | 54634049000 RETAINING PLATE | RETAINING PLATE | 2 | $4.99 | Available | 2 |
| 35 | 0912060083 AH collar screw DIN 912 M6x8 | AH collar screw DIN 912 M6x8 | 1 | $2.99 | Available | 1 |
| 38 | 0015050163 HH COLLAR SCREW M 5X16 WS=8 | HH COLLAR SCREW M 5X16 WS=8 | 3 | $2.99 | Available | 3 |
| 39 | 0015060453 HH COLLAR SCREW M 6X45 WS=8 | HH COLLAR SCREW M 6X45 WS=8 | 1 | $2.99 | Available | 1 |
| 40 | 0015060603 HH COLLAR SCREW M 6X60 WS=8 | HH COLLAR SCREW M 6X60 WS=8 | 1 | $3.99 | Available | 1 |
| 43 | 58030021000 OILDRAIN PLUG W.MAG. M 12X1,5 | OILDRAIN PLUG W.MAG. M 12X1,5 | 1 | $13.30 | Available | 1 |
| 44 | 58038022000 CU-seal ring DIN7603-12X18X1.5 | CU-seal ring DIN7603-12X18X1.5 | 1 | $2.99 | Available | 1 |
| 45 | 54730040100 IGNIT.COVER GASKET 1 MM 2000 | IGNIT.COVER GASKET 1 MM 2000 | 1 | $13.08 | Available | 1 |
| 46 | 54730002100 % IGNITION COVER 250-380 '20 | % IGNITION COVER 250-380 '20 | 1 | — | Obsolete | View Details |
| 80 | 54630099000 GASKET SET 250-380 '99-'01 | GASKET SET 250-380 '99-'01 | 1 | — | Obsolete | View Details |
