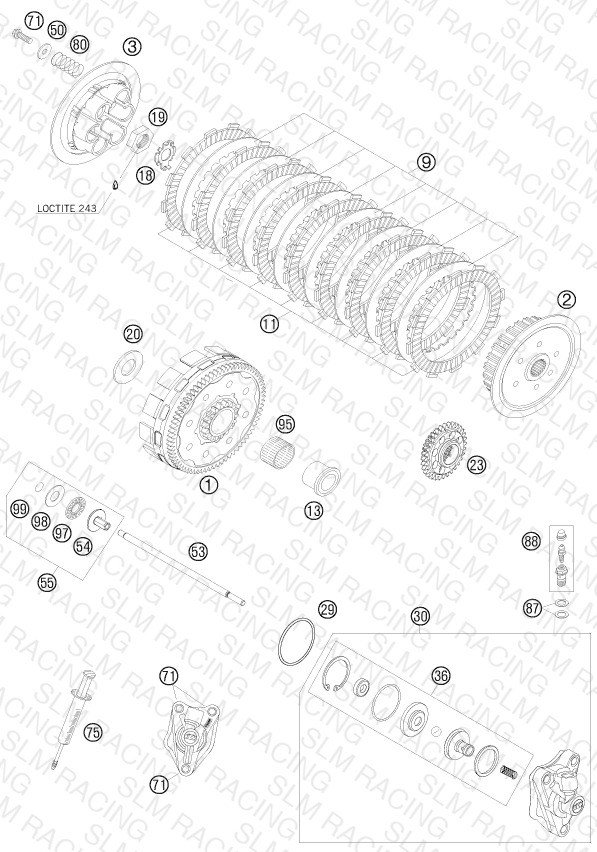

CLUTCH
Parts (26)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 77332001244 OUTER CLUTCH CPL. 08 | OUTER CLUTCH CPL. 08 | 1 | — | Obsolete | View Details |
| 2 | 77332002200 INNER CLUTCH HUB 08 | INNER CLUTCH HUB 08 | 1 | — | Obsolete | View Details |
| 3 | 77332003000 PRESSURE PLATE | PRESSURE PLATE | 1 | $102.51 | Available | 1 |
| 9 | 77332010000 INTERMEDI. DISC STEEL | INTERMEDI. DISC STEEL | 8 | $13.74 | Available | 8 |
| 11 | 77332011000 LINING DISC 2,7MM | LINING DISC 2,7MM | 9 | $33.87 | Available | 9 |
| 13 | 77332015100 INNER RING | INNER RING | 1 | $31.23 | Available | 1 |
| 18 | 77332018000 RETAINING PLATE | RETAINING PLATE | 1 | $4.99 | Available | 1 |
| 19 | 0936181505 HEXAGON NUT DIN0936-M18X1,5 R. | HEXAGON NUT DIN0936-M18X1,5 R. | 1 | $9.12 | Available | 1 |
| 20 | 77332017100 WASHER 21,7X38X4 07 | WASHER 21,7X38X4 07 | 1 | — | Obsolete | View Details |
| 23 | 77332023177 PRIMARY GEAR CPL. 07 | PRIMARY GEAR CPL. 07 | 1 | — | Obsolete | View Details |
| 29 | 0770380020 O-RING 38,00X2,00 NBR 70 SH | O-RING 38,00X2,00 NBR 70 SH | 3 | $3.99 | Available | 3 |
| 30 | 77332061044 OUTPUT CYLINDER CPL. | OUTPUT CYLINDER CPL. | 1 | $347.81 | Available | 1 |
| 36 | 77332066000 PISTON CPL. | PISTON CPL. | 1 | $89.64 | Available | 1 |
| 50 | 50232050000 WASHER 6,2X18X2 | WASHER 6,2X18X2 | 2 | $6.15 | Available | 2 |
| 53 | 77332054100 PUSH ROD 07 | PUSH ROD 07 | 1 | $15.39 | Available | 1 |
| 54 | 77332057100 PRESSURE PIECE | PRESSURE PIECE | 1 | $15.72 | Available | 1 |
| 55 | 77332057144 PRESSURE PIECE CPL. | PRESSURE PIECE CPL. | 1 | $28.26 | Available | 1 |
| 71 | 0015060253 HH COLLAR SCREW M 6X25 WS=8 | HH COLLAR SCREW M 6X25 WS=8 | 5 | $3.99 | Available | 5 |
| 75 | 50329050000 VENT INJEKTION HYDR. CLUTCH | VENT INJEKTION HYDR. CLUTCH | 1 | $63.24 | Available | 1 |
| 80 | 77332005000 CLUTCH SPRING | CLUTCH SPRING | 6 | $11.32 | Available | 6 |
| 87 | 42013226000 CU-SEAL RING DIN7603-10X16X1 | CU-SEAL RING DIN7603-10X16X1 | 1 | $2.99 | Available | 1 |
| 88 | 54813020000 BLEEDER HOLLOW SCREW M10X1 | BLEEDER HOLLOW SCREW M10X1 | 1 | $32.33 | Available | 1 |
| 95 | 56532095000 NEEDLE BEARING K26X30X22ZW.KSE | NEEDLE BEARING K26X30X22ZW.KSE | 1 | $28.04 | Available | 1 |
| 97 | 54637097200 AXIAL NEEDLE BEARING AXK 1226 | AXIAL NEEDLE BEARING AXK 1226 | 1 | $11.98 | Available | 1 |
| 98 | 54637098200 AXIAL WASHER AS1226 12X26X1 | AXIAL WASHER AS1226 12X26X1 | 1 | $6.15 | Available | 1 |
| 99 | 0993012000 CIRCLIP DIN7993-RW12 | CIRCLIP DIN7993-RW12 | 1 | $3.99 | Available | 1 |
