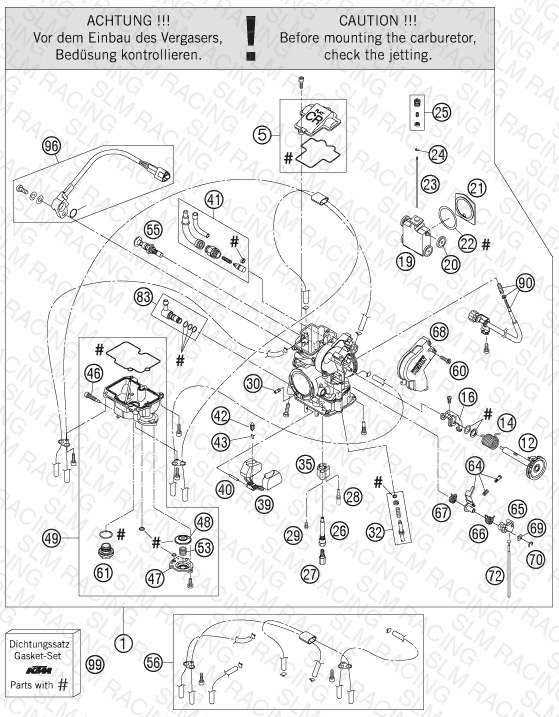

CARBURETOR
Parts (57)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 77331001100 CARBURETOR FCR-MX 4125I,TPS | CARBURETOR FCR-MX 4125I,TPS | 1 | — | Obsolete | View Details |
| 5 | 57331027044 CARBURETOR COVER WITH GASKET | CARBURETOR COVER WITH GASKET | 1 | $46.19 | Available | 1 |
| 12 | 57331046100 THROTTLE SHAFT CPL. 06 | THROTTLE SHAFT CPL. 06 | 1 | — | Obsolete | View Details |
| 14 | 57331046050 COIL SPRING THROTTLE SHAFT | COIL SPRING THROTTLE SHAFT | 1 | $10.77 | Available | 1 |
| 16 | 76231035051 LINK ARM THROTTLE VALVE CPL.07 | LINK ARM THROTTLE VALVE CPL.07 | 1 | — | Obsolete | View Details |
| 19 | 57331035100 THROTTLE VALVE CPL. FCRMX 2007 | THROTTLE VALVE CPL. FCRMX 2007 | 1 | — | Obsolete | View Details |
| 20 | 59031035050 BUSHING THROTTLE VALVE | BUSHING THROTTLE VALVE | 4 | $12.53 | Available | 4 |
| 21 | 57331035153 GASKET PLATE THROTTLE VALVE 04 | GASKET PLATE THROTTLE VALVE 04 | 1 | $225.71 | Available | 1 |
| 22 | 59031035052 GASKET WASHER THROTTLE VALVE | GASKET WASHER THROTTLE VALVE | 1 | $21.11 | Available | 1 |
| 23 | 59031021000 JET NEEDLE KEIHIN OBDTM | JET NEEDLE KEIHIN OBDTM | — | $32.88 | Available | 1 |
| 23 | 59031034000 JET NEEDLE KEIHIN OBDTN | JET NEEDLE KEIHIN OBDTN | — | $33.43 | Available | 1 |
| 23 | 59031034400 JET NEEDLE KEIHIN OBDTP | JET NEEDLE KEIHIN OBDTP | — | $36.51 | Available | 1 |
| 23 | 59031034500 JET NEEDLE KEIHIN OBDTQ | JET NEEDLE KEIHIN OBDTQ | — | $33.98 | Available | 1 |
| 23 | 59031034600 JET NEEDLE KEIHIN OBDTR | JET NEEDLE KEIHIN OBDTR | — | $35.30 | Available | 1 |
| 24 | 59031029000 BAR CLIP | BAR CLIP | 1 | $6.15 | Available | 1 |
| 25 | 57331032000 NEEDLE SET SCREW CPL. | NEEDLE SET SCREW CPL. | 1 | $47.18 | Available | 1 |
| 26 | 59031121000 NEEDLE JET FCR-MX | NEEDLE JET FCR-MX | 1 | $38.49 | Available | 1 |
| 27 | 54531623180 MAIN JET 180 KEIHIN | MAIN JET 180 KEIHIN | — | $14.95 | Available | 1 |
| 27 | 54531623182 MAIN JET 182 KEIHIN | MAIN JET 182 KEIHIN | — | $15.17 | Available | 1 |
| 27 | 54531623185 MAIN JET 185 KEIHIN | MAIN JET 185 KEIHIN | — | $15.06 | Available | 1 |
| 27 | 54531623188 MAIN JET 188 KEIHIN | MAIN JET 188 KEIHIN | — | $14.84 | Available | 1 |
| 27 | 54531623190 MAIN JET 190 KEIHIN | MAIN JET 190 KEIHIN | — | $14.84 | Available | 1 |
| 27 | 54531623192 MAIN JET 192 KEIHIN | MAIN JET 192 KEIHIN | — | $14.84 | Available | 1 |
| 27 | 54531623195 MAIN JET 195 KEIHIN | MAIN JET 195 KEIHIN | — | $14.84 | Available | 1 |
| 28 | 54531607040 IDLE JET 40 KEIHIN | IDLE JET 40 KEIHIN | — | $14.84 | Available | 1 |
| 28 | 54531607042 IDLE JET 42 KEIHIN | IDLE JET 42 KEIHIN | — | $14.95 | Available | 1 |
| 28 | 54531607045 IDLE JET 45 KEIHIN | IDLE JET 45 KEIHIN | — | $14.73 | Available | 1 |
| 29 | 59031051085 STARTER JET 85 | STARTER JET 85 | 1 | $19.68 | Available | 1 |
| 30 | 57331107100 IDLE AIR JET 100 KEIHIN | IDLE AIR JET 100 KEIHIN | 1 | $17.37 | Available | 1 |
| 32 | 59031017100 ADJUST SCREW CPL. FCR-MX | ADJUST SCREW CPL. FCR-MX | 1 | $23.09 | Available | 1 |
| 35 | 57331085000 BUFFER PLATE | BUFFER PLATE | 1 | $14.51 | Available | 1 |
| 39 | 57331009000 FLOAT CPL. | FLOAT CPL. | 1 | $70.17 | Available | 1 |
| 40 | 57331008000 ARM PIN FLOAT | ARM PIN FLOAT | 1 | $2.99 | Available | 1 |
| 41 | 77031075000 HOT-STARTER VALVE | HOT-STARTER VALVE | 1 | $40.99 | Available | 1 |
| 42 | 54631220000 FLOAT NEEDLE | FLOAT NEEDLE | 1 | $36.95 | Available | 1 |
| 43 | 54531621000 CLAMP | CLAMP | 1 | $4.99 | Available | 1 |
| 46 | 76231155000 DRAIN SCREW + O-RING | DRAIN SCREW + O-RING | 1 | $10.55 | Available | 1 |
| 47 | 57331060000 COVER ACCELERATOR PUMP | COVER ACCELERATOR PUMP | 1 | $31.78 | Available | 1 |
| 48 | 57331057100 DIAPHRAGM ACCELERATOR PUMP | DIAPHRAGM ACCELERATOR PUMP | 1 | $36.07 | Available | 1 |
| 49 | 78031011000 FLOAT CHAMBER CPL. 08 | FLOAT CHAMBER CPL. 08 | 1 | $209.98 | Available | 1 |
| 53 | 59031059000 COIL SPRING | COIL SPRING | 1 | $8.68 | Available | 1 |
| 55 | 77031048000 STARTER VALVE SHORT CPL. | STARTER VALVE SHORT CPL. | 1 | $94.48 | Available | 1 |
| 56 | 57331098000 BREATH.HOSE FCR-MX KEIHIN CPL. | BREATH.HOSE FCR-MX KEIHIN CPL. | 1 | $126.49 | Backorder — Restocking | 1 |
| 60 | 0965050103 FLAT HEAD SCREW DIN0965-M 5X10 | FLAT HEAD SCREW DIN0965-M 5X10 | 4 | $2.99 | Available | 4 |
| 61 | 54531699000 PLUG M 18X1 | PLUG M 18X1 | 1 | $23.64 | Available | 1 |
| 64 | 57331062000 INTERMEDIATE LEVER CPL. | INTERMEDIATE LEVER CPL. | 1 | $39.15 | Available | 1 |
| 65 | 57331056000 LINK LEVER | LINK LEVER | 1 | $9.56 | Out of Stock | Notify Me |
| 66 | 57331059000 SPRING LINK LEVER | SPRING LINK LEVER | 1 | — | Obsolete | View Details |
| 67 | 57331159000 SPRING INTERMEDIATE LEVER | SPRING INTERMEDIATE LEVER | 1 | $12.75 | Available | 1 |
| 68 | 57331038200 CARBURETOR COVER 06 | CARBURETOR COVER 06 | 1 | $9.56 | Available | 1 |
| 69 | 57331087000 WASHER LINK LEVER | WASHER LINK LEVER | 1 | $2.99 | Available | 1 |
| 70 | 57331084000 E-CLIP | E-CLIP | 1 | $2.99 | Available | 1 |
| 72 | 57331061000 ROD ACCELERATOR PUMP | ROD ACCELERATOR PUMP | 1 | $31.45 | Out of Stock | Notify Me |
| 83 | 59031013044 HOSE CONNECTOR CPL. | HOSE CONNECTOR CPL. | 1 | $76.88 | Available | 1 |
| 90 | 57331025000 STOP SCREW CPL. FCR-MX | STOP SCREW CPL. FCR-MX | 1 | $66.65 | Available | 1 |
| 96 | 59031077200 TPS-SENSOR FCRMX 190MM 2006 | TPS-SENSOR FCRMX 190MM 2006 | 1 | $170.16 | Available | 1 |
| 99 | 57331099000 GASKET SET FCR-MX KEIHIN | GASKET SET FCR-MX KEIHIN | 1 | $140.79 | Available | 1 |
