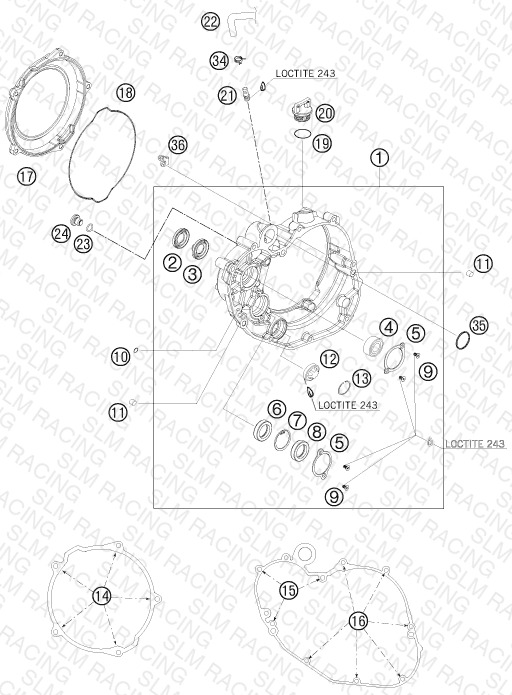

CLUTCH COVER
Parts (27)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 77330001144 CLUTCH COVER CPL. | CLUTCH COVER CPL. | 1 | — | Obsolete | View Details |
| 2 | 77335057000 SHAFT SEAL RING 12x24x4 | SHAFT SEAL RING 12x24x4 | 1 | $13.52 | Available | 1 |
| 3 | 77335056000 SHAFT SEAL RING 12x24x4/5,5 | SHAFT SEAL RING 12x24x4/5,5 | 1 | $14.18 | Available | 1 |
| 4 | 0625062021 BALL BEARING 6202 C0 2RSH | BALL BEARING 6202 C0 2RSH | 1 | $23.42 | Available | 1 |
| 5 | 77335064100 RETAINING PLATE FOR WAPUSTOCK | RETAINING PLATE FOR WAPUSTOCK | 1 | $4.99 | Available | 1 |
| 6 | 0760203070 SHAFT SEAL RING 20X30X7 | SHAFT SEAL RING 20X30X7 | 1 | — | Obsolete | View Details |
| 7 | 0472300120 CIRCLIP 30X1,2 | CIRCLIP 30X1,2 | 1 | $1.99 | Available | 1 |
| 8 | 0760253574 SHAFT SEAL RING 25x35x7 BSL VI | SHAFT SEAL RING 25x35x7 BSL VI | 1 | $12.53 | Available | 1 |
| 9 | 0019050103 INT TORX FLAT HEAD M 5X10 8.8 | INT TORX FLAT HEAD M 5X10 8.8 | 4 | $2.99 | Available | 4 |
| 10 | 0770080015 O-RING 8,00X1,5 NBR 70 | O-RING 8,00X1,5 NBR 70 | 1 | $1.99 | Available | 1 |
| 11 | 0402080120 CYLINDER ROLLER ZRO. 8,0X12 M4 | CYLINDER ROLLER ZRO. 8,0X12 M4 | 3 | $2.99 | Available | 3 |
| 12 | 59030019000 OIL LEVEL GLASS G 1777 Y | OIL LEVEL GLASS G 1777 Y | 1 | $15.84 | Out of Stock | Notify Me |
| 13 | 61030019050 CIRCLIP OIL LEVEL GLASS 03 | CIRCLIP OIL LEVEL GLASS 03 | 1 | $1.99 | Available | 1 |
| 14 | 0015060203 HH COLLAR SCREW M 6X20 WS=8 | HH COLLAR SCREW M 6X20 WS=8 | 6 | $3.99 | Available | 6 |
| 15 | 77330067145 SCREW M7-1,0X45 | SCREW M7-1,0X45 | 3 | $3.99 | Available | 3 |
| 16 | 0015060303 HH COLLAR SCREW M 6X30 SW=8 | HH COLLAR SCREW M 6X30 SW=8 | 1 | $3.99 | Available | 1 |
| 17 | 77330026100 CLUTCH COVER OUTSIDE 07 | CLUTCH COVER OUTSIDE 07 | 1 | — | Obsolete | View Details |
| 18 | 77330027000 CLUTCH CASE GASKET | CLUTCH CASE GASKET | 1 | $11.32 | Available | 1 |
| 19 | 0770191015 O-RING 19,00X3,00 NBR | O-RING 19,00X3,00 NBR | 1 | $2.99 | Available | 1 |
| 20 | 58030020100 oil plug cpl. M24x3 | oil plug cpl. M24x3 | 1 | $6.15 | Available | 1 |
| 21 | 59030022100 BLEEDER FLANGE M12X1,5 WS=13 | BLEEDER FLANGE M12X1,5 WS=13 | 1 | $9.23 | Available | 1 |
| 22 | 77330086000 ENGINE BREATHER TUBE | ENGINE BREATHER TUBE | 1 | — | Obsolete | View Details |
| 23 | 07700900151 O-RING 9x1,5 V80 SH | O-RING 9x1,5 V80 SH | 2 | $2.99 | Available | 2 |
| 24 | 77336056095 SCREW PLUG | SCREW PLUG | 2 | $8.24 | Available | 2 |
| 34 | 58431082100 YDNAC-clamp 10173 (16MM) | YDNAC-clamp 10173 (16MM) | 1 | $1.99 | Available | 1 |
| 35 | 77335005000 QUAD-RING 28,3X1,78 VITON | QUAD-RING 28,3X1,78 VITON | 1 | $4.99 | Available | 1 |
| 36 | 77303026054 SPRING BRACKET | SPRING BRACKET | 1 | $7.03 | Out of Stock | Notify Me |
