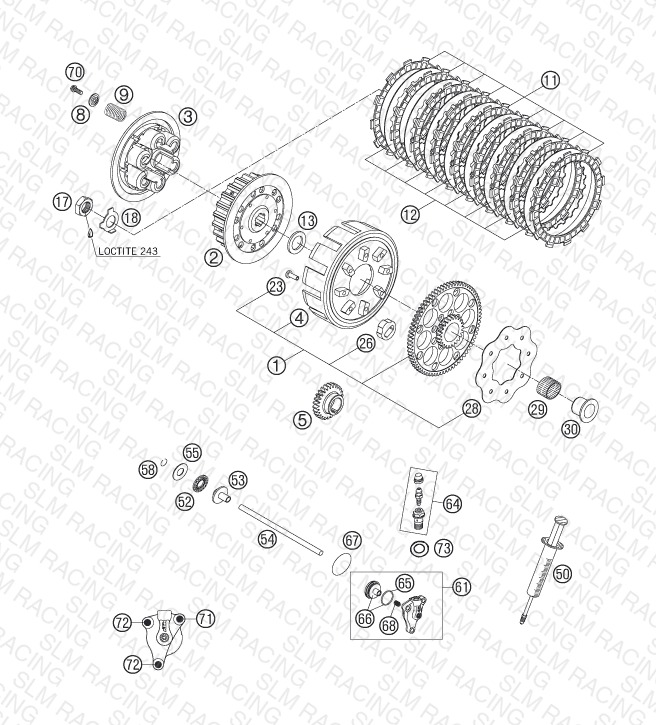

CLUTCH
Parts (33)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 54832001072 OUTER CLUTCH HUB 72-T CPL. 03 | OUTER CLUTCH HUB 72-T CPL. 03 | 1 | — | Obsolete | View Details |
| 2 | 54832002000 INNER CLUTCH HUB 546/548 2003 | INNER CLUTCH HUB 546/548 2003 | 1 | $148.49 | Available | 1 |
| 3 | 54632003000 PRESSURE CAP 250-380 '98 | PRESSURE CAP 250-380 '98 | 1 | $92.83 | Available | 1 |
| 4 | 54832001000 OUTER CLUTCH HUB LOOSE 2003 | OUTER CLUTCH HUB LOOSE 2003 | 1 | $421.84 | Available | 1 |
| 5 | 54832000026 PRIMARY GEAR 26T 2003 | PRIMARY GEAR 26T 2003 | 1 | $106.58 | Available | 1 |
| 8 | 58132081000 SPRING RETAINER 6,2 X 20 X 3,2 | SPRING RETAINER 6,2 X 20 X 3,2 | 6 | $3.99 | Available | 6 |
| 9 | 54832080000 CLUTCH SPRING 2,5X41,9 8,75W | CLUTCH SPRING 2,5X41,9 8,75W | 6 | $7.80 | Available | 6 |
| 11 | 54832011000 LINING DISC FCC 04 | LINING DISC FCC 04 | 9 | $28.37 | Available | 9 |
| 12 | 54832012000 STEEL DISC 1,2 MM | STEEL DISC 1,2 MM | 8 | $13.08 | Available | 8 |
| 13 | 57532013000 SUPPORTWASHER 22,2X35X3 HARDE. | SUPPORTWASHER 22,2X35X3 HARDE. | 1 | — | Obsolete | View Details |
| 17 | 0936181505 HEXAGON NUT DIN0936-M18X1,5 R. | HEXAGON NUT DIN0936-M18X1,5 R. | 1 | $9.12 | Available | 1 |
| 18 | 56532018000 LOCK WASHER | LOCK WASHER | 1 | $7.36 | Available | 1 |
| 23 | 0733060150 CLUTCH RIVET DIN7338- 6X15 | CLUTCH RIVET DIN7338- 6X15 | 8 | $9.23 | Available | 8 |
| 26 | 58132026000 DAMPING ELEMENT | DAMPING ELEMENT | 8 | $7.14 | Available | 8 |
| 28 | 58132028000 RETAINING PLATE | RETAINING PLATE | 1 | — | Obsolete | View Details |
| 29 | 56532095000 NEEDLE BEARING K26X30X22ZW.KSE | NEEDLE BEARING K26X30X22ZW.KSE | 1 | $28.04 | Available | 1 |
| 30 | 50332070000 INNER RING WITH COLLAR | INNER RING WITH COLLAR | 1 | $57.96 | Available | 1 |
| 50 | 50329050000 VENT INJEKTION HYDR. CLUTCH | VENT INJEKTION HYDR. CLUTCH | 1 | $63.24 | Available | 1 |
| 52 | 54637097200 AXIAL NEEDLE BEARING AXK 1226 | AXIAL NEEDLE BEARING AXK 1226 | 1 | $11.98 | Available | 1 |
| 53 | 50332054051 PRESSURE PIECE 125-380 '98 | PRESSURE PIECE 125-380 '98 | 1 | $31.12 | Available | 1 |
| 54 | 54832054000 PUSH ROD 250 2003 | PUSH ROD 250 2003 | 1 | $14.07 | Available | 1 |
| 55 | 54637098200 AXIAL WASHER AS1226 12X26X1 | AXIAL WASHER AS1226 12X26X1 | 1 | $6.15 | Available | 1 |
| 58 | 0993012000 CIRCLIP DIN7993-RW12 | CIRCLIP DIN7993-RW12 | 1 | $3.99 | Available | 1 |
| 61 | 54832061044 OUTPUT CYLINDER CPL. 06 | OUTPUT CYLINDER CPL. 06 | 1 | $161.69 | Available | 1 |
| 64 | 54813020000 BLEEDER HOLLOW SCREW M10X1 | BLEEDER HOLLOW SCREW M10X1 | 1 | $32.33 | Available | 1 |
| 65 | 54832067000 O-RING | O-RING | 1 | $3.99 | Available | 1 |
| 66 | 54832066000 PISTON CPL. | PISTON CPL. | 1 | $80.51 | Available | 1 |
| 67 | 0770300015 O-ring 30x1.5 NBR 70 | O-ring 30x1.5 NBR 70 | 1 | $2.99 | Available | 1 |
| 68 | 54832069000 PRESSURE SPRING | PRESSURE SPRING | 1 | $14.18 | Available | 1 |
| 70 | 0015060163 HH COLLAR SCREW M 6X16 WS=8 | HH COLLAR SCREW M 6X16 WS=8 | 3 | $3.99 | Available | 3 |
| 71 | 0015060353 HH COLLAR SCREW M 6X35 WS=8 | HH COLLAR SCREW M 6X35 WS=8 | — | $3.99 | Available | 1 |
| 72 | 0015060203 HH COLLAR SCREW M 6X20 WS=8 | HH COLLAR SCREW M 6X20 WS=8 | 6 | $3.99 | Available | 6 |
| 73 | 42013226000 CU-SEAL RING DIN7603-10X16X1 | CU-SEAL RING DIN7603-10X16X1 | 1 | $2.99 | Available | 1 |
