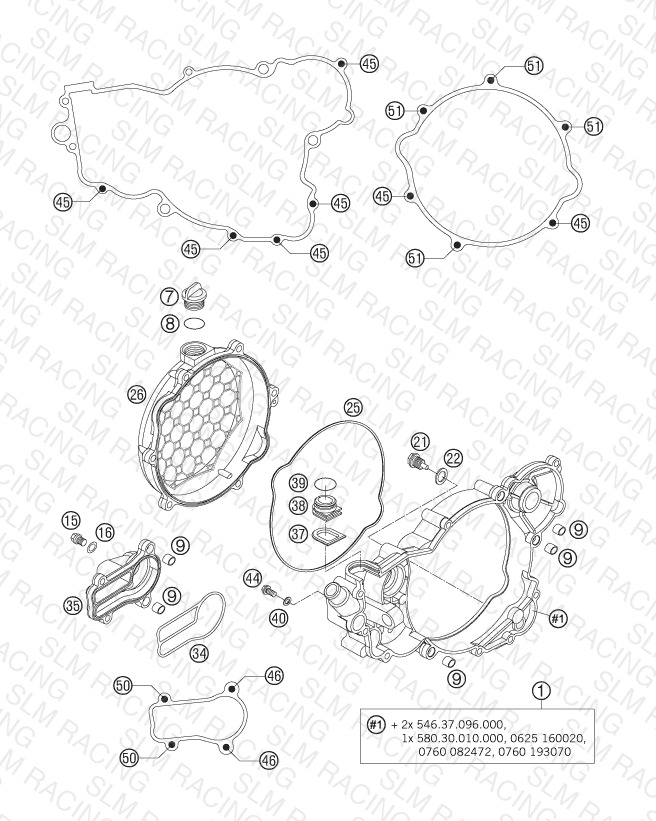

CLUTCH COVER
Parts (21)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 54830001044 INTERM. CLUTCH COVER CPL. 03 | INTERM. CLUTCH COVER CPL. 03 | 1 | $253.32 | Available | 1 |
| 7 | 58030020000 PLUG M 24X3 | PLUG M 24X3 | 1 | $6.15 | Available | 1 |
| 8 | 0770191015 O-RING 19,00X3,00 NBR | O-RING 19,00X3,00 NBR | 1 | $2.99 | Available | 1 |
| 9 | 49030090000 DOWEL 9,8 X 7 X 10 | DOWEL 9,8 X 7 X 10 | 2 | $2.99 | Available | 2 |
| 15 | 0910100003 PLUG DIN0910-M 10X1 | PLUG DIN0910-M 10X1 | 1 | $4.99 | Available | 1 |
| 16 | 0603100141 sealing ring DIN 7603 10x14x1 | sealing ring DIN 7603 10x14x1 | 2 | $2.99 | Available | 2 |
| 21 | 58030021000 OILDRAIN PLUG W.MAG. M 12X1,5 | OILDRAIN PLUG W.MAG. M 12X1,5 | 1 | $13.30 | Available | 1 |
| 22 | 58038022000 CU-seal ring DIN7603-12X18X1.5 | CU-seal ring DIN7603-12X18X1.5 | 1 | $2.99 | Available | 1 |
| 25 | 54830025000 GASKET F.CLU.COVER 250/300 03 | GASKET F.CLU.COVER 250/300 03 | 1 | $13.74 | Available | 1 |
| 26 | 5483002600098 CLUTCH COVER OUTSIDE 03 | CLUTCH COVER OUTSIDE 03 | 1 | $87.44 | Available | 1 |
| 34 | 54835003000 GASKET WAPU-COVER 250 2003 | GASKET WAPU-COVER 250 2003 | 1 | $7.03 | Available | 1 |
| 35 | 54835001000 WATERPUMP COVER 250/300 03 | WATERPUMP COVER 250/300 03 | 1 | — | Obsolete | View Details |
| 37 | 54637107000 SEALING ELEMENT BOTTOM | SEALING ELEMENT BOTTOM | 1 | $8.68 | Available | 1 |
| 38 | 54837091000 SEALING CARRIER 03 | SEALING CARRIER 03 | 1 | — | Obsolete | View Details |
| 39 | 0770021160 0-RING 18,72X2,62 | 0-RING 18,72X2,62 | 1 | — | Obsolete | View Details |
| 40 | 0603061001 CU-SEAL RING DIN7603-6X10X1 | CU-SEAL RING DIN7603-6X10X1 | 1 | $2.99 | Available | 1 |
| 44 | 0015060123 HH COLLAR SCREW M 6X12 WS=8 | HH COLLAR SCREW M 6X12 WS=8 | 3 | $3.99 | Available | 3 |
| 45 | 0015060203 HH COLLAR SCREW M 6X20 WS=8 | HH COLLAR SCREW M 6X20 WS=8 | 6 | $3.99 | Available | 6 |
| 46 | 0015060253 HH COLLAR SCREW M 6X25 WS=8 | HH COLLAR SCREW M 6X25 WS=8 | 5 | $3.99 | Available | 5 |
| 50 | 0015060553 HH COLLAR SCREW M 6X55 WS=8 | HH COLLAR SCREW M 6X55 WS=8 | 5 | — | Obsolete | View Details |
| 51 | 0015060603 HH COLLAR SCREW M 6X60 WS=8 | HH COLLAR SCREW M 6X60 WS=8 | 1 | $3.99 | Available | 1 |
