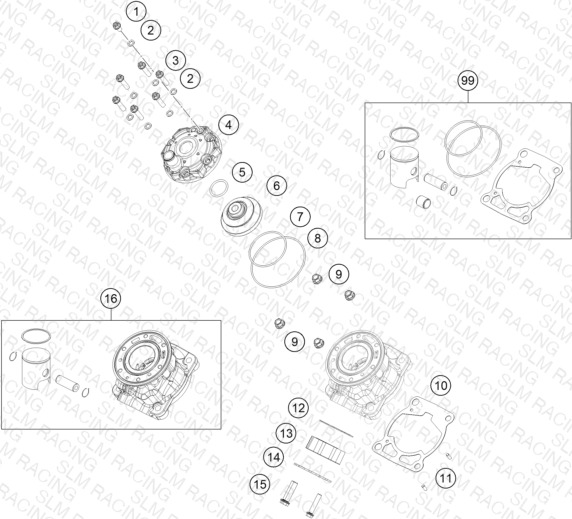

CYLINDER, CYLINDER HEAD
Parts (23)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 0025060106 HH collar screw M6x10 TX30 | HH collar screw M6x10 TX30 | 1 | $3.99 | Available | 1 |
| 2 | 0603061001 CU-SEAL RING DIN7603-6X10X1 | CU-SEAL RING DIN7603-6X10X1 | 1 | $2.99 | Available | 1 |
| 3 | 0025060256 HH collar screw M6x25 TX30 | HH collar screw M6x25 TX30 | 4 | $3.99 | Available | 4 |
| 4 | 47230006100 Cylinder head | Cylinder head | 1 | $33.65 | Available | 1 |
| 5 | 0770023025 O-ring 23x2,5 Viton 75SH | O-ring 23x2,5 Viton 75SH | 1 | $1.99 | Available | 1 |
| 6 | A40030060000 Combustion chamber insert | Combustion chamber insert | 1 | $61.70 | Available | 1 |
| 7 | 0770052020 O-RING 52,00X2,0 VITON 75 | O-RING 52,00X2,0 VITON 75 | 1 | $9.23 | Available | 1 |
| 8 | 0770800021 O-RING 80,00X2,00 VITON | O-RING 80,00X2,00 VITON | 1 | $8.13 | Available | 1 |
| 9 | 46030045000 flanged nut M8 WS10 | flanged nut M8 WS10 | 1 | $9.23 | Available | 1 |
| 10 | A40530035020 Cylinder base gasket | Cylinder base gasket | — | $4.99 | Available | 1 |
| 10 | A40530035025 Cylinder base gasket | Cylinder base gasket | — | $4.99 | Available | 1 |
| 10 | A40530035030 Cylinder base gasket | Cylinder base gasket | — | $3.99 | Available | 1 |
| 10 | A40530035040 Cylinder base gasket | Cylinder base gasket | — | $4.99 | Available | 1 |
| 10 | A40530035050 Cylinder base gasket | Cylinder base gasket | — | $5.05 | Available | 1 |
| 10 | A40530035060 Cylinder base gasket | Cylinder base gasket | — | $5.49 | Available | 1 |
| 11 | 0402040980 Needle roll.DIN5402 NRB 4X9.8 | Needle roll.DIN5402 NRB 4X9.8 | 2 | $3.99 | Available | 2 |
| 12 | 45205004000 EXHAUST FLANGE GASKET | EXHAUST FLANGE GASKET | 1 | $8.90 | Available | 1 |
| 13 | A40037001000 Intermediate flange | Intermediate flange | 1 | $136.99 | Available | 1 |
| 14 | 46205003050 BRACKET FOR SPRINGHOLDER | BRACKET FOR SPRINGHOLDER | 1 | $18.03 | Available | 1 |
| 15 | 0025060306S HH collar screw M6x30 TX30 | HH collar screw M6x30 TX30 | 4 | $3.99 | Available | 4 |
| 16 | A40030038000 Cylinder + piston | Cylinder + piston | 1 | $584.64 | Available | 1 |
| 99 | A40030007010 I piston kit I 50 SX/TC/MC | piston kit I 50 SX/TC/MC | — | $194.25 | Available | |
| 99 | A40030007010 II piston kit II 50 SX/TC/MC | piston kit II 50 SX/TC/MC | — | $194.25 | Available |
