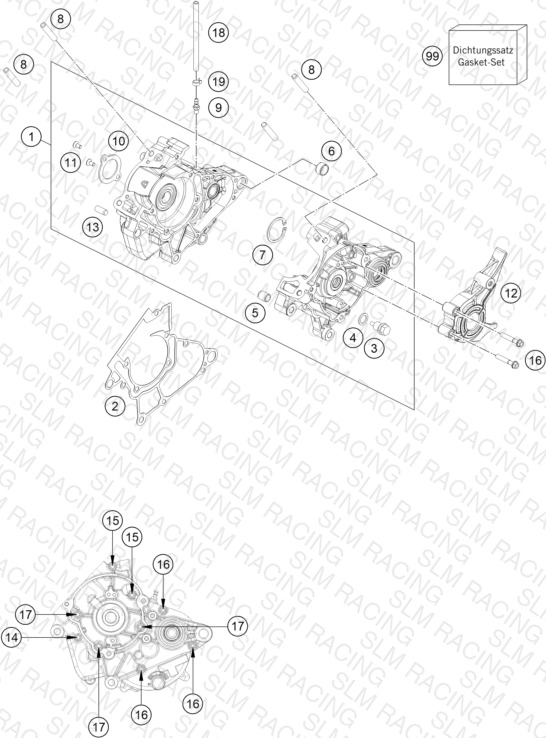

ENGINE CASE
Parts (21)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | A40030000044 Motorhousing cpl. | Motorhousing cpl. | 1 | $577.49 | Available | 1 |
| 2 | 45230039000 ENGINE CASE GASKET | ENGINE CASE GASKET | 1 | $18.47 | Available | 1 |
| 3 | 58030021100 oildrain plug with magnet | oildrain plug with magnet | 1 | $13.30 | Available | 1 |
| 4 | 58038022000 CU-seal ring DIN7603-12X18X1.5 | CU-seal ring DIN7603-12X18X1.5 | 1 | $2.99 | Available | 1 |
| 5 | 46230024000 DOWEL 12X9X14,5 | DOWEL 12X9X14,5 | 1 | $7.58 | Available | 1 |
| 6 | 58330023000 DOWEL 17 X 14 X 9,5 | DOWEL 17 X 14 X 9,5 | 1 | $6.48 | Available | 1 |
| 7 | 0472035150 CIRCLIP DIN0472-35X1,5 | CIRCLIP DIN0472-35X1,5 | 1 | $2.99 | Available | 1 |
| 8 | 46030043000 STUD M8X41 | STUD M8X41 | 3 | $6.81 | Available | 3 |
| 9 | 58336020190 VACUUM CONECTION M6/3MM '97 | VACUUM CONECTION M6/3MM '97 | 1 | $6.15 | Available | 1 |
| 10 | 45230017000 BEARING BRACKET | BEARING BRACKET | 1 | $2.99 | Backorder — Restocking | 1 |
| 11 | 0019050106S hex lobe countersunc screw M5x | hex lobe countersunc screw M5x | 2 | $2.99 | Available | 2 |
| 11 | 58030021100 oildrain plug with magnet | oildrain plug with magnet | 1 | $13.30 | Available | 1 |
| 12 | A40003096000 Front sprocket cover | Front sprocket cover | 1 | $34.86 | Available | 1 |
| 13 | 0325080200 CYLINDER STUD DIN6325 8X20 M6 | CYLINDER STUD DIN6325 8X20 M6 | 1 | $2.99 | Available | 1 |
| 14 | 0025060356 HH collar screw M6x35 TX30 | HH collar screw M6x35 TX30 | 2 | $3.99 | Available | 2 |
| 15 | 0025060556 HH collar screw M6x55 TX30 | HH collar screw M6x55 TX30 | 5 | $3.99 | Available | 5 |
| 16 | 0025060306 HH collar screw M6x30 TX30 | HH collar screw M6x30 TX30 | 2 | $3.99 | Available | 2 |
| 17 | 0025060406 HH collar screw M6x40 TX30 | HH collar screw M6x40 TX30 | 1 | $3.99 | Available | 1 |
| 18 | 31007007101 PVC-HOSE 4X6MM | PVC-HOSE 4X6MM | — | $4.99 | Available | 1 |
| 19 | 45230089000 YDNAC-CLAMP 10068 (6,8MM) | YDNAC-CLAMP 10068 (6,8MM) | 1 | $1.99 | Available | 1 |
| 99 | A40030099000 GASKET KIT 50 | GASKET KIT 50 | 1 | $184.79 | Backorder — Restocking | 1 |
