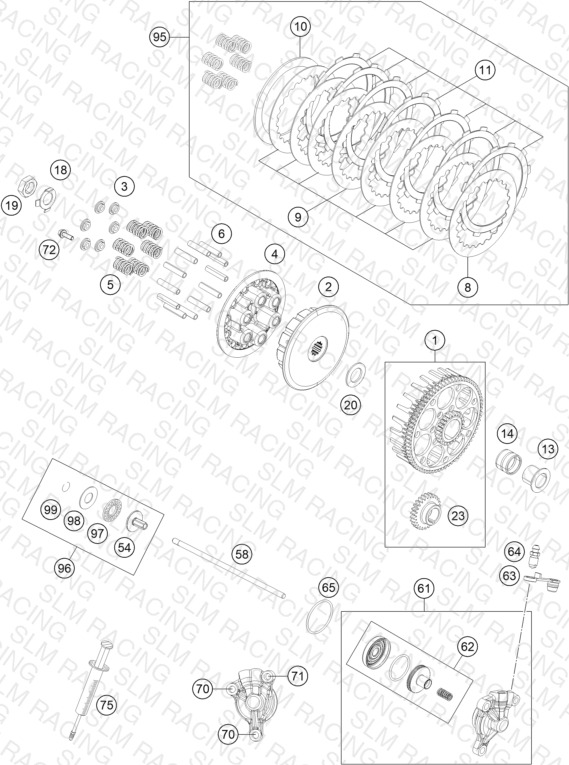

CLUTCH
Parts (32)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 54832024044 CLUTCH CAGE INCL. PRIM. WHEEL | CLUTCH CAGE INCL. PRIM. WHEEL | 1 | — | Check availability | |
| 2 | 77232002000 INNER CLUTCH HUB | INNER CLUTCH HUB | 1 | — | Check availability | View Details |
| 4 | 77232003000 PRESSURE PLATE | PRESSURE PLATE | 1 | — | Check availability | |
| 72 | 0025060256 HH collar screw M6x25 TX30 | HH collar screw M6x25 TX30 | 6 | — | Check availability | |
| 75 | 50329050000 VENT INJEKTION HYDR. CLUTCH | VENT INJEKTION HYDR. CLUTCH | 1 | — | Check availability | |
| 99 | 0993012000 CIRCLIP DIN7993-RW12 | CIRCLIP DIN7993-RW12 | 1 | — | Check availability | |
| 96 | 78032057044 PRESSURE PIECE CPL. 08 | PRESSURE PIECE CPL. 08 | 1 | — | Check availability | |
| 95 | 72532010010 CLUTCH KIT 250 FREERIDE | CLUTCH KIT 250 FREERIDE | 0 | — | Check availability | |
| 6 | 77232004000 DRIVING SLEEVE D=7,95 L=38 | DRIVING SLEEVE D=7,95 L=38 | 12 | — | Check availability | View Details |
| 8 | 59032010100 INTERMEDIATE DISC 1MM 2002 | INTERMEDIATE DISC 1MM 2002 | 1 | — | Check availability | |
| 9 | 59032010200 INTERMEDIATE DISC 1,4MM 2002 | INTERMEDIATE DISC 1,4MM 2002 | 7 | — | Check availability | |
| 10 | 72532010000 ALU DISC 3MM | ALU DISC 3MM | 1 | — | Check availability | |
| 11 | 54832011100 LINING DISC 1,95 MM | LINING DISC 1,95 MM | 7 | — | Check availability | |
| 13 | 54832015100 INNER RING 21.65X26X24.5 | INNER RING 21.65X26X24.5 | 1 | — | Check availability | |
| 14 | 56532095000 NEEDLE BEARING K26X30X22ZW.KSE | NEEDLE BEARING K26X30X22ZW.KSE | 1 | — | Check availability | |
| 18 | 78132018000 TAB WASHER | TAB WASHER | 1 | — | Check availability | View Details |
| 19 | 0936181505 HEXAGON NUT DIN0936-M18X1,5 R. | HEXAGON NUT DIN0936-M18X1,5 R. | 1 | — | Check availability | |
| 20 | 54832009000 WASHER 21.7 X 37 X 2.5 | WASHER 21.7 X 37 X 2.5 | 1 | — | Check availability | |
| 23 | 54832000026 PRIMARY GEAR 26T 2003 | PRIMARY GEAR 26T 2003 | 1 | — | Check availability | |
| 54 | 47032054000 PRESSURE PLATE 85 SX 2003 | PRESSURE PLATE 85 SX 2003 | 1 | — | Check availability | |
| 71 | 0025060306 HH collar screw M6x30 TX30 | HH collar screw M6x30 TX30 | 1 | — | Check availability | |
| 70 | 0025060166 HH collar screw M6x16 TX30 | HH collar screw M6x16 TX30 | 2 | — | Check availability | |
| 98 | 54637098200 AXIAL WASHER AS1226 12X26X1 | AXIAL WASHER AS1226 12X26X1 | 1 | — | Check availability | |
| 3 | 59032006050 Spring retainer 6.2X12X18X5.2 | Spring retainer 6.2X12X18X5.2 | 6 | — | Check availability | |
| 64 | 47013085000 BLEEDER SCREW M8X1 | BLEEDER SCREW M8X1 | 1 | — | Check availability | |
| 61 | 47132061044 OUTPUT CYLINDER CPL. | OUTPUT CYLINDER CPL. | 1 | — | Check availability | |
| 62 | 47132066000 Piston cmpl. | Piston cmpl. | 1 | — | Check availability | |
| 58 | 54832054100 PUSH ROD | PUSH ROD | 1 | — | Check availability | |
| 65 | 0770031018 O-RING 31,47X1,78 | O-RING 31,47X1,78 | 1 | — | Check availability | |
| 97 | 54637097200 AXIAL NEEDLE BEARING AXK 1226 | AXIAL NEEDLE BEARING AXK 1226 | 1 | — | Check availability | |
| 5 | 77032005100 CLUTCH SPRING | CLUTCH SPRING | 6 | — | Check availability | |
| 63 | 47013021000 CAP FOR BLEEDER SCREW | CAP FOR BLEEDER SCREW | 1 | — | Check availability |
