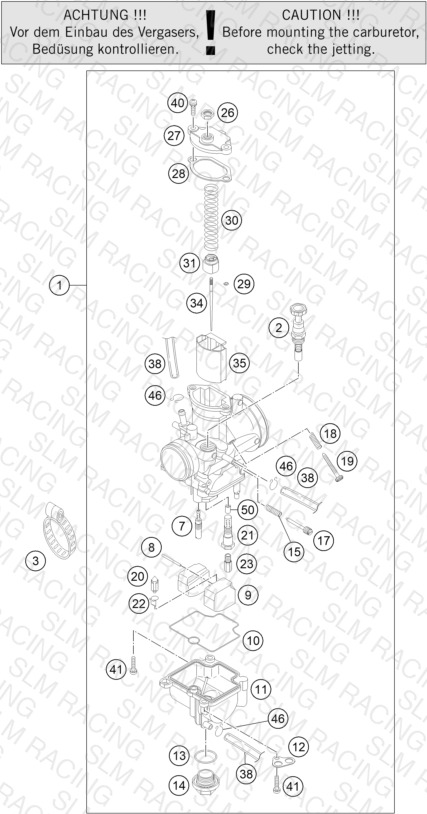

CARBURETOR
Parts (48)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 72531001144 CARBURETOR PWK28 | CARBURETOR PWK28 | 1 | — | Check availability | |
| 2 | 54631245000 STARTER PISTON CPL. | STARTER PISTON CPL. | 1 | — | Check availability | |
| 3 | 72530061000 CLAMP 45/12 GEMI | CLAMP 45/12 GEMI | 1 | — | Check availability | |
| 7 | 54531607040 IDLE JET 40 KEIHIN | IDLE JET 40 KEIHIN | 1 | — | Check availability | |
| 7 | 54531607042 IDLE JET 42 KEIHIN | IDLE JET 42 KEIHIN | 0 | — | Check availability | |
| 7 | 54531607045 IDLE JET 45 KEIHIN | IDLE JET 45 KEIHIN | 0 | — | Check availability | |
| 7 | 54531607048 IDLE JET 48 KEIHIN | IDLE JET 48 KEIHIN | 0 | — | Check availability | |
| 7 | 54531607050 IDLE JET 50 KEIHIN | IDLE JET 50 KEIHIN | 0 | — | Check availability | |
| 8 | 57331008000 ARM PIN FLOAT | ARM PIN FLOAT | 1 | — | Check availability | |
| 9 | 47031009000 FLOAT CPL. PWK28 03 | FLOAT CPL. PWK28 03 | 1 | — | Check availability | |
| 10 | 47031010000 FLOAT CHAMBER GASKET | FLOAT CHAMBER GASKET | 1 | — | Check availability | |
| 11 | 72531011000 FLOAT CHAMBER COMP. ASSY | FLOAT CHAMBER COMP. ASSY | 1 | — | Check availability | |
| 12 | 54531612100 RETAINING PLATE FOR BLEEDER | RETAINING PLATE FOR BLEEDER | 1 | — | Check availability | |
| 13 | 0770180230 O-RING 18,00X2,30 NBR 70 | O-RING 18,00X2,30 NBR 70 | 1 | — | Check availability | |
| 14 | 54531699000 PLUG M 18X1 | PLUG M 18X1 | 1 | — | Check availability | |
| 15 | 54531615000 SPRING FOR ADJUSTMENT SCREW | SPRING FOR ADJUSTMENT SCREW | 1 | — | Check availability | |
| 17 | 54531617000 ADJUSTMENT SCREW | ADJUSTMENT SCREW | 1 | — | Check availability | |
| 18 | 54631118000 SPRING | SPRING | 1 | — | Check availability | |
| 19 | 54631219100 ADJUSTMENT SCREW M 5 | ADJUSTMENT SCREW M 5 | 1 | — | Check availability | |
| 20 | 47031020000 FLOAT NEEDLE CPL. | FLOAT NEEDLE CPL. | 1 | — | Check availability | |
| 21 | 72531022000 NEEDLE JET HOLDER 14 | NEEDLE JET HOLDER 14 | 1 | — | Check availability | |
| 22 | 54531621000 CLAMP | CLAMP | 1 | — | Check availability | |
| 23 | 54531623110 MAIN JET 110 KEIHIN | MAIN JET 110 KEIHIN | 1 | — | Check availability | |
| 23 | 54531623115 MAIN JET 115 KEIHIN | MAIN JET 115 KEIHIN | 0 | — | Check availability | |
| 23 | 54531623118 MAIN JET 118 KEIHIN | MAIN JET 118 KEIHIN | 0 | — | Check availability | |
| 23 | 54531623120 MAIN JET 120 KEIHIN | MAIN JET 120 KEIHIN | 0 | — | Check availability | |
| 23 | 54531623122 MAIN JET 122 KEIHIN | MAIN JET 122 KEIHIN | 0 | — | Check availability | |
| 23 | 54531623125 MAIN JET 125 KEIHIN | MAIN JET 125 KEIHIN | 0 | — | Check availability | |
| 23 | 54531623128 MAIN JET 128 KEIHIN | MAIN JET 128 KEIHIN | 0 | — | Check availability | |
| 23 | 54531623130 MAIN JET 130 KEIHIN | MAIN JET 130 KEIHIN | 0 | — | Check availability | |
| 26 | 52031126000 HEXAGON NUT M 6X0,75 DIN0439 | HEXAGON NUT M 6X0,75 DIN0439 | 1 | — | Check availability | |
| 27 | 47031027000 CARBURETOR COVER PWK28 03 | CARBURETOR COVER PWK28 03 | 1 | — | Check availability | |
| 28 | 47031028000 CARBURETOR COVER GASKET PWK28 | CARBURETOR COVER GASKET PWK28 | 1 | — | Check availability | |
| 29 | 54531629000 CLIP FOR JET NEEDLE | CLIP FOR JET NEEDLE | 1 | — | Check availability | |
| 30 | 47031030000 THROTTLE VALVE SPRING | THROTTLE VALVE SPRING | 1 | — | Check availability | |
| 31 | 47031031000 SPRING CAP | SPRING CAP | 1 | — | Check availability | |
| 34 | 72531034000 JET NEEDLE KEIHIN JJK | JET NEEDLE KEIHIN JJK | 0 | — | Check availability | |
| 34 | 72531034100 JET NEEDLE KEIHIN JJJ | JET NEEDLE KEIHIN JJJ | 0 | — | Check availability | |
| 34 | 72531034200 JET NEEDLE KEIHIN JJH | JET NEEDLE KEIHIN JJH | 1 | — | Check availability | |
| 34 | 72531034300 JET NEEDLE KEIHIN JJG | JET NEEDLE KEIHIN JJG | 0 | — | Check availability | |
| 34 | 72531034400 JET NEEDLE KEIHIN JJF | JET NEEDLE KEIHIN JJF | 0 | — | Check availability | |
| 34 | 72531034500 JET NEEDLE KEIHIN JJE | JET NEEDLE KEIHIN JJE | 0 | — | Check availability | |
| 35 | 47031035000 THROTTLE VALVE 3,5 | THROTTLE VALVE 3,5 | 1 | — | Check availability | |
| 38 | 31007007101 PVC-HOSE 4X6MM | PVC-HOSE 4X6MM | 2 | — | Check availability | |
| 40 | 0016040163 HH COLLAR SCREW M 4X16 WS=6 | HH COLLAR SCREW M 4X16 WS=6 | 2 | — | Check availability | View Details |
| 46 | 54531696000 Clamp 6mm | Clamp 6mm | 3 | — | Check availability | |
| 50 | 72531021000 NEEDLE JET 14 | NEEDLE JET 14 | 1 | — | Check availability | |
| 41 | 0985040163 FLAT HEAD SCREW DIN7985-M 4X16 | FLAT HEAD SCREW DIN7985-M 4X16 | 2 | — | Check availability |
