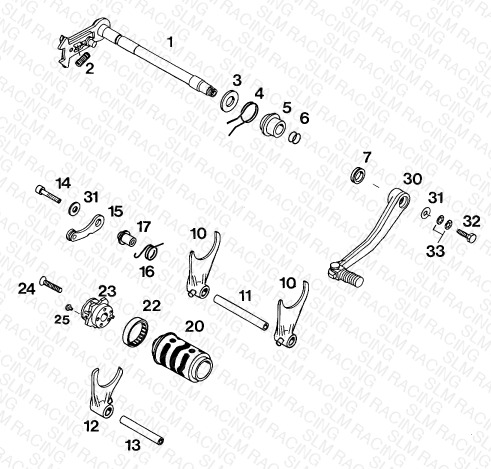

SHIFTING MECHANISM
Parts (24)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 58034005344 SHIFT SHAFT CPL. '93 | SHIFT SHAFT CPL. '93 | 1 | — | Check availability | View Details |
| 2 | 56534013100 TENSIONING SPRING 0,8MM | TENSIONING SPRING 0,8MM | 1 | — | Check availability | |
| 3 | 58034010000 STEEL WASHER 14 X 28 X 2 | STEEL WASHER 14 X 28 X 2 | 1 | — | Check availability | View Details |
| 4 | 58034014000 RETURN SPRING | RETURN SPRING | 1 | — | Check availability | View Details |
| 5 | 58034020000 SPRING BUSHING | SPRING BUSHING | 1 | — | Check availability | View Details |
| 6 | 0770125020 O-RING 12,50X2,00 NBR 70 | O-RING 12,50X2,00 NBR 70 | 2 | — | Check availability | |
| 7 | 58033027000 V-SEAL RING V-14-A | V-SEAL RING V-14-A | 1 | — | Check availability | |
| 10 | 58034002200 SHIFT FORK 1ST/4TH + 2ND GEA | SHIFT FORK 1ST/4TH + 2ND GEA | 2 | — | Check availability | |
| 11 | 58034004000 SHIFT RAIL 1ST/4TH + 2ND GEAR | SHIFT RAIL 1ST/4TH + 2ND GEAR | 1 | — | Check availability | View Details |
| 12 | 58034001100 SHIFT FORK 3RD/5TH GEAR | SHIFT FORK 3RD/5TH GEAR | 1 | — | Check availability | |
| 13 | 58034003000 SHIFT RAIL 3RD/5TH GEAR | SHIFT RAIL 3RD/5TH GEAR | 1 | — | Check availability | View Details |
| 14 | 0912060553 AH SCREW DIN0912-M 6X55 | AH SCREW DIN0912-M 6X55 | 1 | — | Check availability | |
| 15 | 58034024544 LOCATING LEVER CPL. | LOCATING LEVER CPL. | 1 | — | Check availability | View Details |
| 16 | 58034023500 SPRING | SPRING | 1 | — | Check availability | View Details |
| 17 | 58034017500 * BUSHING | * BUSHING | 1 | — | Check availability | |
| 20 | 58034012000 * SHIFT DRUM (5 SPEED) | * SHIFT DRUM (5 SPEED) | 1 | — | Check availability | |
| 22 | 50134026100 NEEDLE BEARING 30X37X7,5 | NEEDLE BEARING 30X37X7,5 | 1 | — | Check availability | |
| 23 | 58034015544 * SHIFT DRUM LOCKATOR CPL. | * SHIFT DRUM LOCKATOR CPL. | 1 | — | Check availability | |
| 24 | 0991060303 FLAT HEAD SCREW DIN7991-M 6X30 | FLAT HEAD SCREW DIN7991-M 6X30 | 1 | — | Check availability | |
| 25 | 58034016500 SHIFT BUTTON | SHIFT BUTTON | 1 | — | Check availability | View Details |
| 30 | 58034022000 * SHIFTING LEVER 4-STR. CPLALU | * SHIFTING LEVER 4-STR. CPLALU | 1 | — | Check availability | |
| 31 | 50232050000 WASHER 6,2X18X2 | WASHER 6,2X18X2 | 1 | — | Check availability | |
| 32 | 0933060163 HH SCREW DIN0933-M 6X16 | HH SCREW DIN0933-M 6X16 | 1 | — | Check availability | View Details |
| 33 | 50233041000 Pair of washers M6 NORDLOCK | Pair of washers M6 NORDLOCK | 1 | — | Check availability |
