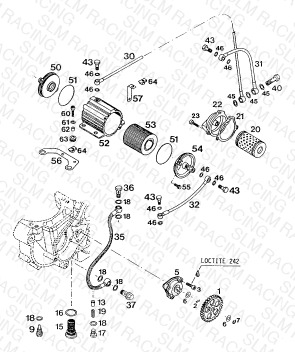

LUBRICATING SYSTEM
Parts (40)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 58038001000 OIL PUMP GEAR 31-T | OIL PUMP GEAR 31-T | 1 | — | Obsolete | View Details |
| 2 | 0402025980 NEEDLE ROLLER DIN5402 2,5X9,8 | NEEDLE ROLLER DIN5402 2,5X9,8 | 1 | $3.99 | Available | 1 |
| 3 | 0912060203 AH SCREW DIN0912-M 6X20 | AH SCREW DIN0912-M 6X20 | 1 | $2.99 | Available | 1 |
| 5 | 58038007100 OIL PUMP MIKUNI G-73 LC4' | OIL PUMP MIKUNI G-73 LC4' | 2 | — | Obsolete | View Details |
| 6 | 58038007755 STOP DISK 8,1 X 15 X 0,5 | STOP DISK 8,1 X 15 X 0,5 | 1 | $2.99 | Available | 1 |
| 7 | 0799060000 TAB WASHER DIN6799-RS 6,0 | TAB WASHER DIN6799-RS 6,0 | 1 | $2.99 | Available | 1 |
| 9 | 58030021000 OILDRAIN PLUG W.MAG. M 12X1,5 | OILDRAIN PLUG W.MAG. M 12X1,5 | 1 | $13.30 | Available | 1 |
| 13 | 58038028000 VALVE PISTON D=10MM | VALVE PISTON D=10MM | 1 | $44.43 | Available | 1 |
| 15 | 58038019000 OIL PLUG M22x1,5 | OIL PLUG M22x1,5 | 1 | — | Obsolete | View Details |
| 16 | 58038017000 SEAL RING 22x27x1 (COPPER) | SEAL RING 22x27x1 (COPPER) | 1 | $2.99 | Available | 1 |
| 17 | 0908120153 threaded plug DIN 908 M12x1.5 | threaded plug DIN 908 M12x1.5 | 1 | $4.99 | Available | 1 |
| 18 | 58038022000 CU-seal ring DIN7603-12X18X1.5 | CU-seal ring DIN7603-12X18X1.5 | 1 | $2.99 | Available | 1 |
| 19 | 58038023300 PRESSURE SPRING L=25MM D=1MM | PRESSURE SPRING L=25MM D=1MM | 1 | $6.15 | Available | 1 |
| 20 | 58038005000 OIL FILTER LONG | OIL FILTER LONG | 1 | — | Obsolete | View Details |
| 21 | 58030041000 FILTER COVER GASKET ''B'' | FILTER COVER GASKET ''B'' | 1 | $8.24 | Available | 1 |
| 22 | 58030008600 FILTER COVER M10x1 | FILTER COVER M10x1 | 1 | — | Obsolete | View Details |
| 23 | 0912060163 AH SCREW DIN0912-M 6X16 | AH SCREW DIN0912-M 6X16 | 1 | $1.99 | Available | 1 |
| 30 | 58038234200 OIL LINE FILTER/ MICRO-FILTER | OIL LINE FILTER/ MICRO-FILTER | 1 | — | Obsolete | View Details |
| 31 | 58038334600 OIL LINE FILTER/INJECT.VA. R/S | OIL LINE FILTER/INJECT.VA. R/S | 1 | — | Obsolete | View Details |
| 32 | 58038134600 OIL LINE MIC-FILTER/CLUT.COVER | OIL LINE MIC-FILTER/CLUT.COVER | 1 | — | Obsolete | View Details |
| 35 | 57538035000 OIL LINE CRANKCASE/TRANSMIS. | OIL LINE CRANKCASE/TRANSMIS. | 1 | — | Obsolete | View Details |
| 36 | 57538030000 * BANJO BOLT M12 X 1,5 DIN7643 | * BANJO BOLT M12 X 1,5 DIN7643 | 2 | — | Obsolete | View Details |
| 37 | 58038030100 BANJO BOLT M12x1,5 10 | BANJO BOLT M12x1,5 10 | 1 | — | Obsolete | View Details |
| 40 | 58038033100 DUAL BANJO BOLT M10 X 1 | DUAL BANJO BOLT M10 X 1 | 1 | $15.06 | Available | 1 |
| 43 | 58038030000 BANJO BOLT M8 X 1 DIN7643 | BANJO BOLT M8 X 1 DIN7643 | 1 | $6.15 | Available | 1 |
| 45 | 58038032010 CU-SEAL RING DIN7603-10X14X1 | CU-SEAL RING DIN7603-10X14X1 | 7 | — | Obsolete | View Details |
| 46 | 58038032000 CU-SEAL RING DIN7603- 8X12X1 | CU-SEAL RING DIN7603- 8X12X1 | 3 | — | Obsolete | View Details |
| 50 | 58038041000 MICRO FILTER COVER | MICRO FILTER COVER | 1 | — | Obsolete | View Details |
| 51 | 0770056020 O-RING 56,00X2,00 VITON | O-RING 56,00X2,00 VITON | 2 | $6.15 | Available | 2 |
| 52 | 58038043000 % MICRO FILTER HOUSING | % MICRO FILTER HOUSING | 1 | — | Obsolete | View Details |
| 53 | 58038044000 MICRO FILTER ELEMENT | MICRO FILTER ELEMENT | 1 | — | Obsolete | View Details |
| 54 | 58038042000 MICRO FILTER COVER M8x1 | MICRO FILTER COVER M8x1 | 1 | — | Obsolete | View Details |
| 55 | 0010050163 SPECIAL SCREW DIN7500-M5,0X16 | SPECIAL SCREW DIN7500-M5,0X16 | 4 | — | Obsolete | View Details |
| 56 | 57538090000 BRACKET FOR MICRO-FILTER '93 | BRACKET FOR MICRO-FILTER '93 | 1 | — | Obsolete | View Details |
| 57 | 57538091000 BRACKET MICRO-FILTER '93 | BRACKET MICRO-FILTER '93 | 1 | — | Obsolete | View Details |
| 60 | 0912050163 AH collar screw DIN 912 M5x16 | AH collar screw DIN 912 M5x16 | 1 | $1.99 | Available | 1 |
| 61 | 0021050003 washer DIN 9021 A - 5.3 | washer DIN 9021 A - 5.3 | 2 | $1.99 | Available | 2 |
| 62 | 54431032050 SPACER BUSHING 6X8X8,5 | SPACER BUSHING 6X8X8,5 | 3 | — | Obsolete | View Details |
| 63 | 31008060000 rubber grommet D=8mm open | rubber grommet D=8mm open | 2 | $2.99 | Available | 2 |
| 64 | 54603048200 RANGE CHANGE METAL NUT M5 | RANGE CHANGE METAL NUT M5 | 3 | $6.15 | Available | 3 |
