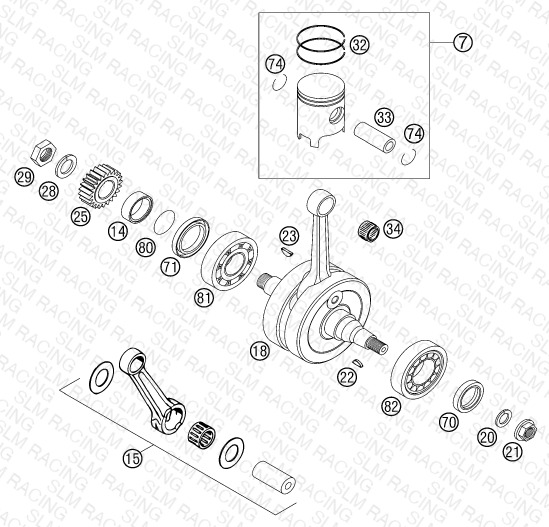

CRANKSHAFT, PISTON
Parts (32)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 14 | 54633014100 SPACER BUSHING 12MM | SPACER BUSHING 12MM | 1 | — | Check availability | |
| 7 | 50330007500 I PISTON I CPL. 54MM 125 2001 | PISTON I CPL. 54MM 125 2001 ONE RING, CAST | 1 | — | Check availability | View Details |
| 7 | 50330007500 II PISTON II CPL. 54MM 125 2001 | PISTON II CPL. 54MM 125 2001 ONE RING, CAST | 1 | — | Check availability | View Details |
| 7 | 50330007400 I PISTON I CPL. 54MM 125 '00 | PISTON I CPL. 54MM 125 '00 TWO RINGS, CAST | 1 | — | Check availability | View Details |
| 7 | 50330007400 II PISTON II CPL. 54MM 125 '00 | PISTON II CPL. 54MM 125 '00 TWO RINGS, CAST | 1 | — | Check availability | View Details |
| 7 | 52330007100 I PISTON I CPL. 64MM 200 2000 | PISTON I CPL. 64MM 200 2000 TWO RINGS, CAST | 1 | — | Check availability | View Details |
| 7 | 52330007100 II PISTON II CPL.64MM 200 2000 | PISTON II CPL.64MM 200 2000 TWO RINGS, CAST | 1 | — | Check availability | View Details |
| 15 | 50330015000 CON.ROD REPAIR KIT 125'98 | CON.ROD REPAIR KIT 125'98 | 1 | — | Check availability | View Details |
| 15 | 52330015000 CON.ROD REPAIR KIT 200'98 | CON.ROD REPAIR KIT 200'98 | 1 | — | Check availability | View Details |
| 18 | 50330018100 CRANKSHAFT 125 EXE/EXC 2001 | CRANKSHAFT 125 EXE/EXC 2001 STROKE 54,5 | 1 | — | Check availability | View Details |
| 18 | 50330018200 CRANKSHAFT 125 SX 2001 | CRANKSHAFT 125 SX 2001 STROKE 54,5 | 1 | — | Check availability | View Details |
| 18 | 52330018000 CRANKSHAFT 200 MXC/EXC ' | CRANKSHAFT 200 MXC/EXC ' STROKE 60 | 1 | — | Check availability | |
| 20 | 50230029012 LOCKING RING VSK 12 | LOCKING RING VSK 12 | 1 | — | Check availability | |
| 21 | 49030021000 COLLAR NUT M12X1 R/S | COLLAR NUT M12X1 R/S | 1 | — | Check availability | View Details |
| 22 | 0888030050 WOODRUFF KEY DIN6888-3X5X13 | WOODRUFF KEY DIN6888-3X5X13 | 1 | — | Check availability | |
| 23 | 6946005 WOODRUFF KEY 5X6,5 HARDED | WOODRUFF KEY 5X6,5 HARDED | 1 | — | Check availability | |
| 25 | 50332023023 PRIM. PINION 23-T 125/200'98 | PRIM. PINION 23-T 125/200'98 | 1 | — | Check availability | |
| 28 | 50230029016 LOCKING RING VSK 16 | LOCKING RING VSK 16 | 1 | — | Check availability | |
| 29 | 50330029000 HEXAGON NUT M 16 X 1,5 - L/S | HEXAGON NUT M 16 X 1,5 - L/S | 1 | — | Check availability | View Details |
| 32 | 50330032500 SQUARE RING 54X1 125 2001 | SQUARE RING 54X1 125 2001 | 0 | — | Check availability | View Details |
| 32 | 52330032000 SQUARE RING 64X1 200'98 | SQUARE RING 64X1 200'98 | 2 | — | Check availability | View Details |
| 33 | 50330033500 PISTON PIN 15X45,2 125 2001 | PISTON PIN 15X45,2 125 2001 | 1 | — | Check availability | |
| 33 | 52330033000 PISTON PIN 10X16X46 200' | PISTON PIN 10X16X46 200' | 1 | — | Check availability | View Details |
| 34 | 51030034000 NEEDLE BEARING KBK 15X19X20 | NEEDLE BEARING KBK 15X19X20 125 | 1 | — | Check availability | |
| 34 | 52330034000 NEEDLE BEARING KV16X20X20 FN | NEEDLE BEARING KV16X20X20 FN 200 | 1 | — | Check availability | |
| 70 | 0760253570 SHAFT SEAL RING 25X35X7 BTSL | SHAFT SEAL RING 25X35X7 BTSL | 1 | — | Check availability | |
| 71 | 0760324564 SHAFT SEAL RING 32X45X6,5 BT | SHAFT SEAL RING 32X45X6,5 BT | 1 | — | Check availability | View Details |
| 74 | 50330074500 WIRE LOCK RING 15X1 | WIRE LOCK RING 15X1 125 | 2 | — | Check availability | |
| 74 | 52330074100 WIRE LOCK RING 16X1,2 | WIRE LOCK RING 16X1,2 200 | 2 | — | Check availability | |
| 80 | 0770250020 O-RING 25,00X2,00 NBR 70 | O-RING 25,00X2,00 NBR 70 | 1 | — | Check availability | |
| 81 | 0625063055 BALL BEARING 6305 JR2 CS36 | BALL BEARING 6305 JR2 CS36 | 1 | — | Check availability | |
| 82 | 50330082000 CYL.ROLLER BEAR.NJ206 ET2XCS46 | CYL.ROLLER BEAR.NJ206 ET2XCS46 | 1 | — | Check availability |
