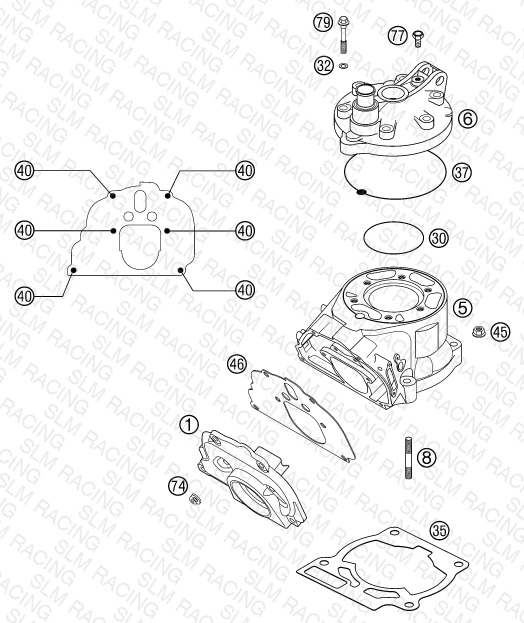

CYLINDER, CYLINDER HEAD
Parts (27)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 50337001100 INTERMEDIATE FLANGE 125 2000 | INTERMEDIATE FLANGE 125 2000 | 1 | — | Obsolete | View Details |
| 1 | 52337001200 INTERMEDIATE FLANGE 200 2000 | INTERMEDIATE FLANGE 200 2000 | 1 | — | Obsolete | View Details |
| 5 | 50330005300 CYLINDER 125 2002 | CYLINDER 125 2002 | 1 | — | Obsolete | View Details |
| 5 | 52330005200 CYLINDER 64MM 200 20 | CYLINDER 64MM 200 20 | 1 | $1293.92 | Backorder — Restocking | 1 |
| 6 | 50330006400 CYLINDER HEAD 125 SX/EXC 2002 | CYLINDER HEAD 125 SX/EXC 2002 | 1 | — | Obsolete | View Details |
| 6 | 52330006000 CYLINDER HEAD 200'98 | CYLINDER HEAD 200'98 | 1 | — | Obsolete | View Details |
| 8 | 0835080273 STUD DIN0835-M 8X27 | STUD DIN0835-M 8X27 | 4 | $3.99 | Available | 4 |
| 8 | 0835080355 STUD DIN0835-M 8X35 10.9 | STUD DIN0835-M 8X35 10.9 | 2 | $3.99 | Available | 2 |
| 30 | 0770062020 O-RING 62,00X2,00 VITON | O-RING 62,00X2,00 VITON | 1 | $10.99 | Available | 1 |
| 30 | 0770720021 O-RING 72,00X2,00 VITON | O-RING 72,00X2,00 VITON | 1 | $6.70 | Available | 1 |
| 32 | 50230032010 CU-SEAL RING 7,3 X 12 X 0,5 | CU-SEAL RING 7,3 X 12 X 0,5 | 6 | $1.99 | Available | 6 |
| 35 | 50330035007 CYL.BASE GASKET 0,07MM PAPER | CYL.BASE GASKET 0,07MM PAPER | — | $6.59 | Available | 1 |
| 35 | 50330035015 CYLINDER BASE GASKET 0,15MM | CYLINDER BASE GASKET 0,15MM | — | $6.59 | Available | 1 |
| 35 | 50330035020 CYLINDER BASE GASKET 0,20MM | CYLINDER BASE GASKET 0,20MM | — | $6.59 | Available | 1 |
| 35 | 50330035025 CYLINDER BASE GASKET 0,25MM | CYLINDER BASE GASKET 0,25MM | — | $6.59 | Available | 1 |
| 35 | 50330035040 CYLINDER BASE GASKET 0,40MM | CYLINDER BASE GASKET 0,40MM | — | $6.15 | Available | 1 |
| 35 | 50330035050 CYLINDER BASE GASKET 0,50MM | CYLINDER BASE GASKET 0,50MM | — | $6.15 | Available | 1 |
| 35 | 50330035075 CYLINDER BASE GASKET 0,75MM | CYLINDER BASE GASKET 0,75MM | — | $9.01 | Available | 1 |
| 37 | 50330137000 CYL.HEAD SEAL RING 125 2002 | CYL.HEAD SEAL RING 125 2002 125 | 1 | $14.62 | Available | 1 |
| 37 | 52330037000 CYL.HEAD GASKET 1,1MM 200'98 | CYL.HEAD GASKET 1,1MM 200'98 | 1 | $21.66 | Available | 1 |
| 40 | 0015050203 HH COLLAR SCREW M 5X20 WS=8 | HH COLLAR SCREW M 5X20 WS=8 | 1 | $2.99 | Available | 1 |
| 45 | 50330045000 HH COLLAR NUT M 8 WS=12 | HH COLLAR NUT M 8 WS=12 | 4 | $2.99 | Available | 4 |
| 46 | 50337046100 INTERMED.GASKET 1,1MM 125 2000 | INTERMED.GASKET 1,1MM 125 2000 | 1 | — | Obsolete | View Details |
| 46 | 52337046100 INTERMED.GASKET 1,1MM 200 2000 | INTERMED.GASKET 1,1MM 200 2000 | 1 | $11.21 | Available | 1 |
| 74 | 51005074000 RETAINING PLATE | RETAINING PLATE | 2 | $3.99 | Available | 2 |
| 77 | 0015060103 HH COLLAR SCREW M 6X10 WS=8 | HH COLLAR SCREW M 6X10 WS=8 | 1 | $3.99 | Available | 1 |
| 79 | 50030079000 CYL. HEAD BOLT M 7X40 WS=10 | CYL. HEAD BOLT M 7X40 WS=10 | 6 | $11.65 | Available | 6 |
