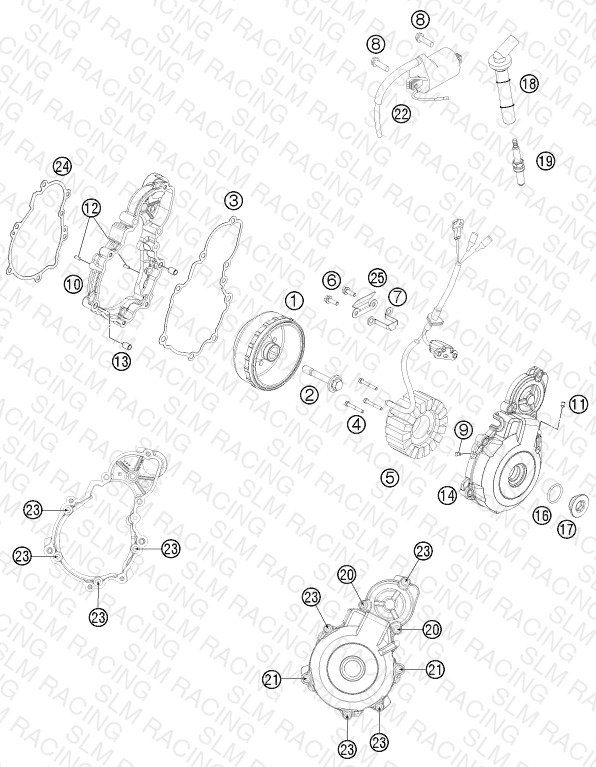

IGNITION SYSTEM
Parts (24)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 77539005144 ROTOR EFI CPL. | ROTOR EFI CPL. | 1 | $579.36 | Available | 1 |
| 2 | 77339010100 FLYWHEEL SCREW | FLYWHEEL SCREW | 1 | $6.59 | Available | 1 |
| 3 | 77530042000 IGNITION COVER GASKET | IGNITION COVER GASKET | 1 | $16.27 | Available | 1 |
| 4 | 0912050303 AH SCREW DIN0912-M 5X30 | AH SCREW DIN0912-M 5X30 | 1 | $1.99 | Available | 1 |
| 5 | 77539004000 STATOR | STATOR | 1 | $265.09 | Available | 1 |
| 6 | 0025050166 HH collar screw M5x16 TX30 | HH collar screw M5x16 TX30 | 3 | $2.99 | Available | 3 |
| 7 | 77530002050 CABLE TAB WASHER EXC | CABLE TAB WASHER EXC | 1 | $18.58 | Available | 1 |
| 8 | 0026060186 COLLAR SCREW M6X18 ISA30 | COLLAR SCREW M6X18 ISA30 | 2 | $1.99 | Available | 2 |
| 9 | 80030058060 OIL JET ''60'' M4 | OIL JET ''60'' M4 | 1 | $13.96 | Available | 1 |
| 10 | 7753000200015 IGNITION COVER INSIDE | IGNITION COVER INSIDE | 1 | $94.04 | Available | 1 |
| 11 | 0913050063 THREAD PIN DIN 913 M5X6 | THREAD PIN DIN 913 M5X6 | 1 | $1.99 | Available | 1 |
| 12 | 0402040980 Needle roll.DIN5402 NRB 4X9.8 | Needle roll.DIN5402 NRB 4X9.8 | 2 | $3.99 | Available | 2 |
| 13 | 59030023000 dowel sleeve 6x8x11.5 | dowel sleeve 6x8x11.5 | 2 | $1.99 | Available | 2 |
| 14 | 7753001200015 IGNITION COVER | IGNITION COVER | 1 | $180.17 | Available | 1 |
| 16 | 07700240251 o-ring 24.00x2.50 Viton | o-ring 24.00x2.50 Viton | 1 | $3.99 | Available | 1 |
| 17 | 7723000206030 FACTORY IGNITION COVER PLUG | FACTORY IGNITION COVER PLUG | 1 | $43.11 | Available | 1 |
| 18 | 77739090000 SPARK PLUG CONNECTOR | SPARK PLUG CONNECTOR | 1 | $81.61 | Available | 1 |
| 19 | 77839093000 spark plug | spark plug | 1 | $26.72 | Available | 1 |
| 20 | 0025060506 HH collar screw M6x50 TX30 | HH collar screw M6x50 TX30 | 11 | $3.99 | Available | 11 |
| 21 | 0025060306 HH collar screw M6x30 TX30 | HH collar screw M6x30 TX30 | 2 | $3.99 | Available | 2 |
| 22 | 58439006000 Ignition coil | Ignition coil | 1 | $88.76 | Backorder — Restocking | 1 |
| 23 | 0025060256 HH collar screw M6x25 TX30 | HH collar screw M6x25 TX30 | 4 | $3.99 | Available | 4 |
| 24 | 77530040000 IGNITION COVER GASKET | IGNITION COVER GASKET | 1 | $15.61 | Available | 1 |
| 25 | 77530002060 BRACKET | BRACKET | 1 | $9.78 | Available | 1 |
