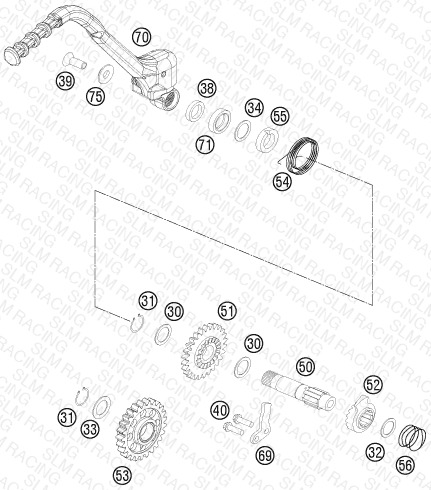

KICK STARTER
Parts (19)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 30 | 50333030000 STOP DISK 17,2X24X1 | STOP DISK 17,2X24X1 | 3 | $6.15 | Available | 3 |
| 31 | 0471170010 CIRCLIP DIN0471-17X1 | CIRCLIP DIN0471-17X1 | 2 | $2.99 | Available | 2 |
| 32 | 0988162210 THRUST WASHER DIN0988-16X22X1 | THRUST WASHER DIN0988-16X22X1 | 1 | $2.99 | Available | 1 |
| 33 | 0988172405 SHIM WASHER DIN0988-17X24X0,5 | SHIM WASHER DIN0988-17X24X0,5 | 1 | $2.99 | Available | 1 |
| 34 | 54633090000 STOP DISK 17,2X25X1 | STOP DISK 17,2X25X1 | 1 | $6.15 | Available | 1 |
| 38 | 50333038100 SPACER BUSHING 16X23X26X6,1 | SPACER BUSHING 16X23X26X6,1 | 1 | $9.56 | Available | 1 |
| 39 | 0019080206S FLAT HEAD SCREW M. ISA45 M8X20 | FLAT HEAD SCREW M. ISA45 M8X20 | 2 | $2.99 | Available | 2 |
| 40 | 0025060166 HH collar screw M6x16 TX30 | HH collar screw M6x16 TX30 | 4 | $3.99 | Available | 4 |
| 50 | 77033050000 KICKSTARTER SHAFT 05 | KICKSTARTER SHAFT 05 | 1 | $68.19 | Available | 1 |
| 51 | 77033051000 KICKSTART. GEAR 28-T 05 | KICKSTART. GEAR 28-T 05 | 1 | $81.61 | Available | 1 |
| 52 | 50333052000 KICKSTARTER RATCHET | KICKSTARTER RATCHET | 1 | $119.56 | Available | 1 |
| 53 | 77233053000 INTERMEDIATE GEAR CPL. | INTERMEDIATE GEAR CPL. | 1 | $90.52 | Available | 1 |
| 54 | 77033054000 KICKSTARTER SPRING 05 | KICKSTARTER SPRING 05 | 1 | $8.35 | Available | 1 |
| 55 | 77033055000 DRIVING HUB ´05 | DRIVING HUB ´05 | 1 | $9.45 | Available | 1 |
| 56 | 50333056000 SPRING 1,4MM '98 | SPRING 1,4MM '98 | 1 | $3.99 | Available | 1 |
| 69 | 50333069000 STOP MET.SHEET 4MM 125/200'98 | STOP MET.SHEET 4MM 125/200'98 | 1 | $18.80 | Available | 1 |
| 70 | 77133070144 KICKSTARTER CPL. | KICKSTARTER CPL. | 1 | $151.68 | Available | 1 |
| 71 | 0760172870 SHAFT SEAL RING 17X28X7 B | SHAFT SEAL RING 17X28X7 B | 1 | $9.45 | Available | 1 |
| 75 | 54633037000 WASHER 8MM GALVANIZED | WASHER 8MM GALVANIZED | 1 | $7.14 | Available | 1 |
