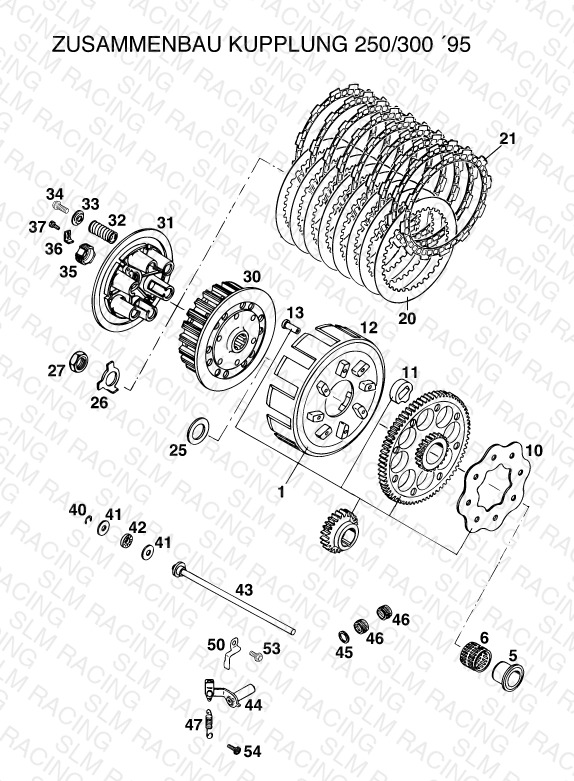

CLUTCH
Parts (31)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 54632001272 OUTER CLUTCH HUB 72T PRIM. 25T | OUTER CLUTCH HUB 72T PRIM. 25T | 1 | — | Obsolete | View Details |
| 5 | 50332070000 INNER RING WITH COLLAR | INNER RING WITH COLLAR | 1 | $57.96 | Available | 1 |
| 6 | 56532095000 NEEDLE BEARING K26X30X22ZW.KSE | NEEDLE BEARING K26X30X22ZW.KSE | 1 | $28.04 | Available | 1 |
| 10 | 58132028000 RETAINING PLATE | RETAINING PLATE | 1 | — | Obsolete | View Details |
| 11 | 58132026000 DAMPING ELEMENT | DAMPING ELEMENT | 8 | $7.14 | Available | 8 |
| 12 | 54632001200 OUTER CLUTCH HUB LOOSE | OUTER CLUTCH HUB LOOSE | 1 | — | Obsolete | View Details |
| 13 | 0733060150 CLUTCH RIVET DIN7338- 6X15 | CLUTCH RIVET DIN7338- 6X15 | 8 | $9.23 | Available | 8 |
| 20 | 54632012000 STEEL DISK 1,2 MM | STEEL DISK 1,2 MM | 8 | $13.08 | Available | 8 |
| 21 | 54632011200 LINING DISK 2,7 MM | LINING DISK 2,7 MM | 9 | — | Obsolete | View Details |
| 25 | 54632013000 | 1 | — | Obsolete | View Details | |
| 26 | 56532018000 LOCK WASHER | LOCK WASHER | 1 | $7.36 | Available | 1 |
| 27 | 0936181505 HEXAGON NUT DIN0936-M18X1,5 R. | HEXAGON NUT DIN0936-M18X1,5 R. | 1 | $9.12 | Available | 1 |
| 30 | 54632002200 INNER CLUTCH HUB | INNER CLUTCH HUB | 1 | — | Obsolete | View Details |
| 31 | 58132003000 * PRESSURE CAP | * PRESSURE CAP | 1 | — | Obsolete | View Details |
| 32 | 54632080000 CLUTCH SPRING 2,5X43 8,5W | CLUTCH SPRING 2,5X43 8,5W | 6 | $8.13 | Available | 6 |
| 33 | 58132081000 SPRING RETAINER 6,2 X 20 X 3,2 | SPRING RETAINER 6,2 X 20 X 3,2 | 6 | $3.99 | Available | 6 |
| 34 | 0912060163 AH SCREW DIN0912-M 6X16 | AH SCREW DIN0912-M 6X16 | 1 | $1.99 | Available | 1 |
| 35 | 54632004000 ADJUSTMENT SCREW M24X1 | ADJUSTMENT SCREW M24X1 | 1 | — | Obsolete | View Details |
| 36 | 54632005000 * ADJUSTMENT PLATE | * ADJUSTMENT PLATE | 1 | — | Obsolete | View Details |
| 37 | 0084040083 CYL.HEAD SCREW DIN0084-M 4X8 A | CYL.HEAD SCREW DIN0084-M 4X8 A | 6 | $1.99 | Available | 6 |
| 40 | 0799050000 TAB WASHER DIN6799 RS5 | TAB WASHER DIN6799 RS5 | 1 | $1.99 | Available | 1 |
| 41 | 49032010050 * AXIAL WASHER AS619 | * AXIAL WASHER AS619 | 2 | — | Obsolete | View Details |
| 42 | 49032010000 AXIAL-BEARING AXK0619 | AXIAL-BEARING AXK0619 | 1 | — | Obsolete | View Details |
| 43 | 54632017244 * PUSH ROD 219 MM CPL | * PUSH ROD 219 MM CPL | 1 | — | Obsolete | View Details |
| 44 | 54632014544 CLUTCH RELEASE SHAFT '93 | CLUTCH RELEASE SHAFT '93 | 1 | — | Obsolete | View Details |
| 45 | 54632090000 SEAL RING DH/GR 12X16X3 | SEAL RING DH/GR 12X16X3 | 1 | $12.97 | Available | 1 |
| 46 | 50232095000 NEEDLE BEARING HK 1210 | NEEDLE BEARING HK 1210 | 2 | — | Obsolete | View Details |
| 47 | 54632050500 RELEASE LEVER SPRING L=33MM93 | RELEASE LEVER SPRING L=33MM93 | 1 | — | Obsolete | View Details |
| 50 | 54632016500 * RELEASE RETAINING PLATE '93 | * RELEASE RETAINING PLATE '93 | 1 | — | Obsolete | View Details |
| 53 | 0912050123 AH SCREW DIN0912-M 5X12 | AH SCREW DIN0912-M 5X12 | 1 | $2.99 | Available | 1 |
| 54 | 0985050103 OVAL HEAD SCR. DIN7985-M 5X10 | OVAL HEAD SCR. DIN7985-M 5X10 | 1 | $1.99 | Available | 1 |
