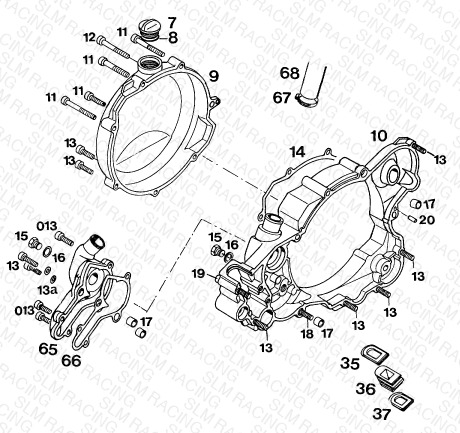

CLUTCH COVER
Parts (24)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 7 | 58030020000 PLUG M 24X3 | PLUG M 24X3 | 1 | $6.15 | Available | 1 |
| 8 | 0770160030 O-RING 16,00X3,00 NBR 70 | O-RING 16,00X3,00 NBR 70 | 1 | $2.99 | Available | 1 |
| 9 | 54630101000 FRONT RIM ASSY | FRONT RIM ASSY | 1 | — | Obsolete | View Details |
| 10 | 54630001200 CLUTCH COVER 250 VI '91 | CLUTCH COVER 250 VI '91 | 1 | — | Obsolete | View Details |
| 11 | 0015060303 HH COLLAR SCREW M 6X30 SW=8 | HH COLLAR SCREW M 6X30 SW=8 | 1 | $3.99 | Available | 1 |
| 11 | 0912060303 AH SCREW DIN0912-M 6X30 | AH SCREW DIN0912-M 6X30 | 4 | $2.99 | Available | 4 |
| 12 | 0015060703 HH COLLAR SCREW M 6X70 WS=8 | HH COLLAR SCREW M 6X70 WS=8 | 4 | $3.99 | Available | 4 |
| 12 | 0912060703 AH SCREW DIN0912-M 6X70 | AH SCREW DIN0912-M 6X70 | 1 | — | Obsolete | View Details |
| 13 | 0015060253 HH COLLAR SCREW M 6X25 WS=8 | HH COLLAR SCREW M 6X25 WS=8 | 5 | $3.99 | Available | 5 |
| 13 | 0912060253 AH SCREW DIN0912-M 6X25 | AH SCREW DIN0912-M 6X25 | 6 | $2.99 | Available | 6 |
| 14 | 54630025050 OUTER CLUTCH COVER GASKET | OUTER CLUTCH COVER GASKET | 1 | $18.80 | Available | 1 |
| 15 | 0908100003 PLUG DIN908 M10x1 | PLUG DIN908 M10x1 | 2 | — | Obsolete | View Details |
| 16 | 42013226000 CU-SEAL RING DIN7603-10X16X1 | CU-SEAL RING DIN7603-10X16X1 | 1 | $2.99 | Available | 1 |
| 17 | 49030090000 DOWEL 9,8 X 7 X 10 | DOWEL 9,8 X 7 X 10 | 2 | $2.99 | Available | 2 |
| 19 | 0015060453 HH COLLAR SCREW M 6X45 WS=8 | HH COLLAR SCREW M 6X45 WS=8 | 1 | $2.99 | Available | 1 |
| 19 | 0912060453 AH SCREW DIN0912-M 6X45 | AH SCREW DIN0912-M 6X45 | 4 | $2.99 | Available | 4 |
| 20 | 0007050200 CYLINDER STUD DIN 7-5X20MM(M6) | CYLINDER STUD DIN 7-5X20MM(M6) | 1 | — | Obsolete | View Details |
| 35 | 54637207000 SEALING ELEMENT TOP | SEALING ELEMENT TOP | 1 | $8.24 | Available | 1 |
| 36 | 54637007000 GASKET | GASKET | 1 | — | Obsolete | View Details |
| 37 | 54637107000 SEALING ELEMENT BOTTOM | SEALING ELEMENT BOTTOM | 1 | $8.68 | Available | 1 |
| 65 | 54635001000 WATER PUMP COVER | WATER PUMP COVER | 1 | — | Obsolete | View Details |
| 66 | 54635003200 WATER PUMP COVER GASKET | WATER PUMP COVER GASKET | 1 | $7.47 | Available | 1 |
| 67 | 10001020000 HOSE CLAMP GEMI 18-29 | HOSE CLAMP GEMI 18-29 | 6 | $2.99 | Available | 6 |
| 68 | 56535025001 RADIATOR HOSE 18X25 PER METRE | RADIATOR HOSE 18X25 PER METRE | — | $48.94 | Available | 1 |
