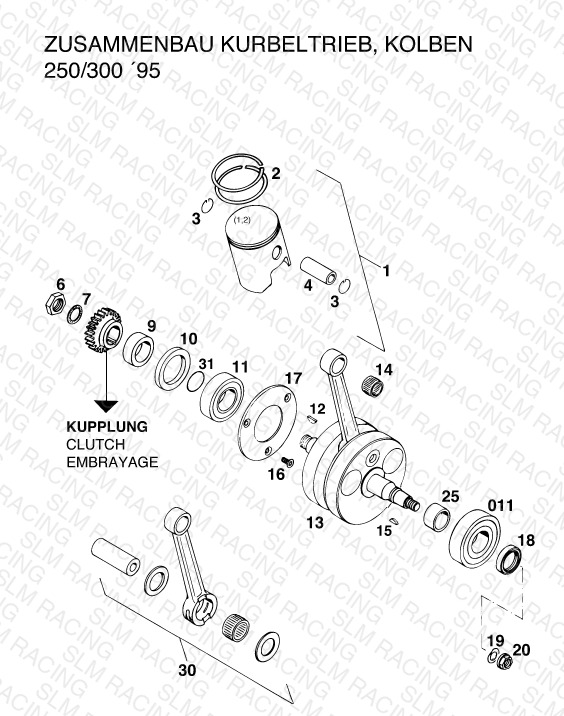

CRANKSHAFT, PISTON
Parts (23)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 2 | 54630032000 SQUARE RING 67,5X1 250 CC | SQUARE RING 67,5X1 250 CC | 2 | — | Check availability | View Details |
| 2 | 54630332000 SQUARE RING 72,0X1,25 300 CC | SQUARE RING 72,0X1,25 300 CC | 2 | — | Check availability | View Details |
| 3 | 54330074000 WIRE LOCK RING SKA 18 | WIRE LOCK RING SKA 18 | 2 | — | Check availability | |
| 4 | 54630033000 PISTON PIN 18 X 44 | PISTON PIN 18 X 44 | 1 | — | Check availability | View Details |
| 6 | 54630029000 HEX.NUT L/SH M18X1,5 | HEX.NUT L/SH M18X1,5 | 1 | — | Check availability | |
| 7 | 58132072000 LOCK WASHER VSK 18 | LOCK WASHER VSK 18 | 1 | — | Check availability | |
| 9 | 54630016200 SPACER SLEEVE 28X38X14 | SPACER SLEEVE 28X38X14 | 1 | — | Check availability | View Details |
| 10 | 0760385273 SHAFT SEAL RING 38X52X7BTSL | SHAFT SEAL RING 38X52X7BTSL | 1 | — | Check availability | |
| 11 | 0625062064 BALL BEARING 6206 TNH C4 | BALL BEARING 6206 TNH C4 | 1 | — | Check availability | |
| 11 | 0625063061 BALL BEARING 6306 C4 | BALL BEARING 6306 C4 | 1 | — | Check availability | View Details |
| 12 | 0888050650 WOODRUFF KEY DIN6888-5X6,5 | WOODRUFF KEY DIN6888-5X6,5 | 1 | — | Check availability | |
| 13 | 54630018300 *CRANKSHAFT 250 VI STROKE 69,5 | *CRANKSHAFT 250 VI STROKE 69,5 | 1 | — | Check availability | |
| 13 | 54630318300 % CRANKSHAFT 300CC STROKE 73 | % CRANKSHAFT 300CC STROKE 73 | 1 | — | Check availability | |
| 14 | 54430034000 NEEDLE BEARING KBK 18X22X20 | NEEDLE BEARING KBK 18X22X20 | 1 | — | Check availability | |
| 15 | 0888030050 WOODRUFF KEY DIN6888-3X5X13 | WOODRUFF KEY DIN6888-3X5X13 | 1 | — | Check availability | |
| 16 | 0991060122 FLAT HEAD SCREW DIN7991-M 6X | FLAT HEAD SCREW DIN7991-M 6X | 3 | — | Check availability | |
| 17 | 54430019000 * RETAINING PLATE MAIN BEARING | * RETAINING PLATE MAIN BEARING | 1 | — | Check availability | |
| 18 | 0760253570 SHAFT SEAL RING 25X35X7 BTSL | SHAFT SEAL RING 25X35X7 BTSL | 1 | — | Check availability | |
| 19 | 54330029000 SPRING WASHER B12X22 | SPRING WASHER B12X22 | 1 | — | Check availability | |
| 20 | 49030021000 COLLAR NUT M12X1 R/S | COLLAR NUT M12X1 R/S | 1 | — | Check availability | View Details |
| 25 | 54530023000 INNER RING 25X30X17 | INNER RING 25X30X17 | 1 | — | Check availability | View Details |
| 30 | 54630015044 CONR.REP.KIT 250/300 132MM '96 | CONR.REP.KIT 250/300 132MM '96 | 1 | — | Check availability | View Details |
| 31 | 0770250015 O-RING 25,00X1,50 NBR 70 | O-RING 25,00X1,50 NBR 70 | 1 | — | Check availability |
