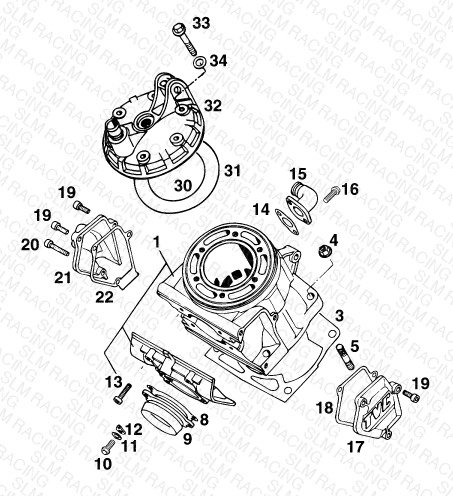

CYLINDER
Parts (31)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 54630005444 CYLINDER CPL.WITH FLANGE '93 | CYLINDER CPL.WITH FLANGE '93 | 1 | — | Check availability | View Details |
| 1 | 54630305444 CYLINDER CPL.W.FLANGE 300CC'93 | CYLINDER CPL.W.FLANGE 300CC'93 | 1 | — | Check availability | View Details |
| 3 | 54630030003 CYLINDER BASE GASKET 0,30MM | CYLINDER BASE GASKET 0,30MM | 0 | — | Check availability | View Details |
| 3 | 54630030005 CYLINDER BASE GASKET 0,50MM | CYLINDER BASE GASKET 0,50MM | 0 | — | Check availability | |
| 3 | 54630030010 CYLINDER BASE GASKET 1MM OILIT | CYLINDER BASE GASKET 1MM OILIT | 0 | — | Check availability | View Details |
| 4 | 54630044000 COLLAR NUT M10 WS=13 | COLLAR NUT M10 WS=13 | 4 | — | Check availability | View Details |
| 5 | 0835100351 STUD DIN0835-M10X35 | STUD DIN0835-M10X35 | 4 | — | Check availability | |
| 8 | 54630046000 EXHAUST FLANGE GASKET | EXHAUST FLANGE GASKET | 9 | — | Check availability | |
| 9 | 54605073000 EXHAUST FLANGE | EXHAUST FLANGE | 1 | — | Check availability | View Details |
| 10 | 0912060163 AH SCREW DIN0912-M 6X16 | AH SCREW DIN0912-M 6X16 | 3 | — | Check availability | |
| 11 | 0137060000 SPRING WASHER DIN0137-B 6 | SPRING WASHER DIN0137-B 6 | 3 | — | Check availability | |
| 12 | 51005074000 RETAINING PLATE | RETAINING PLATE | 1 | — | Check availability | |
| 13 | 0912060303 AH SCREW DIN0912-M 6X30 | AH SCREW DIN0912-M 6X30 | 4 | — | Check availability | |
| 14 | 54435037000 GASKET | GASKET | 1 | — | Check availability | View Details |
| 15 | 50235006000 CONNECTING TUBE 125/IV | CONNECTING TUBE 125/IV | 1 | — | Check availability | View Details |
| 16 | 0912060203 AH SCREW DIN0912-M 6X20 | AH SCREW DIN0912-M 6X20 | 3 | — | Check availability | |
| 17 | 54637105000 CONTROL COVER L/S | CONTROL COVER L/S | 1 | — | Check availability | View Details |
| 18 | 54637106000 GASKET FOR SIDE COVER | GASKET FOR SIDE COVER | 1 | — | Check availability | |
| 19 | 0912050123 AH SCREW DIN0912-M 5X12 | AH SCREW DIN0912-M 5X12 | 5 | — | Check availability | |
| 20 | 0912050303 AH SCREW DIN0912-M 5X30 | AH SCREW DIN0912-M 5X30 | 1 | — | Check availability | |
| 21 | 54637005000 CONTROL COVER R/S | CONTROL COVER R/S | 1 | — | Check availability | View Details |
| 22 | 54637006100 GASKET FOR CONTROL COVER | GASKET FOR CONTROL COVER | 1 | — | Check availability | |
| 30 | 0770740021 0-RING 74,00X2,00 SILICONE | 0-RING 74,00X2,00 SILICONE | 1 | — | Check availability | View Details |
| 30 | 0770780021 0-RING 78,00X2,00 SILICON | 0-RING 78,00X2,00 SILICON | 1 | — | Check availability | |
| 31 | 0770114020 O-RING 114,00X2,00 SILICONE | O-RING 114,00X2,00 SILICONE | 1 | — | Check availability | |
| 32 | 54630006400 CYLINDER HEAD 250 '94 | CYLINDER HEAD 250 '94 | 1 | — | Check availability | |
| 32 | 54630306400 CYLINDER HEAD 300 '94 | CYLINDER HEAD 300 '94 | 1 | — | Check availability | |
| 33 | 56530079000 HH COLLAR SCREW M 8X44 WS13 | HH COLLAR SCREW M 8X44 WS13 | 6 | — | Check availability | View Details |
| 34 | 56530080000 CU-SEAL RING 8 X 16 X 1 | CU-SEAL RING 8 X 16 X 1 | 6 | — | Check availability | |
| 37 | 0912060083 AH collar screw DIN 912 M6x8 | AH collar screw DIN 912 M6x8 | 1 | — | Check availability | |
| 38 | 58036065000 CU-SEAL RING 6 X 10 X 1 | CU-SEAL RING 6 X 10 X 1 | 1 | — | Check availability |
