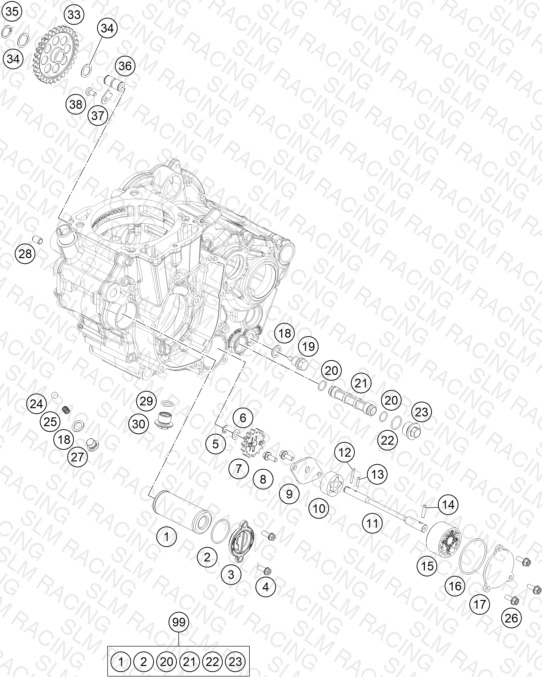

LUBRICATING SYSTEM
Parts (37)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 77338005100 Oil Filter 07 | Oil Filter 07 | 1 | — | Check availability | |
| 2 | 07703305178 O-RING 33,05X1,78 | O-RING 33,05X1,78 | 1 | — | Check availability | |
| 3 | 77338041200 OIL FILTER COVER 08 | OIL FILTER COVER 08 | 1 | — | Check availability | |
| 4 | 0025060166 HH collar screw M6x16 TX30 | HH collar screw M6x16 TX30 | 2 | — | Check availability | |
| 5 | 0799060000 TAB WASHER DIN6799-RS 6,0 | TAB WASHER DIN6799-RS 6,0 | 1 | — | Check availability | |
| 6 | 58038007755 STOP DISK 8,1 X 15 X 0,5 | STOP DISK 8,1 X 15 X 0,5 | 1 | — | Check availability | |
| 7 | 77038001200 Oil pump gear | Oil pump gear | 1 | — | Check availability | |
| 8 | 0025050146S Hex coll. screw M5x14 ISA30 se | Hex coll. screw M5x14 ISA30 se | 2 | — | Check availability | |
| 9 | A48038003000 Oil pump cover | Oil pump cover | 1 | — | Check availability | |
| 10 | 59038011112 OILPUMP ROTOR-SET 12MM CPL. | OILPUMP ROTOR-SET 12MM CPL. | 1 | — | Check availability | |
| 11 | A48038002000 Oil pump shaft | Oil pump shaft | 1 | — | Check availability | |
| 12 | 0402251980 NEEDLEROL.DIN5402 NRA 2,5X19,8 | NEEDLEROL.DIN5402 NRA 2,5X19,8 | 1 | — | Check availability | |
| 13 | 0402251180 NEEDLE ROLLER DIN5402 2,5X11,8 | NEEDLE ROLLER DIN5402 2,5X11,8 | 1 | — | Check availability | |
| 14 | 0402041580 needle roller NRB 4x15.8 G2 | needle roller NRB 4x15.8 G2 | 1 | — | Check availability | |
| 15 | 61238011100 ROTOR SET 22MM | ROTOR SET 22MM | 1 | — | Check availability | |
| 16 | 0770440020 O-RING 44,00X2,00 VITON | O-RING 44,00X2,00 VITON | 1 | — | Check availability | |
| 17 | 79238004000 OIL PUMP COVER LEFT | OIL PUMP COVER LEFT | 1 | — | Check availability | |
| 18 | 58038022000 CU-seal ring DIN7603-12X18X1.5 | CU-seal ring DIN7603-12X18X1.5 | 2 | — | Check availability | |
| 19 | 58030021100 oildrain plug with magnet | oildrain plug with magnet | 1 | — | Check availability | |
| 20 | 07701250151 O-RING 12,5X1,5 VITON V75 | O-RING 12,5X1,5 VITON V75 | 2 | — | Check availability | |
| 21 | 59038016200 Oil screen | Oil screen | 1 | — | Check availability | |
| 22 | 0770020170 O-RING 17,17X1,78 GLO | O-RING 17,17X1,78 GLO | 1 | — | Check availability | |
| 23 | 59038017100 PLUG M20X1,5 WS=13 | PLUG M20X1,5 WS=13 | 1 | — | Check availability | |
| 24 | 0401090003 BALL DIN5401-9 | BALL DIN5401-9 | 1 | — | Check availability | |
| 25 | A48038026000 Compression spring | Compression spring | 1 | — | Check availability | |
| 26 | 0025050146S Hex coll. screw M5x14 ISA30 se | Hex coll. screw M5x14 ISA30 se | 3 | — | Check availability | |
| 27 | 78036024000 PLUG SCREW SAS M12X1,5 | PLUG SCREW SAS M12X1,5 | 1 | — | Check availability | |
| 29 | 0770012021 O-RING 12X2 VITON GREEN | O-RING 12X2 VITON GREEN | 1 | — | Check availability | |
| 30 | 0900001600200 Screw plug M16x1.5 | Screw plug M16x1.5 | 1 | — | Check availability | |
| 33 | A48038006033 Oil pump intermediate gear 31T | Oil pump intermediate gear 31T | 1 | — | Check availability | |
| 34 | 0988121805 SHIM WASHER DIN0988-12X18X0,50 | SHIM WASHER DIN0988-12X18X0,50 | 2 | — | Check availability | |
| 35 | 0471120010 retaining ring DIN 471 12x1 | retaining ring DIN 471 12x1 | 1 | — | Check availability | |
| 99 | A48038015010 OILFILTER SERVICE KIT 450/500 | OILFILTER SERVICE KIT 450/500 | 0 | — | Check availability | |
| 36 | 77038013100 BUSHING PIN | BUSHING PIN | 1 | — | Check availability | |
| 37 | 77238061050 AXIAL-CIRCLIP | AXIAL-CIRCLIP | 1 | — | Check availability | |
| 38 | 0018050103S Oval head screw DIN 7985-M5x10 | Oval head screw DIN 7985-M5x10 | 1 | — | Check availability | |
| 28 | 59030023100 Dowel, 6x8x11.5 | Dowel, 6x8x11.5 | 1 | — | Check availability |
