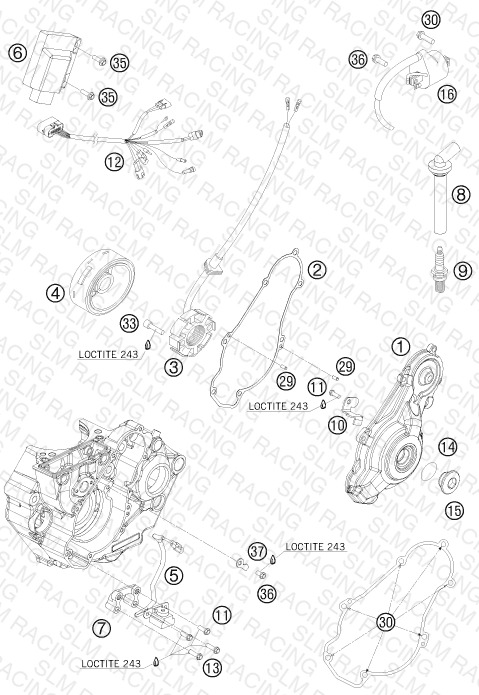

IGNITION SYSTEM
Parts (22)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 7733000210015 IGNITION COVER 09 | IGNITION COVER 09 | 1 | $122.64 | Available | 1 |
| 2 | 77330040100 IGNITION COVER GASKET | IGNITION COVER GASKET | 1 | $9.89 | Available | 1 |
| 3 | 77339004000 STATOR SX 06 | STATOR SX 06 | 1 | — | Obsolete | View Details |
| 4 | 77039005000 FLYWHEEL 05 | FLYWHEEL 05 | 1 | — | Obsolete | View Details |
| 5 | 77339034000 PULSER COIL KOKUSAN ''PU5165'' | PULSER COIL KOKUSAN ''PU5165'' | 1 | — | Obsolete | View Details |
| 6 | 77339031000 CDI UNIT KOKUSAN 450 SX-F 07 | CDI UNIT KOKUSAN 450 SX-F 07 | 1 | — | Obsolete | View Details |
| 7 | 77339035100 ADAPTER PULSER COIL | ADAPTER PULSER COIL | 1 | — | Obsolete | View Details |
| 8 | 77339090000 SPARK PLUG | SPARK PLUG | 1 | $46.74 | Available | 1 |
| 9 | 77039093000 SPARK PLUG NGK CR9EKB ´05 | SPARK PLUG NGK CR9EKB ´05 | 1 | $15.83 | Available | 1 |
| 10 | 77330002050 WIRE RETAINING BRACKET | WIRE RETAINING BRACKET | 1 | — | Obsolete | View Details |
| 11 | 0025050106 HH collar screw M5x10 TX30 | HH collar screw M5x10 TX30 | 1 | $1.99 | Available | 1 |
| 12 | 77339032000 WIRING HARNESS FOR CDI-BOX | WIRING HARNESS FOR CDI-BOX | 1 | $138.48 | Available | 1 |
| 13 | 0025050256 HH COLLAR SCREW M5X25 ISA30 | HH COLLAR SCREW M5X25 ISA30 | 1 | $1.99 | Available | 1 |
| 14 | 0770220020 o-ring 22.00x2.00 NBR70 | o-ring 22.00x2.00 NBR70 | 1 | $2.99 | Available | 1 |
| 15 | 6003009400030 threaded plug M24x1.5 PA 6.6 | threaded plug M24x1.5 PA 6.6 | 1 | $4.99 | Available | 1 |
| 16 | 59039006000 IGNITIONCOIL ''IG5128'' | IGNITIONCOIL ''IG5128'' | 1 | $77.87 | Available | 1 |
| 29 | 0402040980 Needle roll.DIN5402 NRB 4X9.8 | Needle roll.DIN5402 NRB 4X9.8 | 2 | $3.99 | Available | 2 |
| 30 | 0025060206 HH collar screw M6x20 TX30 | HH collar screw M6x20 TX30 | 6 | $3.99 | Available | 6 |
| 33 | 0912050253 AH SCREW DIN0912-M 5X25 | AH SCREW DIN0912-M 5X25 | 2 | $1.20 | Available | 2 |
| 35 | 0023060123 COLLAR SCREW M6X12 TX | COLLAR SCREW M6X12 TX | 4 | $2.99 | Available | 4 |
| 36 | 0025060166 HH collar screw M6x16 TX30 | HH collar screw M6x16 TX30 | 4 | $3.99 | Available | 4 |
| 37 | 77340097100 RETAINING PLATE F.PICKUPCABEL | RETAINING PLATE F.PICKUPCABEL | 1 | $4.99 | Available | 1 |
