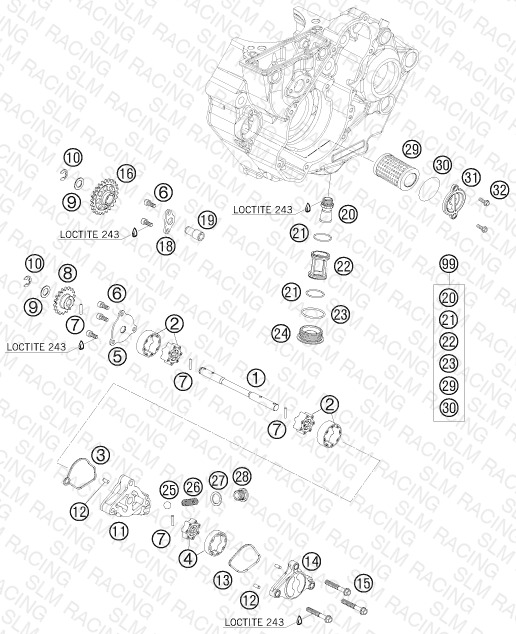

LUBRICATING SYSTEM
Parts (32)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 2 | 77338107100 SUCTION PUMP CPL. | SUCTION PUMP CPL. | 2 | — | Check availability | View Details |
| 5 | 77338004100 PUMP COVER 07 | PUMP COVER 07 | 1 | — | Check availability | |
| 6 | 0912050123 AH SCREW DIN0912-M 5X12 | AH SCREW DIN0912-M 5X12 | 5 | — | Check availability | |
| 7 | 0402031580 NEEDLE ROLLER DIN5402 3X15,8 | NEEDLE ROLLER DIN5402 3X15,8 | 4 | — | Check availability | |
| 8 | 77338001100 OIL PUMP GEAR 18-T | OIL PUMP GEAR 18-T | 1 | — | Check availability | |
| 9 | 77338023000 WASHER 10,2X18X1 | WASHER 10,2X18X1 | 2 | — | Check availability | |
| 10 | 0799080000 retaining washer DIN 6799 - 8 | retaining washer DIN 6799 - 8 | 2 | — | Check availability | |
| 11 | 77338010100 PRESSURE PUMP CASE | PRESSURE PUMP CASE | 1 | — | Check availability | |
| 12 | 0402040980 Needle roll.DIN5402 NRB 4X9.8 | Needle roll.DIN5402 NRB 4X9.8 | 3 | — | Check availability | |
| 13 | 77338112000 GASKET PRESSURE PUMP COVER | GASKET PRESSURE PUMP COVER | 1 | — | Check availability | |
| 14 | 77338013100 PRESSURE PUMP COVER | PRESSURE PUMP COVER | 1 | — | Check availability | |
| 15 | 0025060406 HH collar screw M6x40 TX30 | HH collar screw M6x40 TX30 | 3 | — | Check availability | |
| 16 | 77338000150 OILPUMP IDLER GEAR 24-T. | OILPUMP IDLER GEAR 24-T. | 1 | — | Check availability | |
| 18 | 77338061050 LOCK WASHER BEARING BOLT | LOCK WASHER BEARING BOLT | 1 | — | Check availability | |
| 19 | 77338061000 BEARING BOLT | BEARING BOLT | 1 | — | Check availability | View Details |
| 20 | 77338022000 OIL INTAKE SNORKEL | OIL INTAKE SNORKEL | 1 | — | Check availability | |
| 21 | 0770023015 O-RING 23,00X1,50 NBR 70 | O-RING 23,00X1,50 NBR 70 | 2 | — | Check availability | |
| 22 | 77338016100 OIL SCREEN CPL. | OIL SCREEN CPL. | 1 | — | Check availability | |
| 23 | 0770300020 O-RING 30X2,0 FPM | O-RING 30X2,0 FPM | 1 | — | Check availability | |
| 24 | 77338019100 PLUG SCREW | PLUG SCREW | 1 | — | Check availability | |
| 25 | 0401100000 BALL D=10 DIN 5401 | BALL D=10 DIN 5401 | 1 | — | Check availability | |
| 26 | 77338026100 COIL SPRING | COIL SPRING | 1 | — | Check availability | |
| 27 | 0603142016 CU-SEAL RING 14X20X1,5 LC8 02 | CU-SEAL RING 14X20X1,5 LC8 02 | 1 | — | Check availability | |
| 28 | 60038033050 PLUG SCREW M14X1,5 ALU AH | PLUG SCREW M14X1,5 ALU AH | 1 | — | Check availability | |
| 29 | 77338005100 Oil Filter 07 | Oil Filter 07 | 1 | — | Check availability | |
| 30 | 07703305178 O-RING 33,05X1,78 | O-RING 33,05X1,78 | 1 | — | Check availability | |
| 31 | 77338041200 OIL FILTER COVER 08 | OIL FILTER COVER 08 | 1 | — | Check availability | |
| 3 | 77338012000 GASKET PRESSURE PUMP CASE | GASKET PRESSURE PUMP CASE | 1 | — | Check availability | |
| 4 | 77338207100 PRESSURE PUMP PEEK D=9MM | PRESSURE PUMP PEEK D=9MM | 1 | — | Check availability | View Details |
| 32 | 0025060166 HH collar screw M6x16 TX30 | HH collar screw M6x16 TX30 | 2 | — | Check availability | |
| 1 | 77338002100 OIL PUMP SHAFT | OIL PUMP SHAFT | 1 | — | Check availability | |
| 99 | 00050000064 OILFILTER SERVICE KIT 450/505 | OILFILTER SERVICE KIT 450/505 | 0 | — | Check availability |
