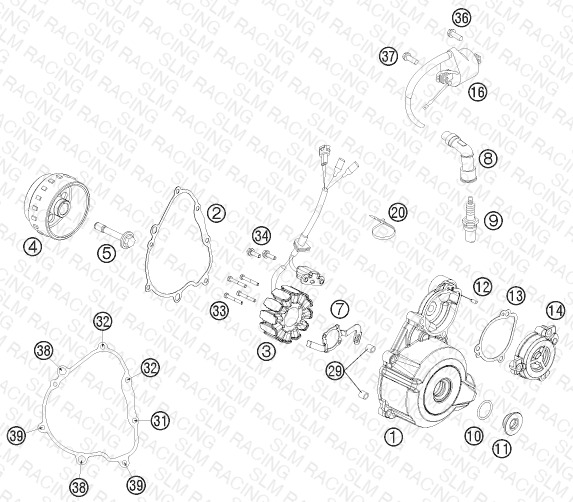

IGNITION SYSTEM
Parts (24)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 7713000200015 IGNITION COVER SX E-START | IGNITION COVER SX E-START | 1 | $155.31 | Available | 1 |
| 2 | 77130040000 IGNITION COVER GASKET | IGNITION COVER GASKET | 1 | $26.39 | Available | 1 |
| 3 | 77139004000 STATOR | STATOR | 1 | — | Obsolete | View Details |
| 4 | 77239005100 ROTOR EFI | ROTOR EFI | 1 | — | Obsolete | View Details |
| 5 | 77339010100 FLYWHEEL SCREW | FLYWHEEL SCREW | 1 | $6.59 | Available | 1 |
| 7 | 77130002050 RETAINING PLATE | RETAINING PLATE | 1 | — | Obsolete | View Details |
| 8 | 77139090000 SPARK PLUG CONNECTOR | SPARK PLUG CONNECTOR | 1 | $44.19 | Available | 1 |
| 9 | 77039093000 SPARK PLUG NGK CR9EKB ´05 | SPARK PLUG NGK CR9EKB ´05 | 1 | $15.83 | Available | 1 |
| 10 | 07700240251 o-ring 24.00x2.50 Viton | o-ring 24.00x2.50 Viton | 1 | $3.99 | Available | 1 |
| 11 | 7723000206030 FACTORY IGNITION COVER PLUG | FACTORY IGNITION COVER PLUG | 1 | $43.11 | Available | 1 |
| 12 | 0402040980 Needle roll.DIN5402 NRB 4X9.8 | Needle roll.DIN5402 NRB 4X9.8 | 2 | $3.99 | Available | 2 |
| 13 | 77240043000 GASKET TORQUE LIMITER | GASKET TORQUE LIMITER | 1 | $4.99 | Available | 1 |
| 14 | 7723000201015 COVER TORQUE LIMITER | COVER TORQUE LIMITER | 1 | $131.99 | Available | 1 |
| 16 | 58439006000 Ignition coil | Ignition coil | 1 | $88.76 | Backorder — Restocking | 1 |
| 20 | 44011076140 CABLE TIE 140/2,5MM BLACK | CABLE TIE 140/2,5MM BLACK | 1 | $1.99 | Available | 1 |
| 29 | 49030090000 DOWEL 9,8 X 7 X 10 | DOWEL 9,8 X 7 X 10 | 2 | $2.99 | Available | 2 |
| 31 | 0025060306 HH collar screw M6x30 TX30 | HH collar screw M6x30 TX30 | 2 | $3.99 | Available | 2 |
| 32 | 0025060506 HH collar screw M6x50 TX30 | HH collar screw M6x50 TX30 | 11 | $3.99 | Available | 11 |
| 33 | 0012040303 AH SCREW DIN6912 M4x30 | AH SCREW DIN6912 M4x30 | 4 | $2.99 | Available | 4 |
| 34 | 0025050126 HH collar screw M5x12 TX30 | HH collar screw M5x12 TX30 | 1 | $3.99 | Available | 1 |
| 36 | 0025060166 HH collar screw M6x16 TX30 | HH collar screw M6x16 TX30 | 4 | $3.99 | Available | 4 |
| 37 | 0025060206 HH collar screw M6x20 TX30 | HH collar screw M6x20 TX30 | 6 | $3.99 | Available | 6 |
| 38 | 0025060356 HH collar screw M6x35 TX30 | HH collar screw M6x35 TX30 | 2 | $3.99 | Available | 2 |
| 39 | 0025060906 HH COLLAR SCREW M6X90 TX30 | HH COLLAR SCREW M6X90 TX30 | 2 | $3.99 | Available | 2 |
