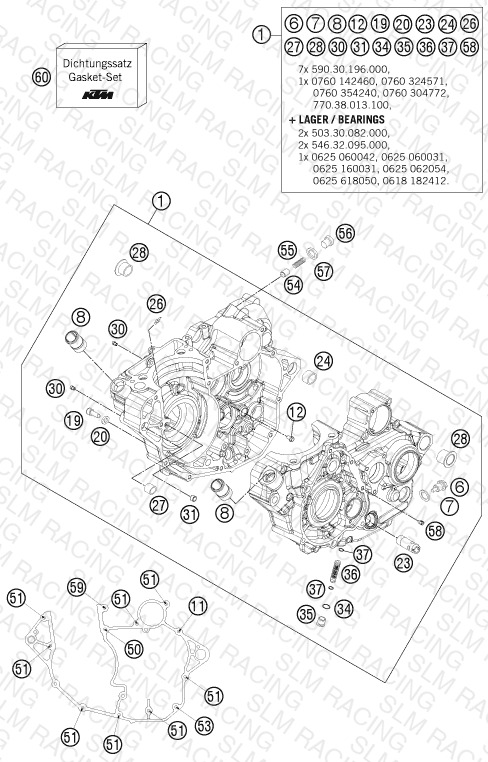

ENGINE CASE
Parts (28)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 77130000044 ENGINE CASE CPL. W.TR.BEAR. | ENGINE CASE CPL. W.TR.BEAR. | 1 | — | Obsolete | View Details |
| 6 | 58030021000 OILDRAIN PLUG W.MAG. M 12X1,5 | OILDRAIN PLUG W.MAG. M 12X1,5 | 1 | $13.30 | Available | 1 |
| 7 | 58038022000 CU-seal ring DIN7603-12X18X1.5 | CU-seal ring DIN7603-12X18X1.5 | 1 | $2.99 | Available | 1 |
| 8 | 58030010200 SCREW IN NOZZLE M20X1,5 | SCREW IN NOZZLE M20X1,5 | 1 | $10.44 | Available | 1 |
| 11 | 0025060406 HH collar screw M6x40 TX30 | HH collar screw M6x40 TX30 | 1 | $3.99 | Available | 1 |
| 12 | 0025060086 HH collar screw M6x8 TX30 | HH collar screw M6x8 TX30 | 1 | $2.99 | Available | 1 |
| 19 | 58030080000 LOCATING SCREW M8 L=23 | LOCATING SCREW M8 L=23 | 1 | $14.84 | Available | 1 |
| 20 | 58030081000 CU-SEAL RING 8 X 14 X 3 | CU-SEAL RING 8 X 14 X 3 | 1 | $2.99 | Available | 1 |
| 23 | 77038022000 OIL INTAKEPIPE | OIL INTAKEPIPE | 1 | $8.13 | Available | 1 |
| 24 | 59030024000 DOWEL 17 X 19 X 12 | DOWEL 17 X 19 X 12 | 1 | $6.15 | Available | 1 |
| 26 | 60030064070 OIL JET 70 M6X0,75 WS8 03 | OIL JET 70 M6X0,75 WS8 03 | 1 | $13.52 | Available | 1 |
| 27 | 54630027000 DOWEL BUSHING 13,8X11X12 | DOWEL BUSHING 13,8X11X12 | 1 | $8.13 | Available | 1 |
| 28 | 75030010000 CASE BUSH | CASE BUSH | 2 | $10.11 | Available | 2 |
| 30 | 59030058000 JET 100 BING(44-031/180) M4 | JET 100 BING(44-031/180) M4 | 2 | $4.99 | Available | 2 |
| 31 | 77130023000 DOWEL 6X8X5,5 | DOWEL 6X8X5,5 | 1 | — | Obsolete | View Details |
| 34 | 0770120020 O-RING 12,00X2,00 NBR 70 | O-RING 12,00X2,00 NBR 70 | 1 | $2.99 | Available | 1 |
| 35 | 77038017000 SCREW PLUG | SCREW PLUG | 1 | $19.79 | Available | 1 |
| 36 | 59038015100 OIL SCREEN 11,8x44,5MM | OIL SCREEN 11,8x44,5MM | 1 | $14.84 | Available | 1 |
| 37 | 0770090015 O-RING 9X1,5 NBR | O-RING 9X1,5 NBR | 2 | $2.99 | Available | 2 |
| 50 | 0025060656 HH COLLAR SCREW M6X65 TX30 | HH COLLAR SCREW M6X65 TX30 | 1 | $2.99 | Available | 1 |
| 51 | 0025060506 HH collar screw M6x50 TX30 | HH collar screw M6x50 TX30 | 11 | $3.99 | Available | 11 |
| 53 | 0025060306 HH collar screw M6x30 TX30 | HH collar screw M6x30 TX30 | 2 | $3.99 | Available | 2 |
| 54 | 58038028000 VALVE PISTON D=10MM | VALVE PISTON D=10MM | 1 | $44.43 | Available | 1 |
| 55 | 58038023300 PRESSURE SPRING L=25MM D=1MM | PRESSURE SPRING L=25MM D=1MM | 1 | $6.15 | Available | 1 |
| 56 | 0908120153 threaded plug DIN 908 M12x1.5 | threaded plug DIN 908 M12x1.5 | 1 | $4.99 | Available | 1 |
| 58 | 80030058060 OIL JET ''60'' M4 | OIL JET ''60'' M4 | 1 | $13.96 | Available | 1 |
| 59 | 0025060606 HH collar screw M6x60 TX30 | HH collar screw M6x60 TX30 | 1 | $3.99 | Available | 1 |
| 60 | 77030099100 GASKET SET 05-11 | GASKET SET 05-11 | 1 | — | Obsolete | View Details |
