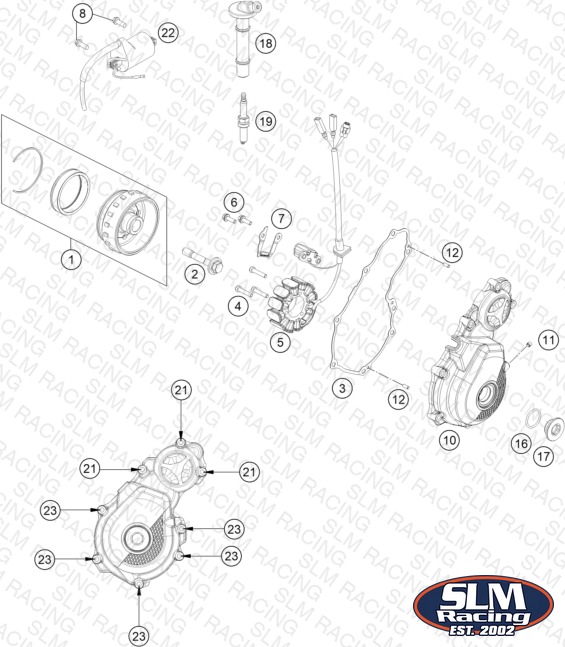

IGNITION SYSTEM
Parts (18)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 79239105144 Rotor cpl. | Rotor cpl. | 1 | $236.93 | Available | 1 |
| 2 | 77339010100 FLYWHEEL SCREW | FLYWHEEL SCREW | 1 | $6.59 | Available | 1 |
| 3 | A46030040000 Ignition cover gasket | Ignition cover gasket | 1 | $10.55 | Available | 1 |
| 4 | 0012050303S Cap head screw DIN 6912 - M5x3 | Cap head screw DIN 6912 - M5x3 | 3 | $1.99 | Available | 3 |
| 5 | 79239104100 Stator | Stator | 1 | $266.74 | Backorder — Restocking | 1 |
| 6 | 0912050163S Cap head screw DIN912 - M5x16 | Cap head screw DIN912 - M5x16 | 2 | $1.99 | Available | 2 |
| 7 | A46030502050 Cable retainer | Cable retainer | 1 | $4.99 | Available | 1 |
| 8 | 0025060206 HH collar screw M6x20 TX30 | HH collar screw M6x20 TX30 | 2 | $3.99 | Available | 2 |
| 10 | A46030502000C1 Ignition cover | Ignition cover | 1 | $144.53 | Available | 1 |
| 11 | 0913050063S THREAD PIN DIN 913 M5X6 | THREAD PIN DIN 913 M5X6 | 1 | $1.99 | Available | 1 |
| 12 | 0402040980 Needle roll.DIN5402 NRB 4X9.8 | Needle roll.DIN5402 NRB 4X9.8 | 2 | $3.99 | Available | 2 |
| 16 | 0770024025 O-RING 24X2,5 NBR | O-RING 24X2,5 NBR | 1 | — | Obsolete | View Details |
| 17 | 7723000216030 SCREW PLUG M24X1,5 | SCREW PLUG M24X1,5 | 1 | $43.11 | Available | 1 |
| 18 | 79139090000 Resistor Plug Cover | Resistor Plug Cover | 1 | $69.40 | Backorder — Restocking | 1 |
| 19 | 77839093000 spark plug | spark plug | 1 | $26.72 | Available | 1 |
| 21 | 0025060306 HH collar screw M6x30 TX30 | HH collar screw M6x30 TX30 | 3 | $3.99 | Available | 3 |
| 22 | 58439006000 Ignition coil | Ignition coil | 1 | $88.76 | Backorder — Restocking | 1 |
| 23 | 0025060406 HH collar screw M6x40 TX30 | HH collar screw M6x40 TX30 | 5 | $3.99 | Available | 5 |
