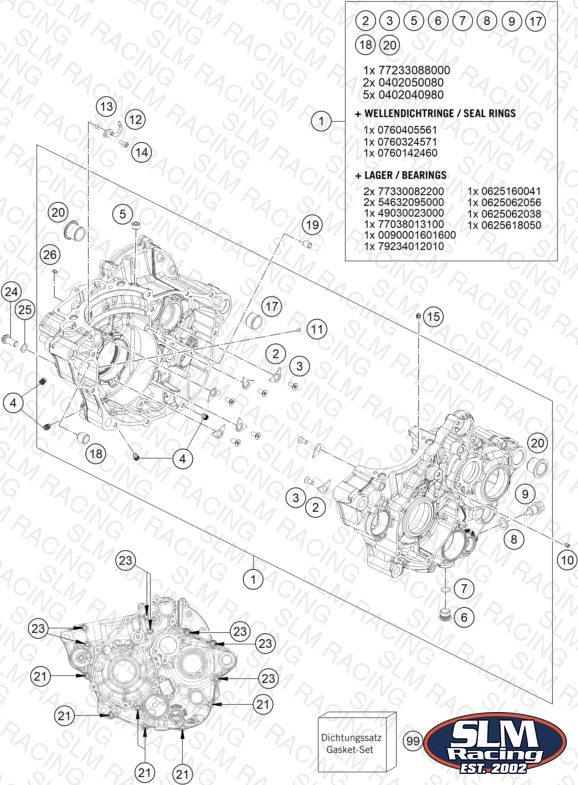

ENGINE CASE
Parts (25)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | A46030000044 engine case cpl. | engine case cpl. | 1 | $1047.41 | Available | 1 |
| 2 | 75030085100 Retaining bracket crankshaft b | Retaining bracket crankshaft b | 7 | $1.99 | Available | 7 |
| 3 | 0019050121S INT. TORX FLAT HEAD M5X12 T25 | INT. TORX FLAT HEAD M5X12 T25 | 7 | $2.99 | Available | 7 |
| 4 | 59030296000 SCREW PLUG | SCREW PLUG | 4 | $7.36 | Available | 4 |
| 5 | 0906100100 pipe plug DIN 906 M10x1 | pipe plug DIN 906 M10x1 | 1 | $4.99 | Available | 1 |
| 6 | 78036081000 HOLDING BOLT M14X1,5 | HOLDING BOLT M14X1,5 | 1 | $3.99 | Available | 1 |
| 7 | 0770110015 O-ring 11x1.5 VITON | O-ring 11x1.5 VITON | 1 | $6.15 | Available | 1 |
| 8 | 58038022000 CU-seal ring DIN7603-12X18X1.5 | CU-seal ring DIN7603-12X18X1.5 | 1 | $2.99 | Available | 1 |
| 9 | 58030021100 oildrain plug with magnet | oildrain plug with magnet | 1 | $13.30 | Available | 1 |
| 10 | 80030058060 OIL JET ''60'' M4 | OIL JET ''60'' M4 | 1 | $13.96 | Available | 1 |
| 11 | 79330058040 Nozzle | Nozzle | 1 | $10.55 | Available | 1 |
| 12 | 81230164050 OIL JET ANGLED 50 | OIL JET ANGLED 50 | 1 | $13.30 | Available | 1 |
| 13 | 0770035020 O-RING 3,5X2,00 NBR | O-RING 3,5X2,00 NBR | 1 | $1.99 | Available | 1 |
| 14 | 0912040103S Cylinder screw DIN 912-M4x10-8 | Cylinder screw DIN 912-M4x10-8 | 1 | $1.99 | Available | 1 |
| 15 | 60030063050 oil jet 50 M5 | oil jet 50 M5 | 1 | $11.10 | Available | 1 |
| 17 | 54830027100 Dowel, 21x12 | Dowel, 21x12 | 1 | $6.15 | Available | 1 |
| 18 | 54630027000 DOWEL BUSHING 13,8X11X12 | DOWEL BUSHING 13,8X11X12 | 1 | $8.13 | Available | 1 |
| 19 | 59030023100 Dowel, 6x8x11.5 | Dowel, 6x8x11.5 | 1 | $1.99 | Available | 1 |
| 20 | 79230010000 Housing bush | Housing bush | 2 | $13.96 | Available | 2 |
| 21 | 0025060556 HH collar screw M6x55 TX30 | HH collar screw M6x55 TX30 | 5 | $3.99 | Available | 5 |
| 23 | 0025060706 HH COLLAR SCREW M6X70 TX30 | HH COLLAR SCREW M6X70 TX30 | 7 | $3.99 | Available | 7 |
| 24 | 0000150802000 Screw, M8x20 SW=8 8.8 | Screw, M8x20 SW=8 8.8 | 1 | $1.99 | Available | 1 |
| 25 | 0603082131 COPPER Gask.DIN7603- 8.2X13X1 | COPPER Gask.DIN7603- 8.2X13X1 | 1 | $2.99 | Available | 1 |
| 99 | A46030099000 Engine seal kit 250cc | Engine seal kit 250cc | 1 | $298.86 | Backorder — Restocking | 1 |
| 26 | 80030058040 Oil jet "40" M4 | Oil jet "40" M4 | 1 | $3.99 | Available | 1 |
