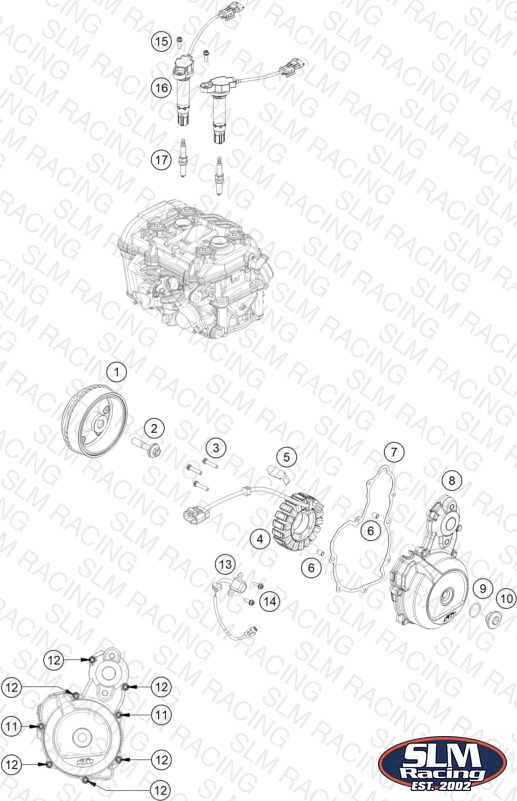

IGNITION SYSTEM
Parts (17)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 63539105000 Rotor, loose | Rotor, loose | 1 | $395.77 | Available | 1 |
| 2 | 60339003000 special screw M12x1.5 WS15 | special screw M12x1.5 WS15 | 1 | $23.09 | Available | 1 |
| 3 | 0025060306S HH collar screw M6x30 TX30 | HH collar screw M6x30 TX30 | 3 | $3.99 | Available | 3 |
| 4 | 63539104000 Stator loose | Stator loose | 1 | $136.06 | Available | 1 |
| 5 | 60039040020 generator line bracket | generator line bracket | 1 | $3.99 | Available | 1 |
| 6 | 59030023000 dowel sleeve 6x8x11.5 | dowel sleeve 6x8x11.5 | 2 | $1.99 | Available | 2 |
| 7 | 63530040000 ignition cover gasket | ignition cover gasket | 1 | $21.11 | Available | 1 |
| 8 | 63530602000JA Ignition cover | Ignition cover | 1 | $82.49 | Available | 1 |
| 9 | 07700240251 o-ring 24.00x2.50 Viton | o-ring 24.00x2.50 Viton | 1 | $3.99 | Available | 1 |
| 10 | 6003009400030 threaded plug M24x1.5 PA 6.6 | threaded plug M24x1.5 PA 6.6 | 1 | $4.99 | Available | 1 |
| 11 | 0025060356 HH collar screw M6x35 TX30 | HH collar screw M6x35 TX30 | 2 | $3.99 | Available | 2 |
| 12 | 0025060306 HH collar screw M6x30 TX30 | HH collar screw M6x30 TX30 | 6 | $3.99 | Available | 6 |
| 13 | 59039134000 Crankshaft position sensor | Crankshaft position sensor | 1 | $23.75 | Backorder — Restocking | 1 |
| 14 | 0025050166S HH Collar Screw M5x16 ISA30 SS | HH Collar Screw M5x16 ISA30 SS | 2 | $1.99 | Available | 2 |
| 15 | 0025060166 HH collar screw M6x16 TX30 | HH collar screw M6x16 TX30 | 2 | $3.99 | Available | 2 |
| 16 | 63539006000 stick coil | stick coil | 2 | — | Obsolete | View Details |
| 17 | 77839093000 spark plug | spark plug | 2 | $26.72 | Available | 2 |
