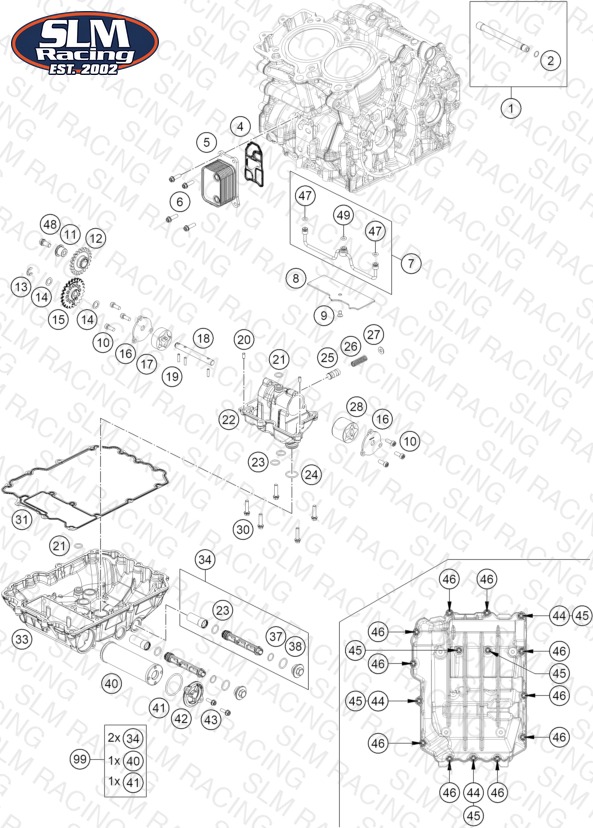

LUBRICATING SYSTEM
Parts (44)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 63530065000 Gearbox lubrication pipe cmpl. | Gearbox lubrication pipe cmpl. | 1 | $33.98 | Available | 1 |
| 2 | 0770010010 o-ring 10.00x1.00 NBR70 | o-ring 10.00x1.00 NBR70 | 1 | $2.99 | Available | 1 |
| 4 | 63538051000 gasket with support sheet | gasket with support sheet | 1 | $33.43 | Available | 1 |
| 5 | 63638050000 Oil radiator, cmpl. | Oil radiator, cmpl. | 1 | $71.60 | Available | 1 |
| 6 | 0025060206S HH collar screw M6x20 TX30 | HH collar screw M6x20 TX30 | 4 | $2.99 | Available | 4 |
| 7 | 63538035000 oil line | oil line | 1 | $88.21 | Available | 1 |
| 8 | 63530086010 pressure plate | pressure plate | 1 | $6.15 | Available | 1 |
| 9 | 0019050121S INT. TORX FLAT HEAD M5X12 T25 | INT. TORX FLAT HEAD M5X12 T25 | 1 | $2.99 | Available | 1 |
| 10 | 014580060166S SHCS ISO 14580 M6x16 SL | SHCS ISO 14580 M6x16 SL | 6 | $2.99 | Available | 6 |
| 11 | 63638003000 Bearing bolt | Bearing bolt | 1 | $14.29 | Available | 1 |
| 12 | 63538001022 oil pump idler wheel 22 teeth | oil pump idler wheel 22 teeth | 1 | $31.41 | Available | 1 |
| 13 | 0799080000 retaining washer DIN 6799 - 8 | retaining washer DIN 6799 - 8 | 1 | $1.99 | Available | 1 |
| 14 | 60038007010 washer 10x16x0.5 | washer 10x16x0.5 | 1 | $2.99 | Available | 1 |
| 15 | 60038001224 oil pump gear 24 teeth | oil pump gear 24 teeth | 1 | $17.48 | Available | 1 |
| 16 | 63538008050 oil pump cover plate | oil pump cover plate | 2 | $9.89 | Available | 2 |
| 17 | 60038011100 eaton pump set 14mm | eaton pump set 14mm | 1 | $53.01 | Available | 1 |
| 18 | 63538002000 oil pump shaft | oil pump shaft | 1 | $14.51 | Available | 1 |
| 19 | 0402041580 needle roller NRB 4x15.8 G2 | needle roller NRB 4x15.8 G2 | 3 | $2.99 | Available | 3 |
| 20 | 0402050980 needle roller DIN 5402 5x9.8 | needle roller DIN 5402 5x9.8 | 2 | $1.99 | Available | 2 |
| 21 | 0770120020 O-RING 12,00X2,00 NBR 70 | O-RING 12,00X2,00 NBR 70 | 2 | $2.99 | Available | 2 |
| 22 | 63538012000 Oil Pumphousing | Oil Pumphousing | 1 | $96.90 | Available | 1 |
| 23 | 0770140200 O-RING 14,00X2,00 | O-RING 14,00X2,00 | 4 | $2.99 | Available | 4 |
| 24 | 0770020020 O-RING 20X2 VITON | O-RING 20X2 VITON | 1 | $4.83 | Available | 1 |
| 25 | 60038128000 control piston | control piston | 1 | $6.15 | Available | 1 |
| 26 | 63538026000 oil pressure spring | oil pressure spring | 1 | $1.99 | Available | 1 |
| 27 | 50337073000 shim | shim | 1 | $2.99 | Available | 1 |
| 28 | 61238010100 eaton pump set 30mm | eaton pump set 30mm | 1 | $28.29 | Available | 1 |
| 30 | 0025060256 HH collar screw M6x25 TX30 | HH collar screw M6x25 TX30 | 5 | $3.99 | Available | 5 |
| 31 | 63530086000 oil sump gasket | oil sump gasket | 1 | $19.90 | Available | 1 |
| 33 | 63530085000C1 Oil pan | Oil pan | 1 | $207.01 | Available | 1 |
| 34 | 61238021100 oil screen cpl. | oil screen cpl. | 2 | $30.79 | Available | 2 |
| 37 | 0770125015 O-RING 12,5X1,5 NBR | O-RING 12,5X1,5 NBR | 2 | $2.99 | Available | 2 |
| 38 | 0770170200 O-RING 17,00X2,00 | O-RING 17,00X2,00 | 2 | $2.99 | Available | 2 |
| 40 | 61338015200 OIL FILTER | OIL FILTER | 1 | $16.99 | Available | 1 |
| 41 | 07700390261 O-RING 39,34X2,62 | O-RING 39,34X2,62 | 1 | $2.99 | Available | 1 |
| 42 | 75038041200 oil filter cover | oil filter cover | 1 | $9.56 | Available | 1 |
| 43 | 0025050166 HH collar screw M5x16 TX30 | HH collar screw M5x16 TX30 | 2 | $2.99 | Available | 2 |
| 44 | 59030023000 dowel sleeve 6x8x11.5 | dowel sleeve 6x8x11.5 | 3 | $1.99 | Available | 3 |
| 45 | 0025060356 HH collar screw M6x35 TX30 | HH collar screw M6x35 TX30 | 5 | $3.99 | Available | 5 |
| 46 | 0025060306 HH collar screw M6x30 TX30 | HH collar screw M6x30 TX30 | 10 | $3.99 | Available | 10 |
| 47 | 0770060025 O-Ring 6x2.5 | O-Ring 6x2.5 | 2 | $6.09 | Available | 2 |
| 48 | 0025080166S HH collar screw M8x16 TX40 SL | HH collar screw M8x16 TX40 SL | 1 | $3.99 | Available | 1 |
| 49 | 0770070025 O-Ring 7x2,50 HNBR | O-Ring 7x2,50 HNBR | 1 | $6.26 | Available | 1 |
| 99 | 00050000068 OILFILTER SERVICE KIT | OILFILTER SERVICE KIT | — | $91.73 | Available | 1 |
