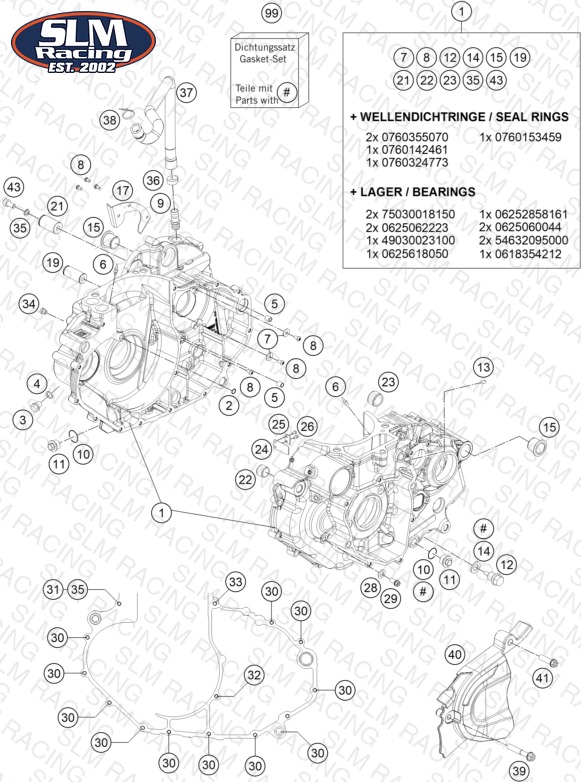

ENGINE CASE
Parts (39)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 7663010014424 Engine case cmpl. | Engine case cmpl. | 1 | $1631.29 | Available | 1 |
| 2 | 0770060018 O-RING 6,07X1,78 FPM75 | O-RING 6,07X1,78 FPM75 | 1 | $2.99 | Available | 1 |
| 3 | 0910100003 PLUG DIN0910-M 10X1 | PLUG DIN0910-M 10X1 | 1 | $4.99 | Available | 1 |
| 4 | 0603100141 sealing ring DIN 7603 10x14x1 | sealing ring DIN 7603 10x14x1 | 1 | $2.99 | Available | 1 |
| 5 | 59030023100 Dowel, 6x8x11.5 | Dowel, 6x8x11.5 | 3 | $1.99 | Available | 3 |
| 6 | 60030064050 OIL JET 50 M6X0,75 WS8 05 | OIL JET 50 M6X0,75 WS8 05 | 2 | $12.53 | Available | 2 |
| 7 | 0021050003 washer DIN 9021 A - 5.3 | washer DIN 9021 A - 5.3 | 4 | $1.99 | Available | 4 |
| 8 | 073801050105S Oval head screw ISR M5x10-10.9 | Oval head screw ISR M5x10-10.9 | 8 | $1.99 | Available | 8 |
| 9 | 60030022000 VENTILATION CONNECTOR M16X1,5 | VENTILATION CONNECTOR M16X1,5 | 1 | $9.78 | Available | 1 |
| 10 | 0770180020 o-ring 18.00x2.00 NBR70 | o-ring 18.00x2.00 NBR70 | 2 | $2.99 | Available | 2 |
| 11 | 59038017100 PLUG M20X1,5 WS=13 | PLUG M20X1,5 WS=13 | 2 | $9.23 | Available | 2 |
| 12 | 58030021100 oildrain plug with magnet | oildrain plug with magnet | 1 | $13.30 | Available | 1 |
| 13 | 76638029030 Jet screw M4x8 | Jet screw M4x8 | 1 | $6.15 | Available | 1 |
| 14 | 58038022000 CU-seal ring DIN7603-12X18X1.5 | CU-seal ring DIN7603-12X18X1.5 | 1 | $2.99 | Available | 1 |
| 15 | 79230010000 Housing bush | Housing bush | 2 | $13.96 | Available | 2 |
| 17 | 75030042000 COVER | COVER | 1 | $22.87 | Available | 1 |
| 19 | 54633018400 BUSHING PIN | BUSHING PIN | 1 | $25.73 | Available | 1 |
| 21 | 59040028000 BUSHING PIN | BUSHING PIN | 1 | $12.31 | Available | 1 |
| 22 | 51030026100 DOWEL 17 X 13 X 12 | DOWEL 17 X 13 X 12 | 1 | $7.58 | Available | 1 |
| 23 | 54830027000 DOWEL 21X12 03 | DOWEL 21X12 03 | 1 | $6.15 | Available | 1 |
| 24 | 75030003051 MEMBRANE 07 | MEMBRANE 07 | 1 | $2.99 | Available | 1 |
| 25 | 75030003050 STOP SHEET MEMBRANE 07 | STOP SHEET MEMBRANE 07 | 1 | $2.99 | Available | 1 |
| 26 | 0458030080 CYLIND.SCREW M3X8 ISO 14580 SS | CYLIND.SCREW M3X8 ISO 14580 SS | 2 | $3.99 | Available | 2 |
| 28 | 0603082121 SEAL RING CU DIN7603- 8X12X1 | SEAL RING CU DIN7603- 8X12X1 | 1 | $3.99 | Available | 1 |
| 29 | 0025080166 HH COLLAR SCREW M8X16 TX40 | HH COLLAR SCREW M8X16 TX40 | 1 | $4.99 | Available | 1 |
| 30 | 0025060306 HH collar screw M6x30 TX30 | HH collar screw M6x30 TX30 | 11 | $3.99 | Available | 11 |
| 31 | 0025060256 HH collar screw M6x25 TX30 | HH collar screw M6x25 TX30 | 1 | $3.99 | Available | 1 |
| 32 | 0025060706 HH COLLAR SCREW M6X70 TX30 | HH COLLAR SCREW M6X70 TX30 | 1 | $3.99 | Available | 1 |
| 33 | 0025060806 HH COLLAR SCREW M6X80 TX30 | HH COLLAR SCREW M6X80 TX30 | 1 | $2.99 | Available | 1 |
| 34 | 75030058160 JET 160 | JET 160 | 1 | $6.81 | Available | 1 |
| 35 | 0603061001 CU-SEAL RING DIN7603-6X10X1 | CU-SEAL RING DIN7603-6X10X1 | 2 | $2.99 | Available | 2 |
| 36 | 00050220706 VARIABLE ONE-EAR CLAMP 22,0MM | VARIABLE ONE-EAR CLAMP 22,0MM | 1 | $3.99 | Available | 1 |
| 37 | 27030089000 Vent hose | Vent hose | 1 | $25.62 | Available | 1 |
| 38 | 44011076200 Cable tie 200/4.6mm black | Cable tie 200/4.6mm black | — | $1.99 | Available | 1 |
| 39 | 0025060406 HH collar screw M6x40 TX30 | HH collar screw M6x40 TX30 | 1 | $3.99 | Available | 1 |
| 40 | 76530060044 CHAIN GUARD CPL. 08 | CHAIN GUARD CPL. 08 | 1 | $15.39 | Available | 1 |
| 41 | 0025080356 HH collar screw M8x35 TX40 | HH collar screw M8x35 TX40 | 1 | $4.83 | Available | 1 |
| 43 | 0912060123 AH SCREW DIN0912-M 6X12 | AH SCREW DIN0912-M 6X12 | 1 | $3.99 | Available | 1 |
| 99 | 76630099100 Gasket kit 690 Duke 18 | Gasket kit 690 Duke 18 | 1 | $277.52 | Backorder — Restocking | 1 |
