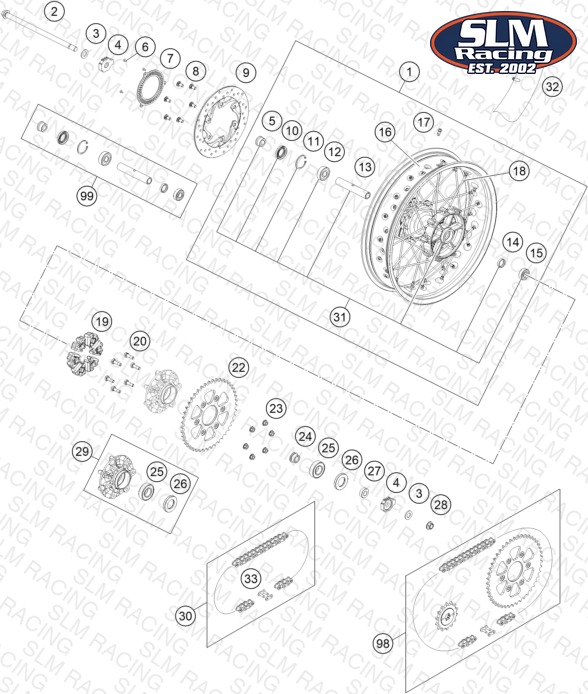

REAR WHEEL
Parts (35)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 2851000104401A Rear wheel 4x17" cmpl. Svartpi | Rear wheel 4x17" cmpl. Svartpi | 1 | — | Check availability | |
| 2 | 90210085000 Axle rear KT03 | Axle rear KT03 | 1 | — | Check availability | |
| 3 | 0125140003 Washer ISO 7089 - 14 | Washer ISO 7089 - 14 | 2 | — | Check availability | |
| 4 | 90110084000 chain tension adjuster, right | chain tension adjuster, right | 2 | — | Check availability | |
| 5 | 28510013000 spacer rear wheel rh | spacer rear wheel rh | 1 | — | Check availability | |
| 6 | 0991040083S flat head screw DIN 7991 M4x8 | flat head screw DIN 7991 M4x8 | 3 | — | Check availability | |
| 7 | 28542021000 Rear sensor wheel | Rear sensor wheel | 1 | — | Check availability | |
| 8 | 28510062000 special screw M8x16 SL | special screw M8x16 SL | 6 | — | Check availability | |
| 9 | 90110060000 rear brake disk D=230mm | rear brake disk D=230mm | 1 | — | Check availability | |
| 10 | 0760264280 Shaft sealing 26x42x8 NBR | Shaft sealing 26x42x8 NBR | 1 | — | Check availability | |
| 11 | 0472042175 CIRCLIP DIN0472-42X1,75 | CIRCLIP DIN0472-42X1,75 | 1 | — | Check availability | |
| 12 | 0625063020 BALL BEARING | BALL BEARING | 1 | — | Check availability | |
| 13 | 28510011000 Collar bearing | Collar bearing | 1 | — | Check availability | |
| 14 | 28509015000 Supporter | Supporter | 1 | — | Check availability | |
| 15 | 0625062028 BALL BEARING 6202-2RSH/C3 | BALL BEARING 6202-2RSH/C3 | 1 | — | Check availability | |
| 16 | 28510073000 rim tape 17"/60 1200 | rim tape 17"/60 1200 | 1 | — | Check availability | |
| 17 | 28510072000 Spoke nipple M5x0.8 | Spoke nipple M5x0.8 | 36 | — | Check availability | View Details |
| 18 | 2851007117030 Spoke M5/4.37/170 black | Spoke M5/4.37/170 black | 18 | — | Check availability | |
| 18 | 2851007118230 Spoke M5/4.37/182 black | Spoke M5/4.37/182 black | 18 | — | Check availability | |
| 19 | 90210059100 rear wheel dampening rubber | rear wheel dampening rubber | 6 | — | Check availability | |
| 20 | 28510053000 special screw M8x27 SL | special screw M8x27 SL | 6 | — | Check availability | |
| 22 | 90510051045 rear sprocket 45 teeth | rear sprocket 45 teeth | 1 | — | Check availability | |
| 23 | 06923080003 Hex. nut DIN EN 1661 M8 WS13 | Hex. nut DIN EN 1661 M8 WS13 | 6 | — | Check availability | |
| 24 | 28510016000 spacer sprocket carrier inside | spacer sprocket carrier inside | 1 | — | Check availability | View Details |
| 25 | 0625062052 Grooved ball bear. 6205-2RSHC3 | Grooved ball bear. 6205-2RSHC3 | 1 | — | Check availability | |
| 26 | 0760305271 Radial shaft seal 30X52X7 | Radial shaft seal 30X52X7 | 1 | — | Check availability | |
| 27 | 28510014000 spacer sprocket carrier | spacer sprocket carrier | 1 | — | Check availability | View Details |
| 28 | 77204087000 hex nut M14x1.5 WS17 | hex nut M14x1.5 WS17 | 1 | — | Check availability | |
| 29 | 2851005004433 Rear sprocket mount cpl. | Rear sprocket mount cpl. | 1 | — | Check availability | View Details |
| 30 | 76910065118 chain DID 118 roll | chain DID 118 roll | 1 | — | Check availability | |
| 31 | 2851001004433 Rear hub cpl. | Rear hub cpl. | 1 | — | Check availability | |
| 98 | 00050002059 DRIVETRAIN KIT 390 DUKE 2015 | DRIVETRAIN KIT 390 DUKE 2015 | 0 | — | Check availability | View Details |
| 99 | 28510015000 Rear wheel repair kit | Rear wheel repair kit | 0 | — | Check availability | |
| 32 | 28510075000 tube 17" | tube 17" | 1 | — | Check availability | |
| 33 | 76910066000 Rivet link chain DID 520 VP2-T | Rivet link chain DID 520 VP2-T | 0 | — | Check availability |
