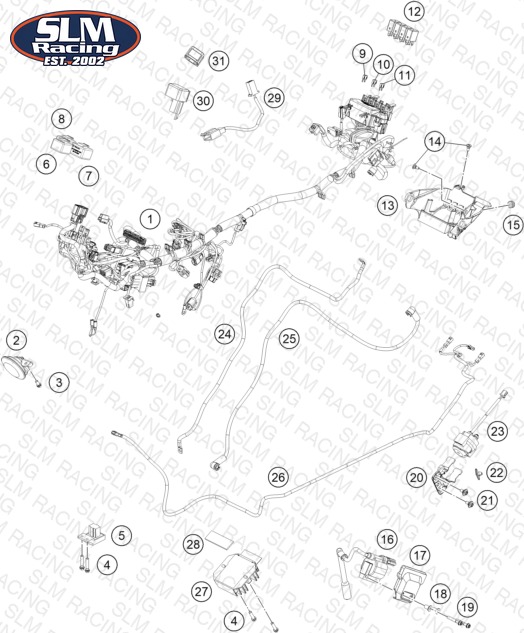

WIRING HARNESS
Parts (31)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 28511075000 Main wiring harness | Main wiring harness | 1 | — | Check availability | |
| 2 | 64111060133 Direct current horn cpl. | Direct current horn cpl. | 1 | — | Check availability | |
| 3 | 0025060126 HH collar screw M6x12 TX30 | HH collar screw M6x12 TX30 | 1 | — | Check availability | |
| 4 | 0025060306 HH collar screw M6x30 TX30 | HH collar screw M6x30 TX30 | 4 | — | Check availability | |
| 5 | 93541088000 rollover sensor | rollover sensor | 1 | — | Check availability | |
| 6 | 93811043000 resistor | resistor | 1 | — | Check availability | |
| 7 | 90511030000 indicator relay | indicator relay | 1 | — | Check availability | |
| 8 | 93539010000 Start OK control unit | Start OK control unit | 1 | — | Check availability | |
| 9 | 75011088010 FUSE 10A 07 | FUSE 10A 07 | 9 | — | Check availability | |
| 10 | 75011088015 FUSE 15A 07 | FUSE 15A 07 | 3 | — | Check availability | |
| 11 | 75011088030 FUSE 30A | FUSE 30A | 2 | — | Check availability | |
| 12 | 90611057000 relay (interlock) | relay (interlock) | 4 | — | Check availability | |
| 13 | 28511052000 Electrical system holding comp | Electrical system holding comp | 1 | — | Check availability | |
| 14 | 69008021160 special screw M5x12 | special screw M5x12 | 2 | — | Check availability | |
| 15 | 31008060000 rubber grommet D=8mm open | rubber grommet D=8mm open | 3 | — | Check availability | |
| 16 | 90239006044 ignition coil cpl. with plug | ignition coil cpl. with plug | 1 | — | Check availability | View Details |
| 17 | 28539006050 Ignition coil cover | Ignition coil cover | 1 | — | Check availability | |
| 18 | 28539006040 Bushing, ignition coil cover | Bushing, ignition coil cover | 2 | — | Check availability | |
| 19 | 0025060356 HH collar screw M6x35 TX30 | HH collar screw M6x35 TX30 | 2 | — | Check availability | |
| 20 | 28511058050 Holder, starter relay | Holder, starter relay | 1 | — | Check availability | |
| 21 | 83008000012 special screw M6x12x3 | special screw M6x12x3 | 2 | — | Check availability | |
| 22 | 77307040041 Isolation pad | Isolation pad | 1 | — | Check availability | |
| 23 | 90111058000 STARTER RELAY | STARTER RELAY | 1 | — | Check availability | |
| 24 | 28511097000 earth wire 10mm | earth wire 10mm | 1 | — | Check availability | |
| 25 | 28511059000 Starter cable 10mm | Starter cable 10mm | 1 | — | Check availability | |
| 26 | 28511076000 harness rear | harness rear | 1 | — | Check availability | |
| 27 | 90111034000 VOLTAGE REGULATOR | VOLTAGE REGULATOR | 1 | — | Check availability | |
| 28 | 28511034010 Metamoll 70x25x3 self-adhesive | Metamoll 70x25x3 self-adhesive | 1 | — | Check availability | |
| 29 | 27011080000 Cable for flasher | Cable for flasher | 1 | — | Check availability | |
| 30 | 76511030000 FLASHER UNIT | FLASHER UNIT | 1 | — | Check availability | |
| 31 | 76511030010 Rubber strap, flasher unit | Rubber strap, flasher unit | 1 | — | Check availability |
