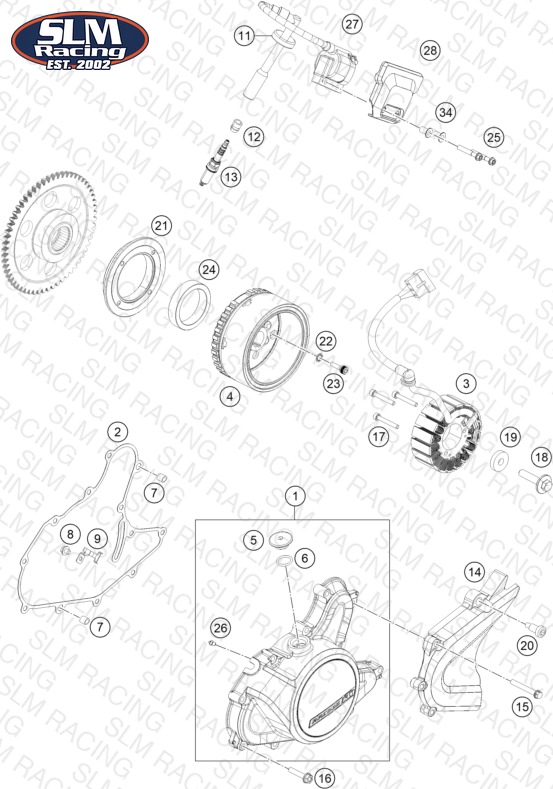

IGNITION SYSTEM
Parts (28)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 28230002233 COVER ASSEMBLY MAGNETO | COVER ASSEMBLY MAGNETO | 1 | — | Obsolete | View Details |
| 2 | 93530040100 Ignition cover gasket | Ignition cover gasket | 1 | $4.99 | Available | 1 |
| 3 | 93639004000 Stator lose | Stator lose | 1 | $137.67 | Available | 1 |
| 4 | 90539005000 ROTOR CPL. | ROTOR CPL. | 1 | $153.95 | Available | 1 |
| 5 | 93839010100 Screw plug, OT marking | Screw plug, OT marking | 1 | $1.99 | Available | 1 |
| 6 | J770015824 O-RING 15,8X2,4 | O-RING 15,8X2,4 | 1 | $1.99 | Available | 1 |
| 7 | 90130024000 PIN DOWEL 8X6,4X14MM | PIN DOWEL 8X6,4X14MM | 2 | $1.99 | Available | 2 |
| 8 | J025050081 Hex collar screw M5X8 | Hex collar screw M5X8 | 1 | $1.99 | Available | 1 |
| 9 | 90139004002 BRACKET F. STATORCABLE | BRACKET F. STATORCABLE | 1 | $1.99 | Available | 1 |
| 11 | 90139090001 GASKET SPARK PLUG CONNECT. | GASKET SPARK PLUG CONNECT. | 1 | $2.99 | Available | 1 |
| 12 | 93839091000 Sealing boot spark plug | Sealing boot spark plug | 1 | $1.99 | Available | 1 |
| 13 | 93839093000 Spark plug BOSCH VR6NEU M12X1. | Spark plug BOSCH VR6NEU M12X1. | 1 | $10.15 | Available | 1 |
| 14 | 90103096000 CHAIN SPROCKET GUARD | CHAIN SPROCKET GUARD | 1 | — | Obsolete | View Details |
| 15 | J025060451 HH COLLAR SCREW M6X45 | HH COLLAR SCREW M6X45 | 3 | $1.99 | Available | 3 |
| 16 | J025060301 HH COLLAR SCREW M6X30 | HH COLLAR SCREW M6X30 | 9 | $1.99 | Backorder — Restocking | 9 |
| 17 | 90530002010 SOCKET HEAD BOLT M5X0,8X40 | SOCKET HEAD BOLT M5X0,8X40 | 3 | $1.99 | Available | 3 |
| 18 | J025100509S FLANGED BOLT M10X1,25X55 | FLANGED BOLT M10X1,25X55 | 1 | $3.99 | Available | 1 |
| 20 | 90104060010 special screw M6x24 WS6 | special screw M6x24 WS6 | 1 | $1.99 | Available | 1 |
| 21 | 90130001000 SUPPORT FREEWHEEL CLUTCH | SUPPORT FREEWHEEL CLUTCH | 1 | $44.65 | Available | 1 |
| 22 | J797060003 TOOTHED WASHER M6 | TOOTHED WASHER M6 | 4 | $1.99 | Available | 4 |
| 23 | 90130001001 SOCKET HEAD SCREW M6X20 | SOCKET HEAD SCREW M6X20 | 4 | $0.99 | Available | 4 |
| 24 | 90140026000 FREEWHEEL CLUTCH | FREEWHEEL CLUTCH | 1 | $120.34 | Available | 1 |
| 25 | J912060353 Hexagon screw M6X35 | Hexagon screw M6X35 | 2 | $1.99 | Available | 2 |
| 26 | 90130164000 OIL NOZZLE | OIL NOZZLE | 1 | $32.44 | Available | 1 |
| 27 | 93039006033 Coil Assembly Ignition | Coil Assembly Ignition | 1 | — | Obsolete | View Details |
| 28 | 28139006050 Cover, ignition coil | Cover, ignition coil | 1 | $3.99 | Available | 1 |
| 34 | 28139006040 Bushing ignition coil cover | Bushing ignition coil cover | 2 | $2.99 | Available | 2 |
| 19 | J021100003 WASHER 10,3X29X3,2 | WASHER 10,3X29X3,2 | 1 | $2.99 | Available | 1 |
