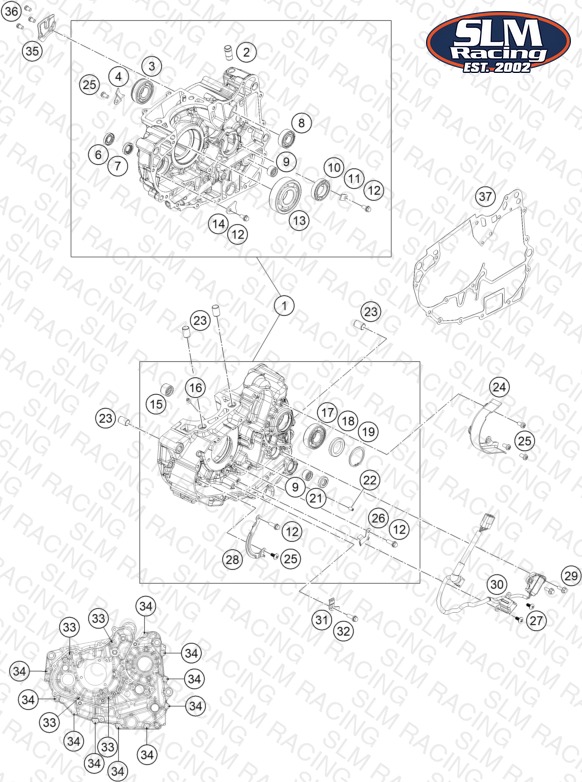

ENGINE CASE
Parts (35)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 93530000044C1 Kit Cr' Case HUSQ 200 MY20 | Kit Cr' Case HUSQ 200 MY20 | 1 | — | Obsolete | View Details |
| 2 | 90230022000 Pipe breather | Pipe breather | 1 | $3.99 | Available | 1 |
| 3 | J625062040 GROOVED BALL BEARING 6204 | GROOVED BALL BEARING 6204 | 1 | $12.42 | Available | 1 |
| 4 | 90130004002 LOCK WASHER F.BEARING DRIVE | LOCK WASHER F.BEARING DRIVE | 1 | $1.99 | Available | 1 |
| 6 | J760122455 SHAFT SEALING RING 12X24X5,5 | SHAFT SEALING RING 12X24X5,5 | 1 | $9.12 | Available | 1 |
| 7 | 0760122406 Shaft seal ring 12x24x6 | Shaft seal ring 12x24x6 | 1 | $6.92 | Available | 1 |
| 8 | 90130004003 BALL BEARING 15X35X11 | BALL BEARING 15X35X11 | 1 | $8.90 | Available | 1 |
| 9 | J618131912 NEEDLE ROLLER BEARING HK1312 | NEEDLE ROLLER BEARING HK1312 | 2 | $6.15 | Available | 2 |
| 10 | 90130004004 Bearing ball | Bearing ball | 1 | $18.01 | Available | 1 |
| 11 | 90130078000 LOCK WASHER | LOCK WASHER | 1 | $1.99 | Available | 1 |
| 12 | J01665060123S Hex collar screw, M6x12 | Hex collar screw, M6x12 | 4 | $13.74 | Available | 4 |
| 13 | 90130082000 BALL BEARING 63/2/8 HN3CNP | BALL BEARING 63/2/8 HN3CNP | 1 | $27.05 | Available | 1 |
| 14 | 90230079000 STOPPER BALANCER SHAFT BEARING | STOPPER BALANCER SHAFT BEARING | 1 | $1.99 | Available | 1 |
| 15 | J618152114 NEEDLE BEAR. HK1514RS 15X21X14 | NEEDLE BEAR. HK1514RS 15X21X14 | 1 | $7.14 | Available | 1 |
| 16 | 90130164000 OIL NOZZLE | OIL NOZZLE | 1 | $32.44 | Available | 1 |
| 17 | J625062041 BALL BEARING 6204-Z/HN3 | BALL BEARING 6204-Z/HN3 | 1 | $13.08 | Available | 1 |
| 18 | 90230077000 OIL SEAL OUTPUT SHAFT | OIL SEAL OUTPUT SHAFT | 1 | $4.99 | Available | 1 |
| 19 | J472037150 CIRCLIP 37X1,5 | CIRCLIP 37X1,5 | 1 | $1.99 | Available | 1 |
| 21 | 90130003004 Seal - oil | Seal - oil | 1 | $2.99 | Available | 1 |
| 22 | 90130058000 OILJET | OILJET | 1 | $2.99 | Available | 1 |
| 23 | 90130003007 DOWEL D14 | DOWEL D14 | 4 | $2.99 | Available | 4 |
| 24 | 90130047000 CHAIN GUARD | CHAIN GUARD | 1 | $6.15 | Available | 1 |
| 25 | J005060123S SCREW PAN CROSS M6X12 PH SS | SCREW PAN CROSS M6X12 PH SS | 5 | $1.99 | Available | 5 |
| 26 | 90130003005 CABLE SUPPORT BELOW | CABLE SUPPORT BELOW | 1 | $2.99 | Available | 1 |
| 27 | J011050133 HH COLLAR SCREW M5X13 SW8 | HH COLLAR SCREW M5X13 SW8 | 2 | $1.99 | Available | 2 |
| 28 | 90530003001 Bracket harness upper | Bracket harness upper | 1 | $1.99 | Available | 1 |
| 29 | J025050163S FLANGED BOLT M5X16 | FLANGED BOLT M5X16 | 2 | $1.99 | Available | 2 |
| 30 | 93311023000 gear sensor | gear sensor | 1 | $129.58 | Available | 1 |
| 31 | 90140020002 BRACKET F. FREE WHEEL GEAR | BRACKET F. FREE WHEEL GEAR | 1 | $1.99 | Available | 1 |
| 32 | 0028060164 bolt flanged-m6x1xl16xbrxpreco | bolt flanged-m6x1xl16xbrxpreco | 1 | — | Obsolete | View Details |
| 33 | 90130096000 Bolt flanged M6X60 | Bolt flanged M6X60 | 4 | $1.99 | Available | 4 |
| 34 | J025060401 HH COLLAR SCREW M6X40 | HH COLLAR SCREW M6X40 | 10 | $1.99 | Available | 10 |
| 35 | 90630042000 BREATHER PLATE | BREATHER PLATE | 1 | $1.99 | Available | 1 |
| 36 | 90130042010 Screw M5X10 | Screw M5X10 | 3 | $1.99 | Available | 3 |
| 37 | 90630039000 ENGINE CASE GASKET | ENGINE CASE GASKET | 1 | $23.53 | Available | 1 |
