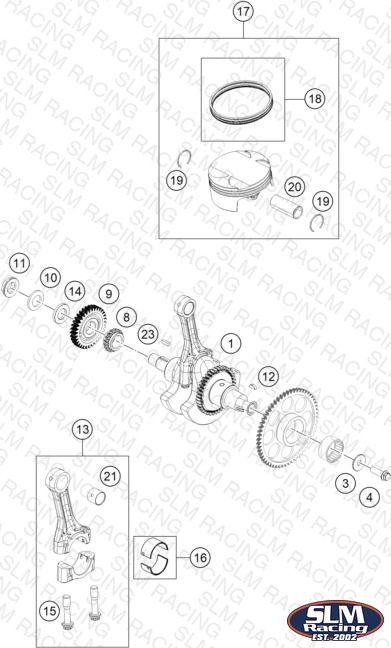

CRANKSHAFT, PISTON
Parts (20)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 96030018033 assembly crankshaft | assembly crankshaft | 1 | — | Obsolete | View Details |
| 3 | J690001260000 WASHER PLAIN-ID 12.3XOD 31XT 6 | WASHER PLAIN-ID 12.3XOD 31XT 6 | 1 | $2.99 | Available | 1 |
| 4 | J900001205000 BOLT ASSEMBLY | BOLT ASSEMBLY | 1 | $8.24 | Out of Stock | Notify Me |
| 8 | 96236014000 sprocket crankshaft | sprocket crankshaft | 1 | $9.45 | Out of Stock | Notify Me |
| 9 | 96232023030 gear primary drive | gear primary drive | 1 | — | Out of Stock | Notify Me |
| 10 | 90236015001 SPECIAL WASHER | SPECIAL WASHER | 1 | $1.99 | Available | 1 |
| 11 | 90230029000 NUT M16X1,5 | NUT M16X1,5 | 1 | $6.46 | Available | 1 |
| 12 | J950001300400 KEY WOODRUFF | KEY WOODRUFF | 1 | $0.99 | Available | 1 |
| 13 | 96030015033 conrod assembly | conrod assembly | 1 | — | Out of Stock | Notify Me |
| 14 | 90236015000 WASHER PLAIN | WASHER PLAIN | 1 | $2.99 | Available | 1 |
| 15 | 90630015001 CONROD BOLT | CONROD BOLT | 2 | $3.99 | Available | 2 |
| 16 | 90130015010 CON ROD BEARING SHELL | CON ROD BEARING SHELL | 1 | — | Obsolete | View Details |
| 16 | 90130015011 CON ROD BEARING SHELL GREEN | CON ROD BEARING SHELL GREEN | — | — | Obsolete | View Details |
| 16 | 90130015012 CON ROD BEARING SHELL BLUE | CON ROD BEARING SHELL BLUE | — | — | Obsolete | View Details |
| 17 | 96030007033 piston assembly | piston assembly | 1 | — | Out of Stock | Notify Me |
| 18 | 90130030010 PISTON RING CPL. | PISTON RING CPL. | 1 | — | Obsolete | View Details |
| 19 | 90130074000 CIRCLIP | CIRCLIP | 2 | — | Obsolete | View Details |
| 20 | 90130033000 PISTON BOLT | PISTON BOLT | 1 | — | Obsolete | View Details |
| 21 | 93730014000 Conrod bearing shell | Conrod bearing shell | 1 | $4.99 | Available | 1 |
| 23 | J888040150 Woodruff key 4X4X12 | Woodruff key 4X4X12 | 1 | $2.99 | Available | 1 |
