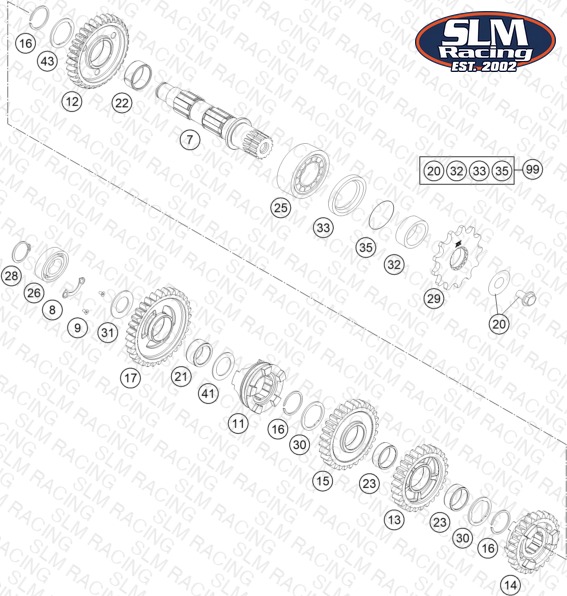

TRANSMISSION II - COUNTERSHAFT
Parts (27)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 8 | 78033132000 TAB WASHER BEARING COUNT.SHAFT | TAB WASHER BEARING COUNT.SHAFT | 1 | $6.15 | Available | 1 |
| 9 | 0019050106S hex lobe countersunc screw M5x | hex lobe countersunc screw M5x | 2 | $2.99 | Available | 2 |
| 11 | 77733316000 SHIFT COLLAR | SHIFT COLLAR | 1 | $169.17 | Available | 1 |
| 7 | 77733110000 COUNTERSHAFT | COUNTERSHAFT | 1 | $146.51 | Available | 1 |
| 12 | 77733012000 IDLER GEAR 2ND G. T=32 | IDLER GEAR 2ND G. T=32 | 1 | $111.97 | Available | 1 |
| 13 | 77733214000 IDLER GEAR 4.G. Z=26 | IDLER GEAR 4.G. Z=26 | 1 | $101.19 | Available | 1 |
| 14 | 77733215000 SLIDING GEAR 5.G.,Z=25 | SLIDING GEAR 5.G.,Z=25 | 1 | $139.58 | Available | 1 |
| 15 | 77733213000 IDLER GEAR 3.G. Z=28 | IDLER GEAR 3.G. Z=28 | 1 | $112.41 | Available | 1 |
| 16 | 0417024000 CIRCLIP WS24 | CIRCLIP WS24 | 3 | $2.99 | Available | 3 |
| 17 | 77733011000 IDLER GEAR 1ST G. T=32 | IDLER GEAR 1ST G. T=32 | 1 | $166.09 | Available | 1 |
| 20 | 59033034044 SCREW 10.9+SPRING WASHER | SCREW 10.9+SPRING WASHER | 1 | $9.23 | Available | 1 |
| 21 | 0405202612 NEEDLE BEARING K 20X26X12 | NEEDLE BEARING K 20X26X12 | 1 | $12.86 | Available | 1 |
| 22 | 0405242812 NEDDLE BEAR. K24X28X11,9 DIV. | NEDDLE BEAR. K24X28X11,9 DIV. | 1 | $8.57 | Available | 1 |
| 23 | 0405222611 NEEDLE BEAR.K 22X26X10 DIVIDED | NEEDLE BEAR.K 22X26X10 DIVIDED | 2 | $13.74 | Available | 2 |
| 25 | 49030023000 cylindrical roller bearing NJ2 | cylindrical roller bearing NJ2 | 1 | $87.55 | Backorder — Restocking | 1 |
| 26 | 0625062035 BALL BEARING 6203 JR2 C3 | BALL BEARING 6203 JR2 C3 | 1 | $17.04 | Available | 1 |
| 28 | 0471170015 CIRCLIP DIN 0471-17X1, 5 | CIRCLIP DIN 0471-17X1, 5 | 1 | $1.99 | Available | 1 |
| 29 | 50033029013 FRONT SPROCKET 13-T | FRONT SPROCKET 13-T | 1 | $36.40 | Available | 1 |
| 29 | 50033029014 FRONT SPROCKET 14-T | FRONT SPROCKET 14-T | — | $36.40 | Available | 1 |
| 30 | 77733043000 STOP DISC 23,4X31X1,5 | STOP DISC 23,4X31X1,5 | 2 | $3.99 | Available | 2 |
| 31 | 77233020000 STOP DISK 17,2X30X1,3 | STOP DISK 17,2X30X1,3 | 1 | $4.99 | Available | 1 |
| 32 | 54633014100 SPACER BUSHING 12MM | SPACER BUSHING 12MM | 1 | $24.63 | Available | 1 |
| 33 | 0760324571 SHAFT SEAL RING 32X45X7 BSLNBR | SHAFT SEAL RING 32X45X7 BSLNBR | 1 | $6.15 | Available | 1 |
| 35 | 0770020220 O-RING 25,12X1,78 NBR70 | O-RING 25,12X1,78 NBR70 | 1 | $3.99 | Available | 1 |
| 41 | 54833080000 STOP DISC 20,2X30X1 | STOP DISC 20,2X30X1 | 1 | $3.99 | Available | 1 |
| 43 | 77733044000 STOP DISC 24X32X1,5 | STOP DISC 24X32X1,5 | 1 | $4.99 | Available | 1 |
| 99 | 00050000941 COUNTER SHAFT REP.KIT 4 STROKE | COUNTER SHAFT REP.KIT 4 STROKE | — | $61.04 | Available | 1 |
