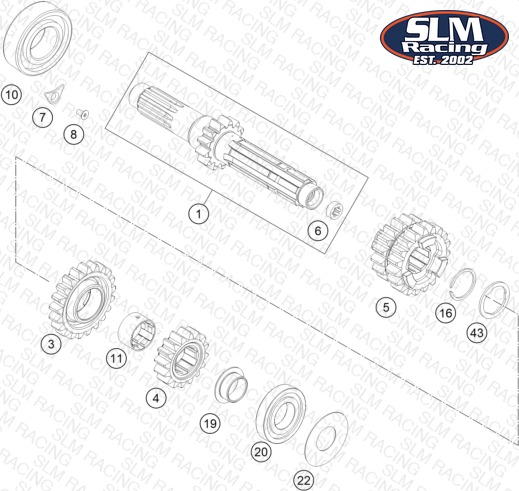

TRANSMISSION I - MAIN SHAFT
Parts (14)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 77733301000 MAIN SHAFT CPL. 13T. | MAIN SHAFT CPL. 13T. | 1 | $192.71 | Available | 1 |
| 3 | 77733005000 IDLER GEAR 5TH G. T=21 | IDLER GEAR 5TH G. T=21 | 1 | $117.69 | Available | 1 |
| 4 | 77733002000 SOLID GEAR 2ND G. T=16 | SOLID GEAR 2ND G. T=16 | 1 | $51.58 | Available | 1 |
| 5 | 77733303000 SLIDING GEAR 3./4.G Z=17/19 | SLIDING GEAR 3./4.G Z=17/19 | 1 | $194.69 | Available | 1 |
| 6 | 78033001110 BUSHING | BUSHING | 1 | $13.41 | Available | 1 |
| 7 | 75030085000 RETAINING PLATE F. CS BEARING | RETAINING PLATE F. CS BEARING | 1 | $1.99 | Available | 1 |
| 8 | 0019050106S hex lobe countersunc screw M5x | hex lobe countersunc screw M5x | 1 | $2.99 | Available | 1 |
| 10 | 0625062054 BALL BEARING 6205 C3 NTN | BALL BEARING 6205 C3 NTN | 1 | $24.30 | Available | 1 |
| 11 | 77733024000 IDLER GEAR BUSHING | IDLER GEAR BUSHING | 1 | $30.57 | Available | 1 |
| 16 | 50133090000 LOCK RING 22X1,2 | LOCK RING 22X1,2 | 1 | $2.99 | Available | 1 |
| 19 | 77733027000 BUSHING | BUSHING | 1 | $29.25 | Available | 1 |
| 20 | 0625160040 GROOVED BALL BEAR. TM 16004 C3 | GROOVED BALL BEAR. TM 16004 C3 | 1 | $27.49 | Available | 1 |
| 22 | 77233088000 SPACER SHIM 21X42X0.2 | SPACER SHIM 21X42X0.2 | 1 | $6.81 | Available | 1 |
| 43 | 77733021000 STOP DISC | STOP DISC | 1 | $4.99 | Available | 1 |
