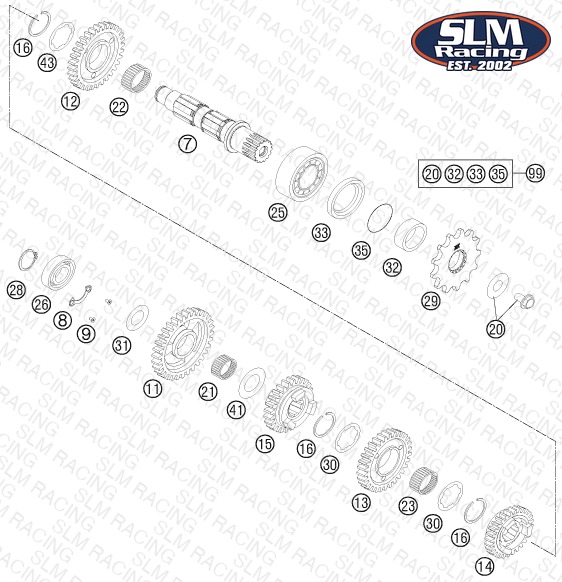

TRANSMISSION II - COUNTERSHAFT
Parts (26)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 7 | 77233010000 COUNTERSHAFT | COUNTERSHAFT | 1 | $240.56 | Available | 1 |
| 8 | 78033132000 TAB WASHER BEARING COUNT.SHAFT | TAB WASHER BEARING COUNT.SHAFT | 1 | $6.15 | Available | 1 |
| 9 | 0019050106S hex lobe countersunc screw M5x | hex lobe countersunc screw M5x | 2 | $2.99 | Available | 2 |
| 11 | 54833011000 IDLER GEAR 1ST G. 28-T''1S28'' | IDLER GEAR 1ST G. 28-T''1S28'' | 1 | $187.32 | Available | 1 |
| 12 | 54833012100 IDLER GEAR 2ND G. 26-T ''2S26' | IDLER GEAR 2ND G. 26-T ''2S26' | 1 | $182.15 | Available | 1 |
| 13 | 54833013000 IDLER GEAR 3RD G. 24-T ''3S24' | IDLER GEAR 3RD G. 24-T ''3S24' | 1 | $157.07 | Available | 1 |
| 14 | 54833014000 SLIDING GEAR 4TH G.24-T ''4S24 | SLIDING GEAR 4TH G.24-T ''4S24 | 1 | $216.14 | Available | 1 |
| 15 | 54833015000 SLIDING GEAR 5TH G.21-T ''5S21 | SLIDING GEAR 5TH G.21-T ''5S21 | 1 | $179.51 | Out of Stock | Notify Me |
| 16 | 77033022000 AXIAL-CIRCLIP 25X1,65 | AXIAL-CIRCLIP 25X1,65 | 3 | $2.99 | Available | 3 |
| 20 | 59033034044 SCREW 10.9+SPRING WASHER | SCREW 10.9+SPRING WASHER | 1 | $9.23 | Available | 1 |
| 21 | 0405202413 NEEDLE BEAR. K20X24X13 | NEEDLE BEAR. K20X24X13 | 1 | $12.75 | Available | 1 |
| 22 | 0405242812 NEDDLE BEAR. K24X28X11,9 DIV. | NEDDLE BEAR. K24X28X11,9 DIV. | 1 | $8.57 | Available | 1 |
| 23 | 0405222613 NEEDLE BEAR. K 22X26X13 TN | NEEDLE BEAR. K 22X26X13 TN | 1 | $10.77 | Available | 1 |
| 25 | 49030023000 cylindrical roller bearing NJ2 | cylindrical roller bearing NJ2 | 1 | $87.55 | Backorder — Restocking | 1 |
| 26 | 0625062035 BALL BEARING 6203 JR2 C3 | BALL BEARING 6203 JR2 C3 | 1 | $17.04 | Available | 1 |
| 28 | 0471170015 CIRCLIP DIN 0471-17X1, 5 | CIRCLIP DIN 0471-17X1, 5 | 1 | $1.99 | Available | 1 |
| 29 | 50033029013 FRONT SPROCKET 13-T | FRONT SPROCKET 13-T | — | $36.40 | Available | 1 |
| 29 | 50033029014 FRONT SPROCKET 14-T | FRONT SPROCKET 14-T | 1 | $36.40 | Available | 1 |
| 30 | 59033030000 STOP DISC 25,2X32X1,5 | STOP DISC 25,2X32X1,5 | 2 | $3.99 | Available | 2 |
| 31 | 56033030000 STOP DISC 17,2X30X1 | STOP DISC 17,2X30X1 | 1 | $4.99 | Available | 1 |
| 32 | 54633014100 SPACER BUSHING 12MM | SPACER BUSHING 12MM | 1 | $24.63 | Available | 1 |
| 33 | 0760324571 SHAFT SEAL RING 32X45X7 BSLNBR | SHAFT SEAL RING 32X45X7 BSLNBR | 1 | $6.15 | Available | 1 |
| 35 | 0770020220 O-RING 25,12X1,78 NBR70 | O-RING 25,12X1,78 NBR70 | 1 | $3.99 | Available | 1 |
| 41 | 59033080000 Shim 20x31.9x1 | Shim 20x31.9x1 | 1 | $2.41 | Available | 1 |
| 43 | 50333043000 STOP DISC 25,2X32X1 | STOP DISC 25,2X32X1 | 1 | $3.99 | Available | 1 |
| 99 | 00050000941 COUNTER SHAFT REP.KIT 4 STROKE | COUNTER SHAFT REP.KIT 4 STROKE | — | $61.04 | Available | 1 |
