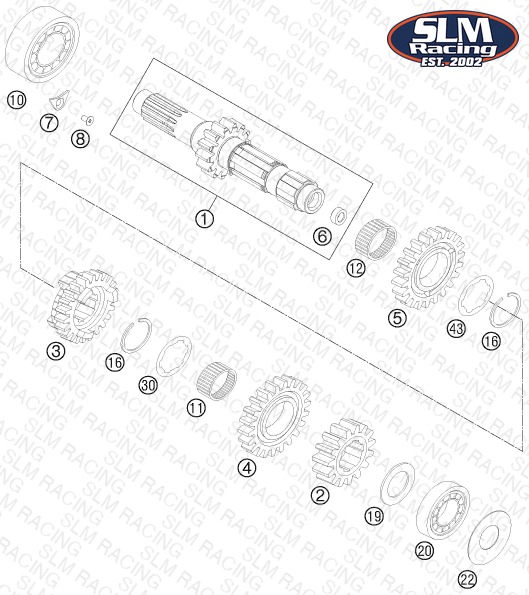

TRANSMISSION I - MAIN SHAFT
Parts (17)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 77233001100 MAIN SHAFT CPL. | MAIN SHAFT CPL. | 1 | $256.40 | Available | 1 |
| 2 | 54833002100 SOLID GEAR 2ND G. 16-T ''2S16' | SOLID GEAR 2ND G. 16-T ''2S16' | 1 | $32.33 | Out of Stock | Notify Me |
| 3 | 54833003000 SLIDING GEAR 3RD G.18-T ''3S18 | SLIDING GEAR 3RD G.18-T ''3S18 | 1 | $117.25 | Available | 1 |
| 4 | 54833004000 IDLER GEAR 4TH G. 21-T ''4S21' | IDLER GEAR 4TH G. 21-T ''4S21' | 1 | $147.50 | Available | 1 |
| 5 | 54833005000 IDLER GEAR 5TH G. 22-T ''5S22' | IDLER GEAR 5TH G. 22-T ''5S22' | 1 | $147.50 | Available | 1 |
| 6 | 78033001110 BUSHING | BUSHING | 1 | $13.41 | Available | 1 |
| 7 | 75030085000 RETAINING PLATE F. CS BEARING | RETAINING PLATE F. CS BEARING | 1 | $1.99 | Available | 1 |
| 8 | 0019050106S hex lobe countersunc screw M5x | hex lobe countersunc screw M5x | 1 | $2.99 | Available | 1 |
| 10 | 0625062054 BALL BEARING 6205 C3 NTN | BALL BEARING 6205 C3 NTN | 1 | $24.30 | Available | 1 |
| 11 | 0405222613 NEEDLE BEAR. K 22X26X13 TN | NEEDLE BEAR. K 22X26X13 TN | 1 | $10.77 | Available | 1 |
| 12 | 0405242812 NEDDLE BEAR. K24X28X11,9 DIV. | NEDDLE BEAR. K24X28X11,9 DIV. | 1 | $8.57 | Available | 1 |
| 16 | 77033022000 AXIAL-CIRCLIP 25X1,65 | AXIAL-CIRCLIP 25X1,65 | 2 | $2.99 | Available | 2 |
| 19 | 77233015000 DISK 20,2X32X1,3 | DISK 20,2X32X1,3 | 1 | $6.15 | Available | 1 |
| 20 | 0625160040 GROOVED BALL BEAR. TM 16004 C3 | GROOVED BALL BEAR. TM 16004 C3 | 1 | $27.49 | Available | 1 |
| 22 | 77233088000 SPACER SHIM 21X42X0.2 | SPACER SHIM 21X42X0.2 | 1 | $6.81 | Available | 1 |
| 30 | 59033030000 STOP DISC 25,2X32X1,5 | STOP DISC 25,2X32X1,5 | 1 | $3.99 | Available | 1 |
| 43 | 50333043000 STOP DISC 25,2X32X1 | STOP DISC 25,2X32X1 | 1 | $3.99 | Available | 1 |
