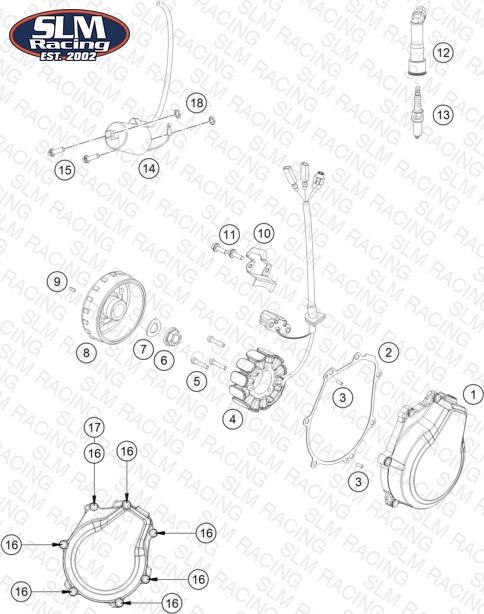

IGNITION SYSTEM
Parts (18)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 7943070200015 Ignition cover | Ignition cover | 1 | — | Obsolete | View Details |
| 2 | 79430040000 IGNITION COVER GASKET | IGNITION COVER GASKET | 1 | $16.27 | Available | 1 |
| 3 | 0402040980 Needle roll.DIN5402 NRB 4X9.8 | Needle roll.DIN5402 NRB 4X9.8 | 2 | $3.99 | Available | 2 |
| 4 | 79239104000 STATOR | STATOR | 1 | $266.74 | Backorder — Restocking | 1 |
| 5 | 0012050303S Cap head screw DIN 6912 - M5x3 | Cap head screw DIN 6912 - M5x3 | 3 | $1.99 | Available | 3 |
| 6 | 49030021000 COLLAR NUT M12X1 R/S | COLLAR NUT M12X1 R/S | 1 | $2.99 | Available | 1 |
| 7 | 0137120000 SPRING WASHER DIN0137-B12 | SPRING WASHER DIN0137-B12 | 1 | $1.99 | Backorder — Restocking | 1 |
| 8 | 78039205000 ROTOR EXC 08 | ROTOR EXC 08 | 1 | $342.53 | Available | 1 |
| 9 | 0888030050 WOODRUFF KEY DIN6888-3X5X13 | WOODRUFF KEY DIN6888-3X5X13 | 1 | $2.99 | Available | 1 |
| 10 | 79430502050 CABLE BRACKET | CABLE BRACKET | 1 | $35.96 | Available | 1 |
| 11 | 0025050166 HH collar screw M5x16 TX30 | HH collar screw M5x16 TX30 | 2 | $2.99 | Available | 2 |
| 12 | 79539190000 Spark plug connector | Spark plug connector | 1 | $60.27 | Backorder — Restocking | 1 |
| 13 | 77239093000 PLUG NGK LMAR9AI - 8 | PLUG NGK LMAR9AI - 8 | 1 | $26.72 | Backorder — Restocking | 1 |
| 14 | 58439006000 Ignition coil | Ignition coil | 1 | $88.76 | Backorder — Restocking | 1 |
| 15 | 0025060206 HH collar screw M6x20 TX30 | HH collar screw M6x20 TX30 | 2 | $3.99 | Available | 2 |
| 16 | 0025060256 HH collar screw M6x25 TX30 | HH collar screw M6x25 TX30 | 7 | $3.99 | Available | 7 |
| 17 | 0603061001 CU-SEAL RING DIN7603-6X10X1 | CU-SEAL RING DIN7603-6X10X1 | 1 | $2.99 | Available | 1 |
| 18 | 58411098100 CONTACT WASHER M6 VSV-K6 | CONTACT WASHER M6 VSV-K6 | 2 | $2.99 | Available | 2 |
