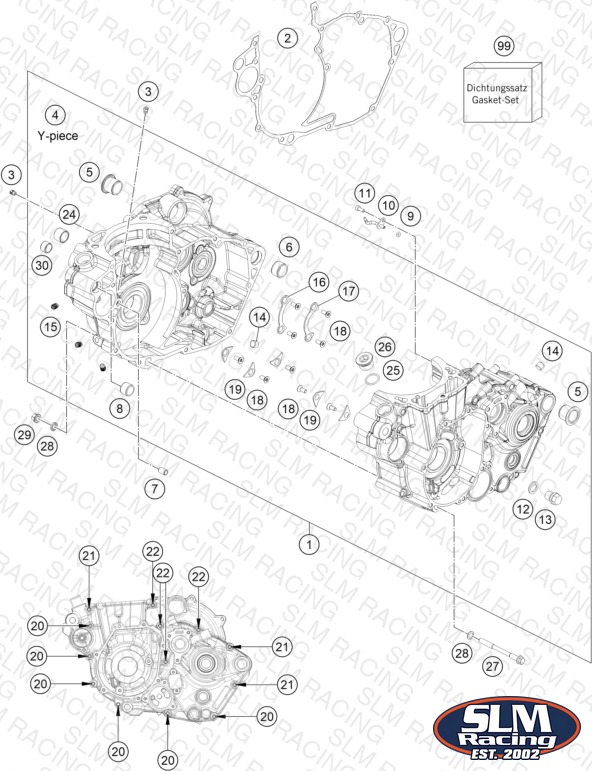

ENGINE CASE
Parts (30)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 76730000233 Engine case cmpl. | Engine case cmpl. | 1 | $1198.79 | Available | 1 |
| 2 | 79430039000M02 Gasket | Gasket | 1 | — | Obsolete | View Details |
| 3 | 60030063070 oil jet 70 M5 | oil jet 70 M5 | 2 | $10.11 | Available | 2 |
| 4 | 0610002001600M1 Y-connector | Y-connector | 1 | — | Out of Stock | Notify Me |
| 5 | 75030010100M01 Bushing | Bushing | 2 | — | Obsolete | View Details |
| 6 | 54830027100 Dowel, 21x12 | Dowel, 21x12 | 1 | $6.15 | Available | 1 |
| 7 | 59030023100 Dowel, 6x8x11.5 | Dowel, 6x8x11.5 | 1 | $1.99 | Available | 1 |
| 8 | 51030026100 DOWEL 17 X 13 X 12 | DOWEL 17 X 13 X 12 | 1 | $7.58 | Available | 1 |
| 9 | 0770035020 O-RING 3,5X2,00 NBR | O-RING 3,5X2,00 NBR | 1 | $1.99 | Available | 1 |
| 10 | 81230064000 OIL JET ANGLED 70 | OIL JET ANGLED 70 | 1 | $14.29 | Available | 1 |
| 11 | 0912040103 AH.SCREW DIN0912-M 4X10 | AH.SCREW DIN0912-M 4X10 | 1 | $2.99 | Available | 1 |
| 12 | 58038022000 CU-seal ring DIN7603-12X18X1.5 | CU-seal ring DIN7603-12X18X1.5 | 1 | $2.99 | Available | 1 |
| 13 | 58030021100 oildrain plug with magnet | oildrain plug with magnet | 1 | $13.30 | Available | 1 |
| 14 | 0906100100 pipe plug DIN 906 M10x1 | pipe plug DIN 906 M10x1 | 2 | $4.99 | Available | 2 |
| 15 | 59030296000 SCREW PLUG | SCREW PLUG | 3 | $7.36 | Available | 3 |
| 16 | 78033032000 TAB WASHER BEARING MAIN SHAFT | TAB WASHER BEARING MAIN SHAFT | 1 | $6.48 | Available | 1 |
| 17 | 78033132000 TAB WASHER BEARING COUNT.SHAFT | TAB WASHER BEARING COUNT.SHAFT | 1 | $6.15 | Available | 1 |
| 18 | 0019050121S INT. TORX FLAT HEAD M5X12 T25 | INT. TORX FLAT HEAD M5X12 T25 | 9 | $2.99 | Available | 9 |
| 20 | 0025060606 HH collar screw M6x60 TX30 | HH collar screw M6x60 TX30 | 6 | $3.99 | Available | 6 |
| 21 | 0025060706 HH COLLAR SCREW M6X70 TX30 | HH COLLAR SCREW M6X70 TX30 | 3 | $3.99 | Available | 3 |
| 22 | 0025060806 HH COLLAR SCREW M6X80 TX30 | HH COLLAR SCREW M6X80 TX30 | 4 | $2.99 | Available | 4 |
| 24 | 79438001010 NEEDLE BEARING INNER RING | NEEDLE BEARING INNER RING | 1 | $10.33 | Available | 1 |
| 25 | 0770020170 O-RING 17,17X1,78 GLO | O-RING 17,17X1,78 GLO | 1 | $2.99 | Available | 1 |
| 26 | 76738017000 Screw plug | Screw plug | 1 | — | Out of Stock | Notify Me |
| 27 | 59003013000 Enginebrac. screw M10X123 WS=1 | Enginebrac. screw M10X123 WS=1 | 1 | $11.10 | Available | 1 |
| 28 | 50233041100 PAIR OF WASHERS M10 NORDLOCK | PAIR OF WASHERS M10 NORDLOCK | 1 | $4.99 | Available | 1 |
| 29 | 54630044000 COLLAR NUT M10 WS=13 | COLLAR NUT M10 WS=13 | 1 | $1.99 | Available | 1 |
| 99 | 79430099000 GASKET SET 450 SX-F | GASKET SET 450 SX-F | — | $300.95 | Backorder — Restocking | 1 |
| 19 | 75030085000 RETAINING PLATE F. CS BEARING | RETAINING PLATE F. CS BEARING | 5 | $1.99 | Available | 5 |
| 30 | 79430057010 FRICTION BEAR. BUSH BALANC.SH. | FRICTION BEAR. BUSH BALANC.SH. | 1 | $33.87 | Available | 1 |
