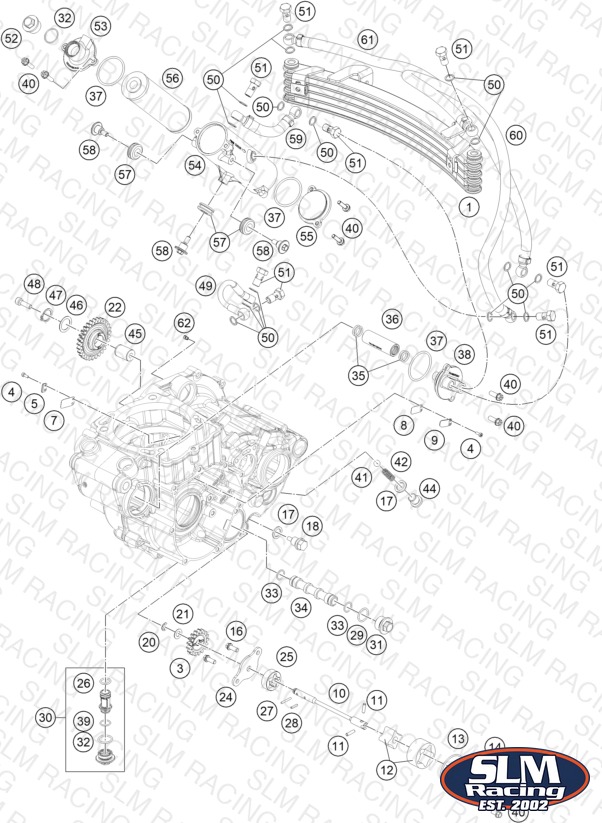

LUBRICATING SYSTEM
Parts (54)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 9 | 81205027004 TAB WASHER MEMBRAN CSC | TAB WASHER MEMBRAN CSC | 1 | — | Check availability | |
| 3 | 78038001017 OIL PUMP GEAR 17 T | OIL PUMP GEAR 17 T | 1 | — | Check availability | |
| 8 | 81205027003 MEMBRAN CRANKCASE | MEMBRAN CRANKCASE | 1 | — | Check availability | |
| 10 | 78138102000 OIL PUMP SHAFT SP-DP | OIL PUMP SHAFT SP-DP | 1 | — | Check availability | |
| 11 | 0402041580 needle roller NRB 4x15.8 G2 | needle roller NRB 4x15.8 G2 | 2 | — | Check availability | |
| 12 | 61238111000 ROTOR-SET CPL. 22MM | ROTOR-SET CPL. 22MM | 1 | — | Check availability | View Details |
| 13 | 0770440020 O-RING 44,00X2,00 VITON | O-RING 44,00X2,00 VITON | 1 | — | Check availability | |
| 14 | 78038004000 OIL PUMP COVER SUCTION PUMP | OIL PUMP COVER SUCTION PUMP | 1 | — | Check availability | |
| 16 | 0025060166S HH collar screw M6x16 TX30 SL | HH collar screw M6x16 TX30 SL | 2 | — | Check availability | |
| 17 | 58038022000 CU-seal ring DIN7603-12X18X1.5 | CU-seal ring DIN7603-12X18X1.5 | 2 | — | Check availability | |
| 18 | 58030021000 OILDRAIN PLUG W.MAG. M 12X1,5 | OILDRAIN PLUG W.MAG. M 12X1,5 | 1 | — | Check availability | View Details |
| 20 | 0799060000 TAB WASHER DIN6799-RS 6,0 | TAB WASHER DIN6799-RS 6,0 | 1 | — | Check availability | |
| 21 | 58038007755 STOP DISK 8,1 X 15 X 0,5 | STOP DISK 8,1 X 15 X 0,5 | 1 | — | Check availability | |
| 22 | 78138001029 IDLER GEAR 1 29Z | IDLER GEAR 1 29Z | 1 | — | Check availability | |
| 24 | 78138003000 OIL PUMP COVER | OIL PUMP COVER | 1 | — | Check availability | |
| 25 | 77038011000 OILPUMP ROTOR 15MM G-164 | OILPUMP ROTOR 15MM G-164 | 1 | — | Check availability | |
| 26 | 0770012021 O-RING 12X2 VITON GREEN | O-RING 12X2 VITON GREEN | 1 | — | Check availability | |
| 27 | 0402251980 NEEDLEROL.DIN5402 NRA 2,5X19,8 | NEEDLEROL.DIN5402 NRA 2,5X19,8 | 1 | — | Check availability | |
| 28 | 0402251180 NEEDLE ROLLER DIN5402 2,5X11,8 | NEEDLE ROLLER DIN5402 2,5X11,8 | 1 | — | Check availability | |
| 29 | 0770020170 O-RING 17,17X1,78 GLO | O-RING 17,17X1,78 GLO | 1 | — | Check availability | |
| 30 | 78138015001 OIL SCREEN CPL. | OIL SCREEN CPL. | 1 | — | Check availability | |
| 4 | 0458030080 CYLIND.SCREW M3X8 ISO 14580 SS | CYLIND.SCREW M3X8 ISO 14580 SS | 2 | — | Check availability | |
| 5 | 75030003050 STOP SHEET MEMBRANE 07 | STOP SHEET MEMBRANE 07 | 1 | — | Check availability | |
| 7 | 75030003051 MEMBRANE 07 | MEMBRANE 07 | 1 | — | Check availability | |
| 31 | 59038017100 PLUG M20X1,5 WS=13 | PLUG M20X1,5 WS=13 | 1 | — | Check availability | |
| 32 | 0770017025 O-RING 17X2,5 | O-RING 17X2,5 | 1 | — | Check availability | |
| 33 | 07701250151 O-RING 12,5X1,5 VITON V75 | O-RING 12,5X1,5 VITON V75 | 2 | — | Check availability | |
| 34 | 59038016100 OIL SCREEN | OIL SCREEN | 1 | — | Check availability | View Details |
| 36 | 76438035000 PIPE OIL LINE CONNECTOR | PIPE OIL LINE CONNECTOR | 1 | — | Check availability | |
| 37 | 07700390261 O-RING 39,34X2,62 | O-RING 39,34X2,62 | 3 | — | Check availability | |
| 38 | 76438050000 OIL LINE CONNECTOR | OIL LINE CONNECTOR | 1 | — | Check availability | |
| 39 | 0770125015 O-RING 12,5X1,5 NBR | O-RING 12,5X1,5 NBR | 1 | — | Check availability | |
| 40 | 0025050166 HH collar screw M5x16 TX30 | HH collar screw M5x16 TX30 | 9 | — | Check availability | |
| 41 | 0401090003 BALL DIN5401-9 | BALL DIN5401-9 | 1 | — | Check availability | |
| 42 | 58038023300 PRESSURE SPRING L=25MM D=1MM | PRESSURE SPRING L=25MM D=1MM | 1 | — | Check availability | |
| 44 | 0908120153 threaded plug DIN 908 M12x1.5 | threaded plug DIN 908 M12x1.5 | 1 | — | Check availability | |
| 45 | 78040028000 BUSHING PIN | BUSHING PIN | 1 | — | Check availability | |
| 46 | 0988172405 SHIM WASHER DIN0988-17X24X0,5 | SHIM WASHER DIN0988-17X24X0,5 | 1 | — | Check availability | |
| 47 | 0471170010 CIRCLIP DIN0471-17X1 | CIRCLIP DIN0471-17X1 | 1 | — | Check availability | |
| 48 | 0912060208 AH SCREW DIN0912-M 6X20 SS | AH SCREW DIN0912-M 6X20 SS | 1 | — | Check availability | |
| 49 | 76438034000 OIL JET | OIL JET | 1 | — | Check availability | |
| 50 | 0603100141 sealing ring DIN 7603 10x14x1 | sealing ring DIN 7603 10x14x1 | 16 | — | Check availability | |
| 51 | 54313025000 HOLLOW SCREW M10 X 1 | HOLLOW SCREW M10 X 1 | 8 | — | Check availability | |
| 53 | 76438041000 COVER OIL FILTER 1 | COVER OIL FILTER 1 | 1 | — | Check availability | |
| 54 | 76438043000 HOUSING OI FILTER | HOUSING OI FILTER | 1 | — | Check availability | |
| 55 | 76438042000 COVER OIL FILTER 2 | COVER OIL FILTER 2 | 1 | — | Check availability | |
| 56 | 83538005000 OIL FILTER | OIL FILTER | 1 | — | Check availability | |
| 57 | 41001052000 RUBBER SLEEVE D=12MM | RUBBER SLEEVE D=12MM | 3 | — | Check availability | |
| 58 | 60035001000 SPECIAL SCREW M6X21 WS=8 | SPECIAL SCREW M6X21 WS=8 | 3 | — | Check availability | |
| 59 | 76438053000 OIL PIPE L=105MM | OIL PIPE L=105MM | 1 | — | Check availability | |
| 60 | 76438054000 OIL PIPE L=615MM | OIL PIPE L=615MM | 1 | — | Check availability | |
| 61 | 76438055000 OIL PIPE L=696MM | OIL PIPE L=696MM | 1 | — | Check availability | |
| 62 | 80030058060 OIL JET ''60'' M4 | OIL JET ''60'' M4 | 1 | — | Check availability | |
| 1 | 76438051000 OIL RADIATOR | OIL RADIATOR | 1 | — | Check availability |
