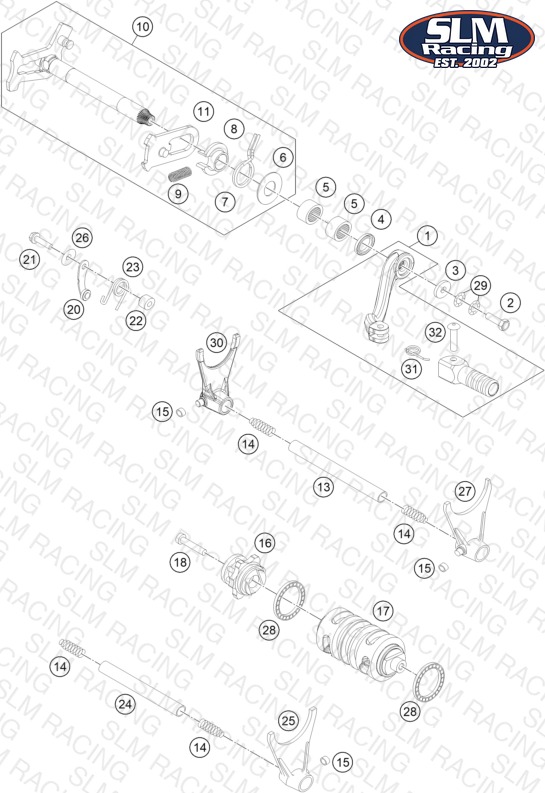

SHIFTING MECHANISM
Parts (30)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 31 | 54634032100 SHIFTING LEVER SPRING 250 | SHIFTING LEVER SPRING 250 | 1 | — | Check availability | |
| 32 | 54634031050 BOLT 6X25 FOR SHIFT LEVER | BOLT 6X25 FOR SHIFT LEVER | 1 | — | Check availability | |
| 1 | 76334031000 SHIFT LEVER CPL. RALLY 11 | SHIFT LEVER CPL. RALLY 11 | 1 | — | Check availability | |
| 2 | 0025060166S HH collar screw M6x16 TX30 SL | HH collar screw M6x16 TX30 SL | 1 | — | Check availability | |
| 3 | 50232050001 STEEL WASHER 6,4X17X3 | STEEL WASHER 6,4X17X3 | 1 | — | Check availability | |
| 4 | 0760142460 radial shaft seal 14x24x6 B | radial shaft seal 14x24x6 B | 1 | — | Check availability | |
| 5 | 54632095000 needle sleeve HK 1412 14x20x12 | needle sleeve HK 1412 14x20x12 | 2 | — | Check availability | |
| 6 | 54634050000 STOP DISK 14X30X1 | STOP DISK 14X30X1 | 1 | — | Check availability | |
| 7 | 54634014100 RETURN SPRING 2,2MM '95 | RETURN SPRING 2,2MM '95 | 1 | — | Check availability | |
| 8 | 54634020000 SPRING GUIDE | SPRING GUIDE | 1 | — | Check availability | |
| 9 | 56534013100 TENSIONING SPRING 0,8MM | TENSIONING SPRING 0,8MM | 1 | — | Check availability | |
| 10 | 76434005033 SHIFT SHAFT CPL. | SHIFT SHAFT CPL. | 1 | — | Check availability | |
| 11 | 61234008044 SLIDING PLATE | SLIDING PLATE | 1 | — | Check availability | |
| 13 | 78034020000 SHIFT RAIL 11,8X101,5 | SHIFT RAIL 11,8X101,5 | 1 | — | Check availability | |
| 14 | 58038023200 PRESSURE SPRING 0,9MM | PRESSURE SPRING 0,9MM | 4 | — | Check availability | |
| 15 | 50334018100 SHIFTING ROLLER 6X8X5,2 | SHIFTING ROLLER 6X8X5,2 | 3 | — | Check availability | |
| 16 | 78134015044 SHIFT DRUM LOCATING ALU CPL. | SHIFT DRUM LOCATING ALU CPL. | 1 | — | Check availability | |
| 17 | 78034012000 SHIFT ROLLER | SHIFT ROLLER | 1 | — | Check availability | |
| 18 | 0012060303 AH SCREW DIN6912 M6X30 8.8 | AH SCREW DIN6912 M6X30 8.8 | 1 | — | Check availability | |
| 20 | 78134024044 LOCKING LEVER CPL. | LOCKING LEVER CPL. | 1 | — | Check availability | |
| 21 | 0025050206 HH collar screw M5x20 TX30 | HH collar screw M5x20 TX30 | 1 | — | Check availability | |
| 22 | 54634052300 SLEEVE FOR LOCKING LEVER | SLEEVE FOR LOCKING LEVER | 1 | — | Check availability | |
| 23 | 60034023200 ARRESTING LEVER SPRING | ARRESTING LEVER SPRING | 1 | — | Check availability | |
| 24 | 78034019000 SHIFT RAIL 11,8X85 | SHIFT RAIL 11,8X85 | 1 | — | Check availability | |
| 25 | 76434001000 SHIFTING FORK 5./6. GEAR | SHIFTING FORK 5./6. GEAR | 1 | — | Check availability | |
| 26 | 0021050003 washer DIN 9021 A - 5.3 | washer DIN 9021 A - 5.3 | 1 | — | Check availability | |
| 27 | 76434002000 SHIFTING FORK 2./4. GEAR | SHIFTING FORK 2./4. GEAR | 1 | — | Check availability | |
| 28 | 0625618050 BALL BEARING 61805 C3 | BALL BEARING 61805 C3 | 2 | — | Check availability | |
| 29 | 50233041000 Pair of washers M6 NORDLOCK | Pair of washers M6 NORDLOCK | 1 | — | Check availability | |
| 30 | 76434003000 SHIFTING FORK 1./3. GEAR | SHIFTING FORK 1./3. GEAR | 1 | — | Check availability |
