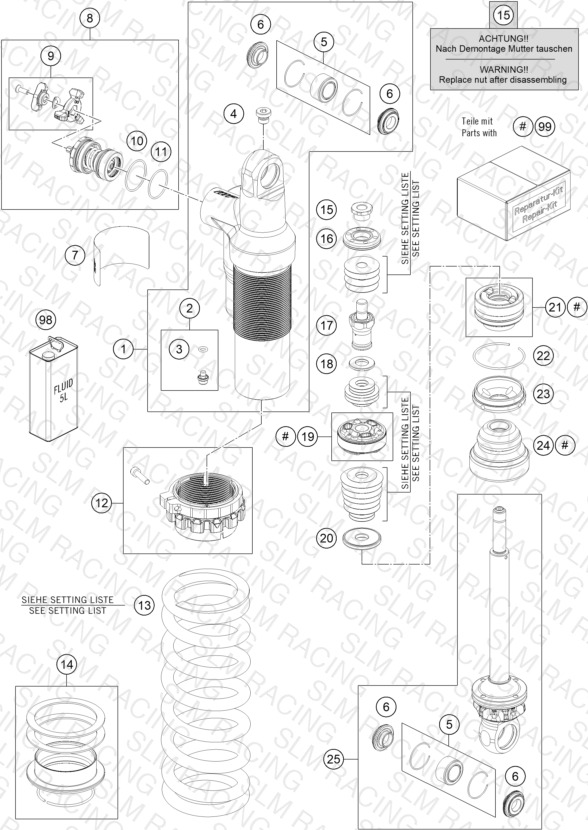

SHOCK ABSORBER DISASSEMBLED
Parts (32)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | S454600000S0000 Shock absorber case cmpl. | Shock absorber case cmpl. | 1 | $345.39 | Out of Stock | Notify Me |
| 2 | 36120151ST PLUG SCREW M5X6 CPL. | PLUG SCREW M5X6 CPL. | 1 | $4.83 | Available | 1 |
| 3 | S208600003000FB O-ring 5,28x1,78 HNBR70 red | O-ring 5,28x1,78 HNBR70 red | 1 | $0.76 | Available | 1 |
| 4 | 50180095 HS cylinder-head screw R1/8 l8 | HS cylinder-head screw R1/8 l8 | 1 | $2.85 | Available | 1 |
| 5 | RP10051T Ball bearing kit | Ball bearing kit | — | $23.97 | Available | 1 |
| 6 | 46181193 Pivotseal d.12X25,1 PDS | Pivotseal d.12X25,1 PDS | 4 | $5.79 | Available | 4 |
| 7 | 52000233 Sticker XPLOR PDS 90x40 | Sticker XPLOR PDS 90x40 | 1 | $37.94 | Available | 1 |
| 8 | S012900007S0600 Compression cpl | Compression cpl | 1 | $176.32 | Available | 1 |
| 9 | RP10044T Repair kit adjuster DCC 2023 | Repair kit adjuster DCC 2023 | — | $9.01 | Available | 1 |
| 10 | 50180217 O-ring 27x1,5 Viton70 green IS | O-ring 27x1,5 Viton70 green IS | 1 | $2.41 | Available | 1 |
| 11 | 50180218 O-ring 25x1,5 Viton70 | O-ring 25x1,5 Viton70 | 1 | $2.41 | Available | 1 |
| 12 | S938100027S0000 Adjustment nut pds-shock plast | Adjustment nut pds-shock plast | 1 | — | Available | |
| 13 | 91010336 SHOCK SPRING L= 225 63 N/MM WH | SHOCK SPRING L= 225 63 N/MM WH | — | $164.99 | Available | 1 |
| 13 | 91010337 Mainspring (59/61) 66-225 damp | Mainspring (59/61) 66-225 damp | — | $164.99 | Available | 1 |
| 13 | 91010338S SPRING 225MM 69 N/MM | SPRING 225MM 69 N/MM | — | $164.99 | Available | 1 |
| 13 | 91010339 Mainspring (59/61) 72-225 damp | Mainspring (59/61) 72-225 damp | — | $164.99 | Available | 1 |
| 13 | 91010363 Mainspring (59/61) 75-225 damp | Mainspring (59/61) 75-225 damp | — | $164.99 | Available | 1 |
| 13 | 91010364 Mainspring (59/61) 78-225 damp | Mainspring (59/61) 78-225 damp | — | $164.99 | Backorder — Restocking | 1 |
| 14 | RP10052T Spring plate repair kit | Spring plate repair kit | — | $51.58 | Out of Stock | Notify Me |
| 15 | 46181656 nut M10x1 h10,5 SW19 | nut M10x1 h10,5 SW19 | 1 | $26.29 | Available | 1 |
| 16 | 46181416 Piston 15,4x35,4x6 | Piston 15,4x35,4x6 | 1 | $16.49 | Available | 1 |
| 17 | S71100000500000 Compression holder 10x48 | Compression holder 10x48 | 1 | $35.85 | Out of Stock | Notify Me |
| 18 | 46811258 Washer 12x24x2,5 | Washer 12x24x2,5 | 1 | $29.14 | Backorder — Restocking | 1 |
| 19 | S624600000S0000 Piston d46 cmpl. | Piston d46 cmpl. | 1 | $48.83 | Available | 1 |
| 20 | 46181194 Rebound disc 12x36x4 h0 | Rebound disc 12x36x4 h0 | 1 | $15.17 | Available | 1 |
| 21 | S614620000S0100 Seal support 46x28 cmpl. | Seal support 46x28 cmpl. | 1 | $83.81 | Backorder — Restocking | 1 |
| 22 | S23902000000000 round-wire snap ring 49x1,75 | round-wire snap ring 49x1,75 | 1 | $28.49 | Available | 1 |
| 23 | S409000004000FA Cover 46.12x6.2 h14.2 | Cover 46.12x6.2 h14.2 | 1 | $86.45 | Available | 1 |
| 24 | S921800000000C1 Rubber pad 18x56x46 black | Rubber pad 18x56x46 black | 1 | $25.19 | Available | 1 |
| 25 | S421800001S0100 Piston rod cmpl. | Piston rod cmpl. | 1 | $521.17 | Available | 1 |
| 98 | 50180751S1 SHOCK ABSORBER FLUID 5 LT | SHOCK ABSORBER FLUID 5 LT | 1 | $175.99 | Available | 1 |
| 99 | RP10053T Repair kit shock absorber | Repair kit shock absorber | — | $150.14 | Backorder — Restocking | 1 |
