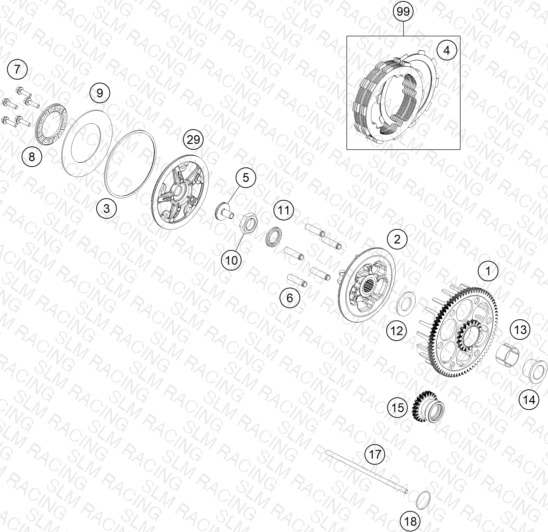

CLUTCH
Parts (19)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 50532001173 clutch basket | clutch basket | 1 | — | Check availability | |
| 2 | 50532002000 Inner clutch hub | Inner clutch hub | 1 | — | Check availability | |
| 3 | 50532013000 Inner ring | Inner ring | 1 | — | Check availability | |
| 4 | 50532011000 Friction plate 1.95 mm | Friction plate 1.95 mm | 7 | — | Check availability | |
| 5 | 78132057144 PRESSURE PIECE CPL. | PRESSURE PIECE CPL. | 1 | — | Check availability | |
| 6 | 50532004100 Sleeve 7.95x31.65 | Sleeve 7.95x31.65 | 5 | — | Check availability | |
| 7 | 0025050206 HH collar screw M5x20 TX30 | HH collar screw M5x20 TX30 | 5 | — | Check availability | |
| 8 | 50532006000 Spring plate | Spring plate | 1 | — | Check availability | |
| 9 | 50532005000 Clutch spring | Clutch spring | 1 | — | Check availability | |
| 10 | 0936181506 Hex nut DIN0936-M18x1.5 right | Hex nut DIN0936-M18x1.5 right | 1 | — | Check availability | |
| 11 | 0252012002900 Wedge lock washer 19.5x29x3.4 | Wedge lock washer 19.5x29x3.4 | 1 | — | Check availability | |
| 12 | 50532017000 Supporting plate 20x36x2.5 | Supporting plate 20x36x2.5 | 1 | — | Check availability | |
| 13 | 0405263017 Needle cage K263017 | Needle cage K263017 | 1 | — | Check availability | |
| 14 | 50532015000 Collar 20x26x19,5 | Collar 20x26x19,5 | 1 | — | Check availability | |
| 15 | A42032023023 Primary gear wheel 23 teeth. | Primary gear wheel 23 teeth. | 1 | — | Check availability | |
| 17 | A42032054000 Push rod | Push rod | 1 | — | Check availability | |
| 18 | 0770300015 O-ring 30x1.5 NBR 70 | O-ring 30x1.5 NBR 70 | 1 | — | Check availability | |
| 29 | 50532003000 Preasure plate | Preasure plate | 1 | — | Check availability | |
| 99 | 50532010033 Clutch disc pack | Clutch disc pack | 1 | — | Check availability |
