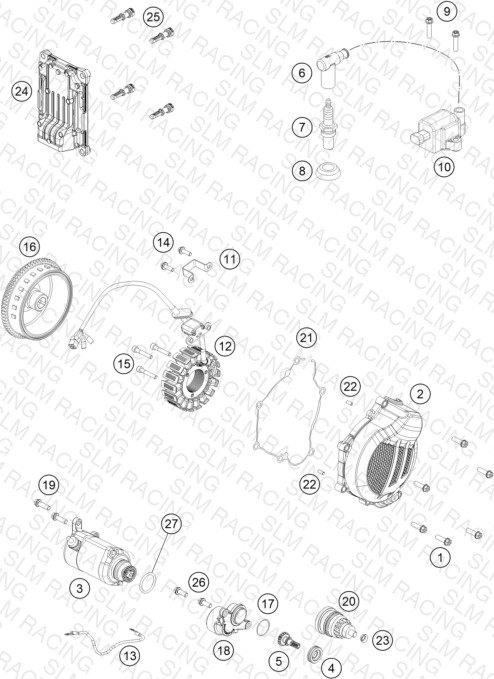

IGNITION SYSTEM
Parts (27)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 6 | 55639007100 Ignition wire | Ignition wire | 1 | — | Check availability | View Details |
| 7 | 51739193000 Spark plug | Spark plug | 1 | — | Check availability | |
| 8 | 51739091000 Sealing boot | Sealing boot | 1 | — | Check availability | |
| 9 | 0025060256 HH collar screw M6x25 TX30 | HH collar screw M6x25 TX30 | 2 | — | Check availability | |
| 10 | 55639006000 Iginition coil | Iginition coil | 1 | — | Check availability | |
| 11 | 50439004010 PICKUP BRACKET | PICKUP BRACKET | 1 | — | Check availability | |
| 12 | 51739104000 Stator | Stator | 1 | — | Check availability | |
| 13 | 51711059000 starter cable | starter cable | 1 | — | Check availability | |
| 14 | 0014050163 HH COLLAR SCREW M 5X16 WS=6 | HH COLLAR SCREW M 5X16 WS=6 | 2 | — | Check availability | |
| 15 | 0912050303 AH SCREW DIN0912-M 5X30 | AH SCREW DIN0912-M 5X30 | 3 | — | Check availability | |
| 16 | 51739105000 Flywheel | Flywheel | 1 | — | Check availability | |
| 2 | 5173010200015 Ignitioncover EXC | Ignitioncover EXC | 1 | — | Check availability | |
| 1 | 0025060256 HH collar screw M6x25 TX30 | HH collar screw M6x25 TX30 | 6 | — | Check availability | |
| 21 | 50430040000 GASKET IGNITION COVER | GASKET IGNITION COVER | 1 | — | Check availability | |
| 22 | 0402040980 Needle roll.DIN5402 NRB 4X9.8 | Needle roll.DIN5402 NRB 4X9.8 | 2 | — | Check availability | |
| 20 | 50440026000 BENDIX | BENDIX | 1 | — | Check availability | |
| 3 | 51740001033 electric starter assy. | electric starter assy. | 1 | — | Check availability | |
| 18 | 51740012033 Console cpl. | Console cpl. | 1 | — | Check availability | |
| 4 | 51740002033 Bushing cmpl. | Bushing cmpl. | 1 | — | Check availability | |
| 23 | 55140030100 COLLAR BUSHING | COLLAR BUSHING | 1 | — | Check availability | |
| 17 | 0770230010 O-ring, 23x1 NBR 70 | O-ring, 23x1 NBR 70 | 1 | — | Check availability | |
| 5 | 51740014000 Twin gear | Twin gear | 1 | — | Check availability | |
| 24 | 55641031000 Control device EFI | Control device EFI | 1 | — | Check availability | |
| 25 | 55641030000 Holder control unit | Holder control unit | 4 | — | Check availability | |
| 26 | 0025060166 HH collar screw M6x16 TX30 | HH collar screw M6x16 TX30 | 2 | — | Check availability | |
| 27 | 0770250030 O-RING 25,00X3,00 NBR 70 | O-RING 25,00X3,00 NBR 70 | 1 | — | Check availability | |
| 19 | 0025060206 HH collar screw M6x20 TX30 | HH collar screw M6x20 TX30 | 2 | — | Check availability |
