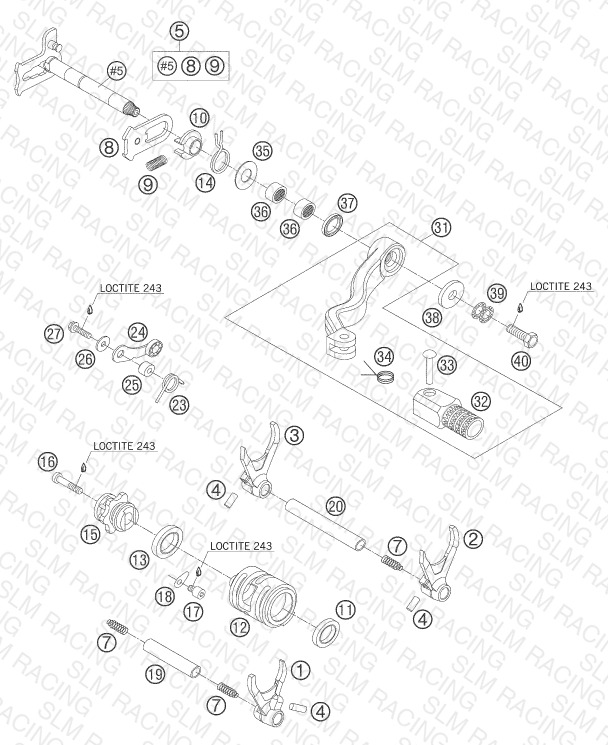

SHIFTING MECHANISM
Parts (34)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 54834001000 SHIFTING FORK 4TH/5TH GEAR 03 | SHIFTING FORK 4TH/5TH GEAR 03 | 1 | $94.04 | Available | 1 |
| 2 | 54834002000 SHIFTING FORK 2ND GEAR 03 | SHIFTING FORK 2ND GEAR 03 | 1 | $92.61 | Available | 1 |
| 3 | 54834003000 SHIFTING FORK 1ST/3RD GEAR 03 | SHIFTING FORK 1ST/3RD GEAR 03 | 1 | $94.04 | Available | 1 |
| 4 | 0402061480 NEEDLE ROLLER DIN5402 6X14,8 | NEEDLE ROLLER DIN5402 6X14,8 | 3 | $4.99 | Available | 3 |
| 5 | 54834005044 SHIFTING SHAFT CPL. 03 | SHIFTING SHAFT CPL. 03 | 1 | $73.38 | Out of Stock | Notify Me |
| 7 | 58038023200 PRESSURE SPRING 0,9MM | PRESSURE SPRING 0,9MM | 3 | $4.99 | Available | 3 |
| 8 | 54634008044 SLIDING PLATE CPL. | SLIDING PLATE CPL. | 1 | $12.31 | Available | 1 |
| 9 | 56534013100 TENSIONING SPRING 0,8MM | TENSIONING SPRING 0,8MM | 1 | $1.99 | Available | 1 |
| 10 | 54634020000 SPRING GUIDE | SPRING GUIDE | 1 | $7.58 | Available | 1 |
| 11 | 0625069034 BALL BEARING 6903 C4 | BALL BEARING 6903 C4 | 1 | $23.97 | Available | 1 |
| 12 | 54834012000 SHIFT ROLLER 03 | SHIFT ROLLER 03 | 1 | $138.37 | Available | 1 |
| 13 | 0625068050 BALL BRG 6805 C4 NTN JAPAN | BALL BRG 6805 C4 NTN JAPAN | 1 | $51.69 | Available | 1 |
| 14 | 54834014000 RETURN SPRING 03 | RETURN SPRING 03 | 1 | $4.99 | Available | 1 |
| 15 | 54834015000 SHIFT LOCATING DRUM 2003 | SHIFT LOCATING DRUM 2003 | 1 | $56.53 | Available | 1 |
| 16 | 0984060302 AH SCREW DIN6912 M 6X30 | AH SCREW DIN6912 M 6X30 | 1 | $1.99 | Available | 1 |
| 17 | 0912060083 AH collar screw DIN 912 M6x8 | AH collar screw DIN 912 M6x8 | 1 | $2.99 | Available | 1 |
| 18 | 54634049000 RETAINING PLATE | RETAINING PLATE | 2 | $4.99 | Available | 2 |
| 19 | 54834019000 SHIFT. RAIL MAIN SHAFT 250/300 | SHIFT. RAIL MAIN SHAFT 250/300 | 1 | $15.06 | Available | 1 |
| 20 | 54834020000 SHIFT. RAIL C. SHAFT 250/300 | SHIFT. RAIL C. SHAFT 250/300 | 1 | $16.16 | Available | 1 |
| 23 | 54834023000 LOCKING LEVER SPRING 03 | LOCKING LEVER SPRING 03 | 1 | $3.99 | Available | 1 |
| 24 | 50334024144 LOCATING LEVER CPL. 08 | LOCATING LEVER CPL. 08 | 1 | $17.15 | Available | 1 |
| 25 | 54634052300 SLEEVE FOR LOCKING LEVER | SLEEVE FOR LOCKING LEVER | 1 | $3.99 | Available | 1 |
| 26 | 0349000050 WASHER DIN7349-5X15X2 | WASHER DIN7349-5X15X2 | 1 | $1.99 | Available | 1 |
| 27 | 0015050203 HH COLLAR SCREW M 5X20 WS=8 | HH COLLAR SCREW M 5X20 WS=8 | 1 | $2.99 | Available | 1 |
| 31 | 54834031000 SHIFT LEVER CPL. 250/300 05 | SHIFT LEVER CPL. 250/300 05 | 1 | $107.35 | Available | 1 |
| 32 | 54634131000 STEP PLATE FOR SHIFT LEVER 250 | STEP PLATE FOR SHIFT LEVER 250 | 1 | $37.17 | Available | 1 |
| 33 | 54634031050 BOLT 6X25 FOR SHIFT LEVER | BOLT 6X25 FOR SHIFT LEVER | 1 | $9.23 | Available | 1 |
| 34 | 54634032100 SHIFTING LEVER SPRING 250 | SHIFTING LEVER SPRING 250 | 1 | $3.99 | Available | 1 |
| 35 | 54634050000 STOP DISK 14X30X1 | STOP DISK 14X30X1 | 1 | $2.99 | Available | 1 |
| 36 | 54632095000 needle sleeve HK 1412 14x20x12 | needle sleeve HK 1412 14x20x12 | 2 | $8.24 | Available | 2 |
| 37 | 0760142460 radial shaft seal 14x24x6 B | radial shaft seal 14x24x6 B | 1 | $10.88 | Available | 1 |
| 38 | 50232050001 STEEL WASHER 6,4X17X3 | STEEL WASHER 6,4X17X3 | 1 | $6.15 | Available | 1 |
| 39 | 50233041000 Pair of washers M6 NORDLOCK | Pair of washers M6 NORDLOCK | 2 | $4.99 | Available | 2 |
| 40 | 0933060165 HH SCREW DIN0933-M 6X16 10.9 | HH SCREW DIN0933-M 6X16 10.9 | 1 | $2.99 | Available | 1 |
