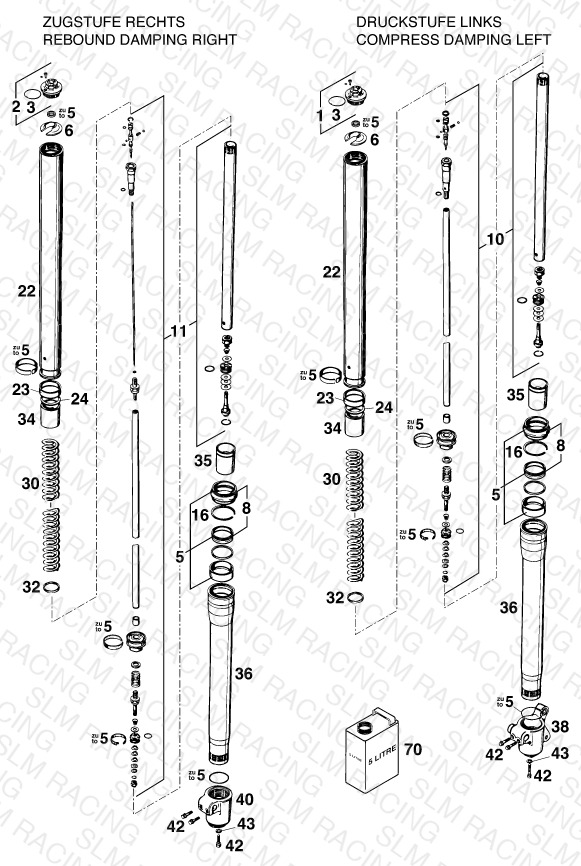

FRONT FORK DISASSEMBLED
Parts (27)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 58301408000 * SCREW CAP CPL.COMPRESS DAMPI | * SCREW CAP CPL.COMPRESS DAMPI | 1 | — | Obsolete | View Details |
| 2 | 58301409000 SCREW CAP CPL. REBOUND DAMPI | SCREW CAP CPL. REBOUND DAMPI | 1 | — | Obsolete | View Details |
| 3 | 0770400020 O-RING 40,00X2,00 FPM 75 | O-RING 40,00X2,00 FPM 75 | 2 | — | Obsolete | View Details |
| 5 | 58301414000 % GASKET SET WITH SLIDING BUSH | % GASKET SET WITH SLIDING BUSH | 1 | — | Obsolete | View Details |
| 6 | 58301423000 SPRING RETAINER WITH SLOT | SPRING RETAINER WITH SLOT | 2 | — | Obsolete | View Details |
| 8 | 58301415000 REPAIR KIT SHAFT SEAL RINGS | REPAIR KIT SHAFT SEAL RINGS | 1 | — | Obsolete | View Details |
| 10 | 54701010000 * CARTR. L/S 250-380 MXC,EXC,E | * CARTR. L/S 250-380 MXC,EXC,E | 1 | — | Obsolete | View Details |
| 10 | 54701010100 * CARTRIDGE L/S 250-380 SX | * CARTRIDGE L/S 250-380 SX | 1 | — | Obsolete | View Details |
| 11 | 54701011000 % CARTR. R/S 250-380 MXC,EXC,E | % CARTR. R/S 250-380 MXC,EXC,E | 1 | — | Obsolete | View Details |
| 11 | 54701011100 * CARTRIDGE R/S 250-380 SX | * CARTRIDGE R/S 250-380 SX | 1 | — | Obsolete | View Details |
| 16 | 58301429000 % CIRCLIP D=50MM | % CIRCLIP D=50MM | 2 | — | Obsolete | View Details |
| 22 | 54701003000 % FORK TUBE D=50MM/L=668MM ' | % FORK TUBE D=50MM/L=668MM ' | 2 | — | Obsolete | View Details |
| 23 | 54701020000 * RING 47,5X8 | * RING 47,5X8 | 2 | — | Obsolete | View Details |
| 24 | 58301419000 WASHER 32X45X2 | WASHER 32X45X2 | 2 | — | Obsolete | View Details |
| 30 | 54701021038 * SPRING 3,8 N/MM SET | * SPRING 3,8 N/MM SET | — | — | Obsolete | View Details |
| 30 | 54701021040 SPRING 4,0 N/MM SET | SPRING 4,0 N/MM SET | — | — | Obsolete | View Details |
| 30 | 54701021042 % SPRING 4,2 N/MM SET | % SPRING 4,2 N/MM SET | — | — | Obsolete | View Details |
| 30 | 54701021044 * SPRING 4,4 N/MM SET | * SPRING 4,4 N/MM SET | 2 | — | Obsolete | View Details |
| 32 | 54701016000 RING 35X41,5X2,5 | RING 35X41,5X2,5 | 2 | — | Obsolete | View Details |
| 34 | 54701022000 BUSHING 44,5X35X80 | BUSHING 44,5X35X80 | 2 | — | Obsolete | View Details |
| 35 | 54701018000 % SLIDING BUSH HYDRO-STOP L=73 | % SLIDING BUSH HYDRO-STOP L=73 | 2 | — | Obsolete | View Details |
| 36 | 54701004000 % OUTER TUBE L=439MM | % OUTER TUBE L=439MM | 2 | — | Obsolete | View Details |
| 38 | 54701006000 % AXLE CLAMP L/S EXTREME M8 ' | % AXLE CLAMP L/S EXTREME M8 ' | 1 | — | Obsolete | View Details |
| 40 | 54701007000 % AXLE CLAMP R/S EXTREME M8 ' | % AXLE CLAMP R/S EXTREME M8 ' | 1 | — | Obsolete | View Details |
| 42 | 0015080203 HH COLLAR SCREW M 8X20 WS=10 | HH COLLAR SCREW M 8X20 WS=10 | 4 | $2.99 | Available | 4 |
| 43 | 54501081000 SEAL RING 8X12X1,5 | SEAL RING 8X12X1,5 | 2 | — | Obsolete | View Details |
| 70 | 306007 FORK OIL SAE5 5 LITER | FORK OIL SAE5 5 LITER | 1 | — | Obsolete | View Details |
